Air Spring Solenoid Valve

Air Spring Solenoid Valve





Special Tool(s)

Removal and Installation
1. If the air spring solenoid valve is functional, use the scan tool to vent the appropriate air springs).
2. Raise and support the vehicle.

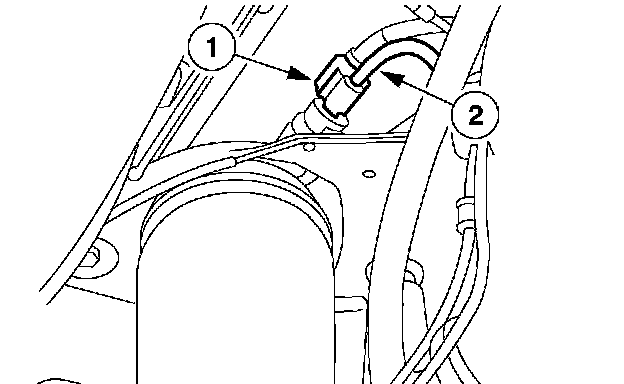

3. Disconnect the electrical connector and the air line.
1 Disconnect the electrical connector.
2 Compress the quick connect lock ring and pull out on the air line.

4. CAUTION: Remove any dirt or other foreign material from the air spring assembly prior to removing the air spring solenoid valve from the air spring assembly.





Remove the air spring solenoid clip.

5. WARNING: The air spring solenoid valve has a two stage release. When removing a non-functional solenoid and the air spring is inflated, carefully rotate the solenoid counterclockwise until it reaches the first stage to release the air from the air spring. Turn the solenoid to the second stage to remove the solenoid. Failure to follow these instructions when removing a non-functional air spring solenoid can cause personal injury or damage to components as high pressure air is vented uncontrolled.

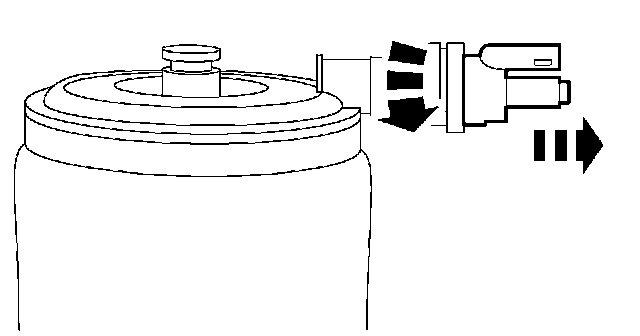

Rotate the air spring solenoid and remove the solenoid.

6. NOTE: Inspect the O-ring for damage and install a new O-ring as necessary. Lubricate the solenoid seal area with silicone grease.

NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.

To install, reverse the removal procedure.
