Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

PINPOINT TEST E: MULTIFUNCTION SWITCH DOES NOT OPERATE CORRECTLY

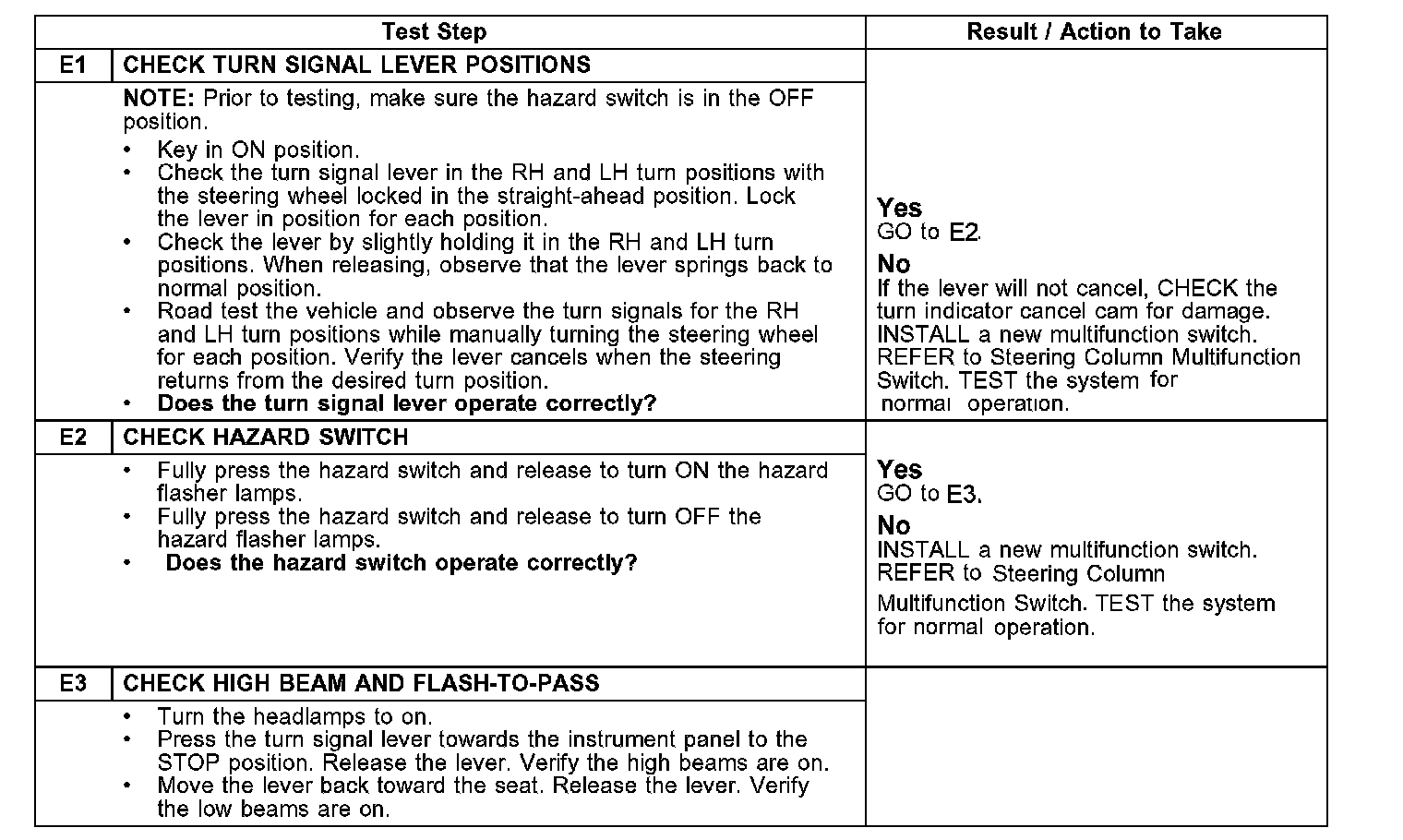

Test E1-E3:

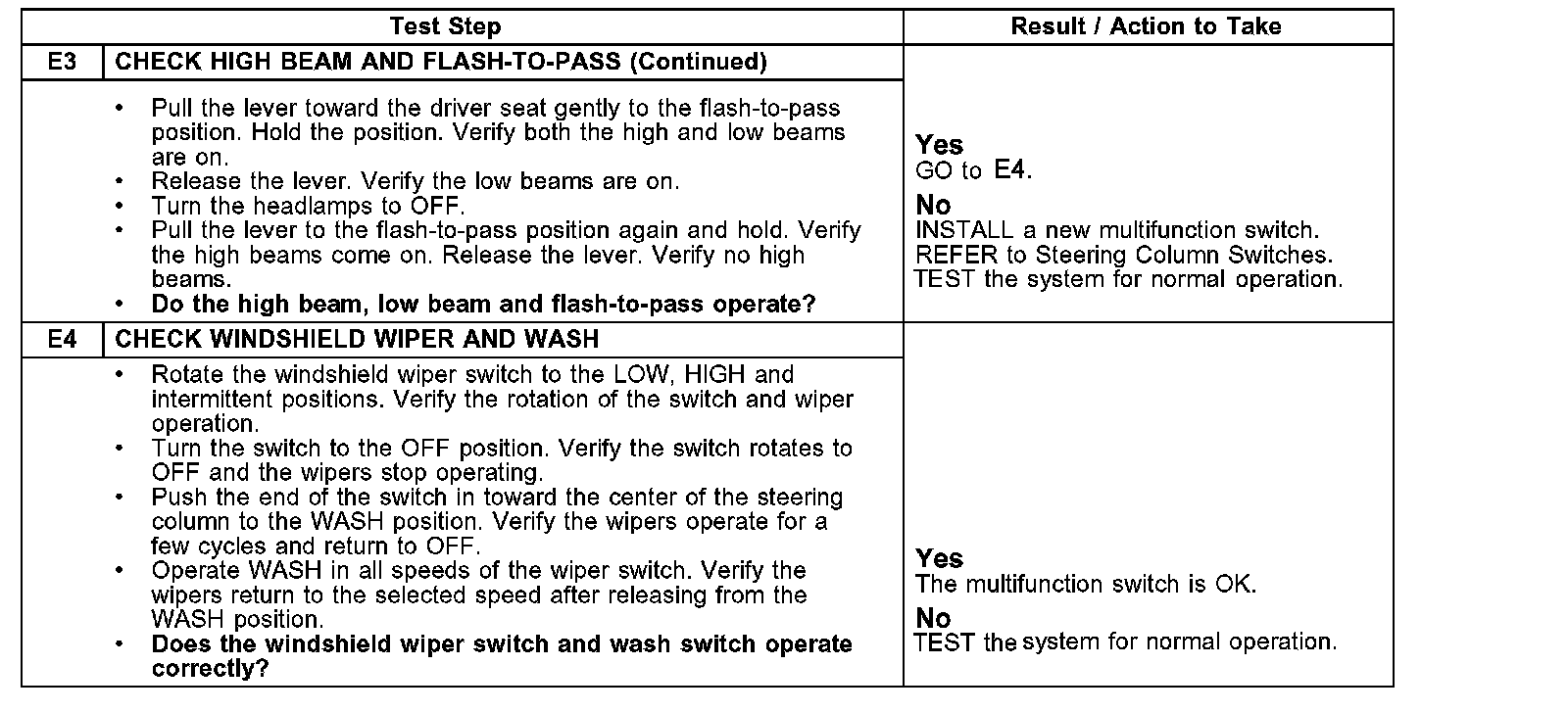

Test E3-E4:
