Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Test B

Test B

PINPOINT TEST B: UNUSUAL STARTER NOISE

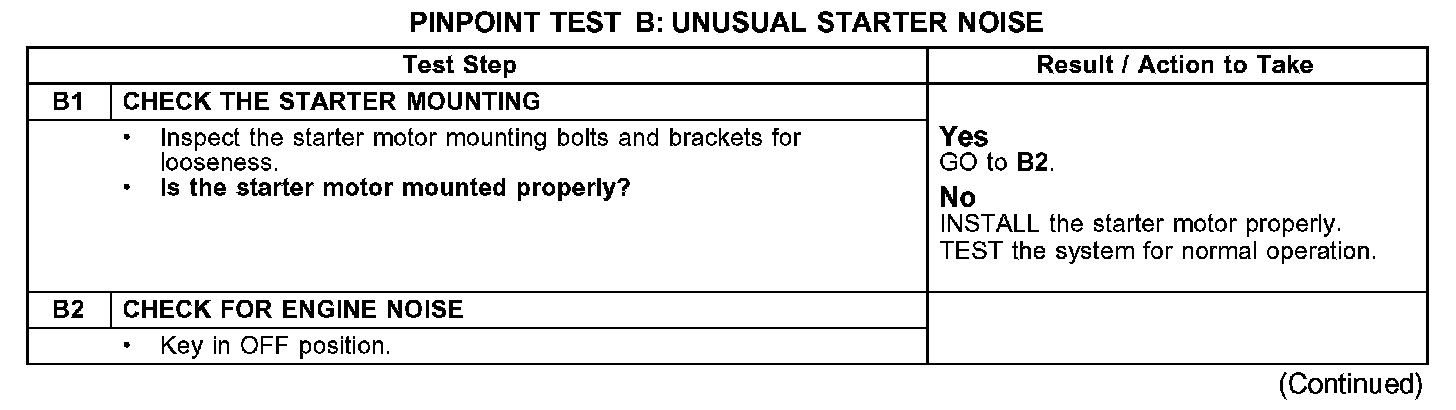

Test B1-B2:

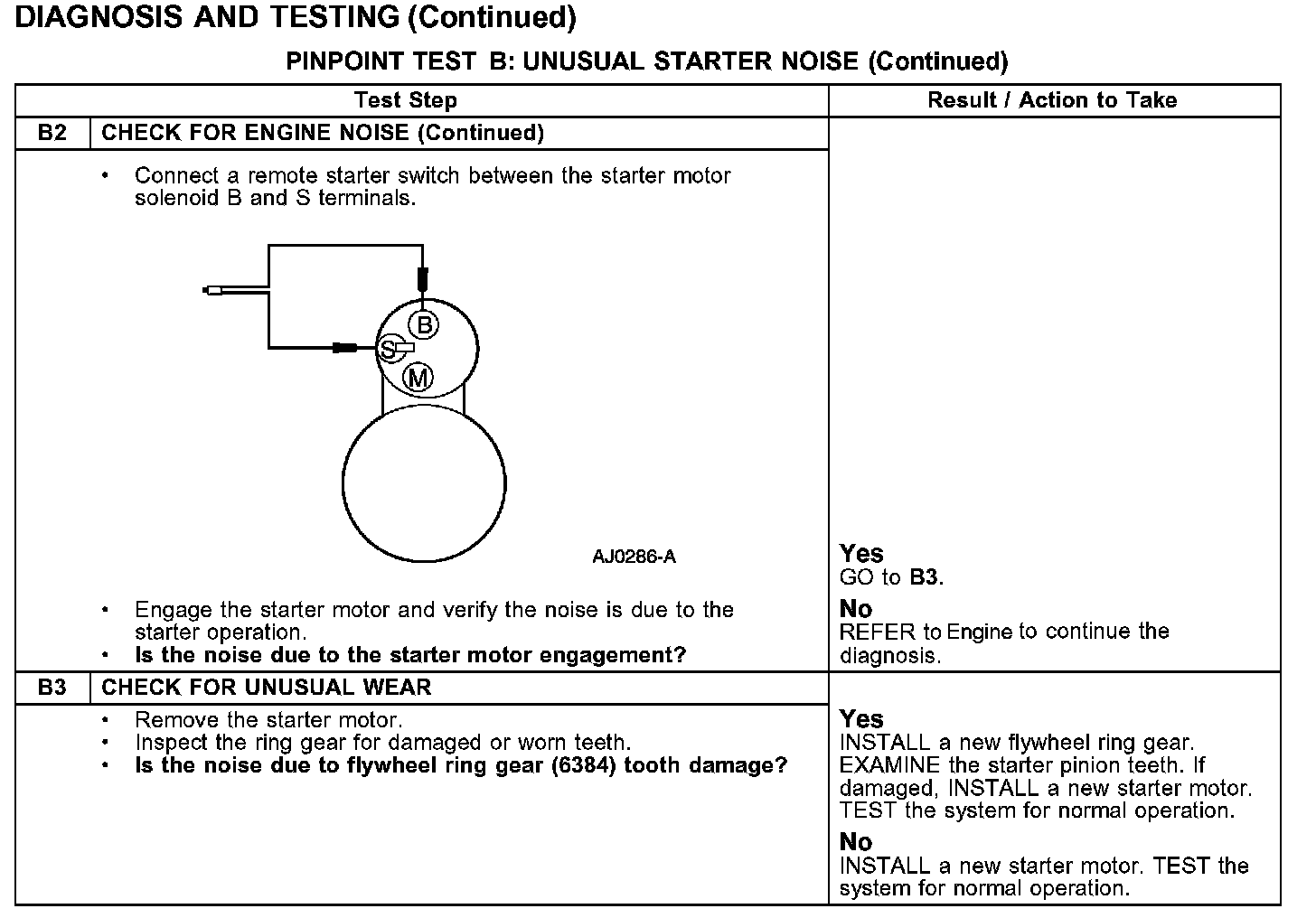

Test B2-B3:
