Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE ENGINE DOES NOT CRANK


Test A1-A2:

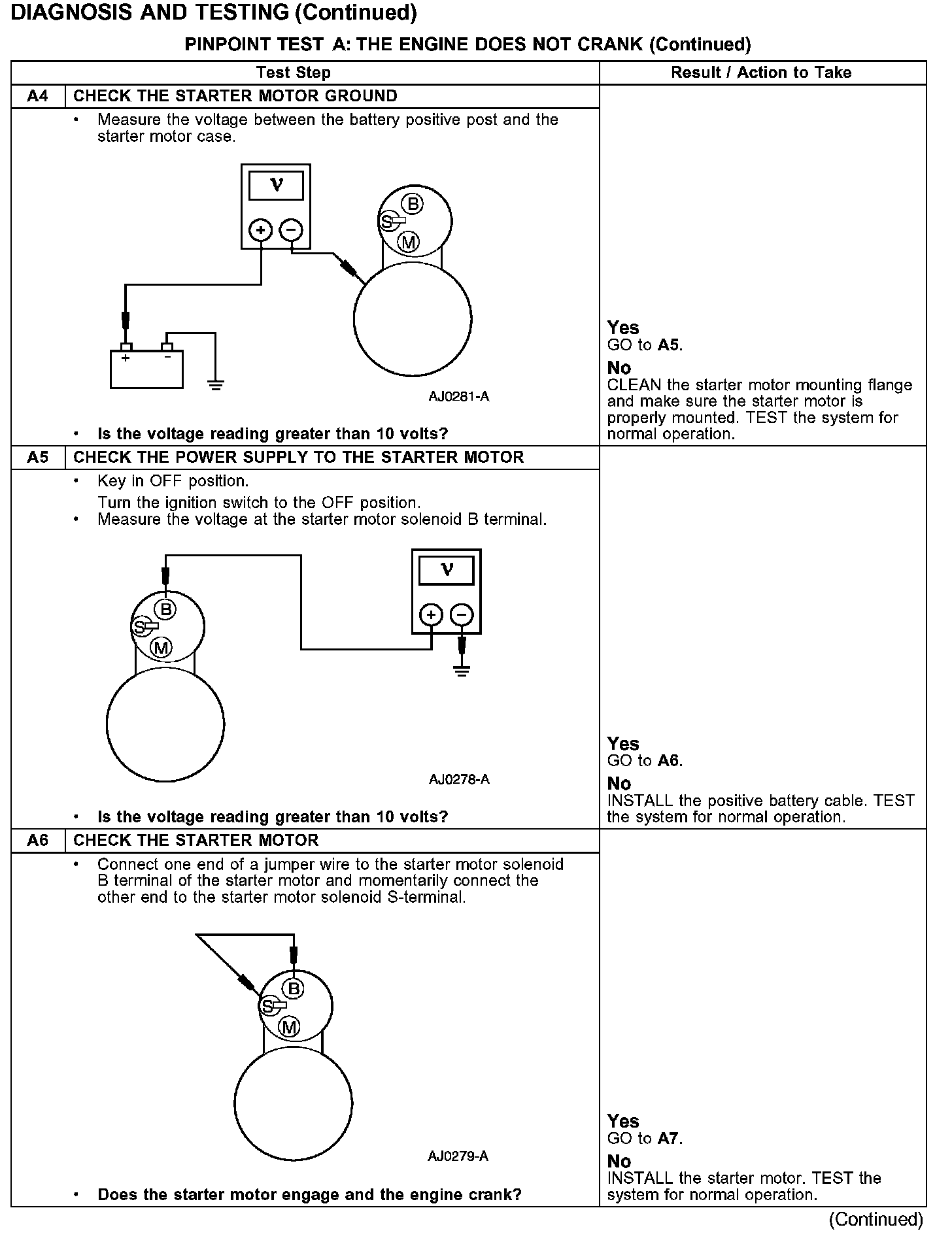

Test A4-A6:

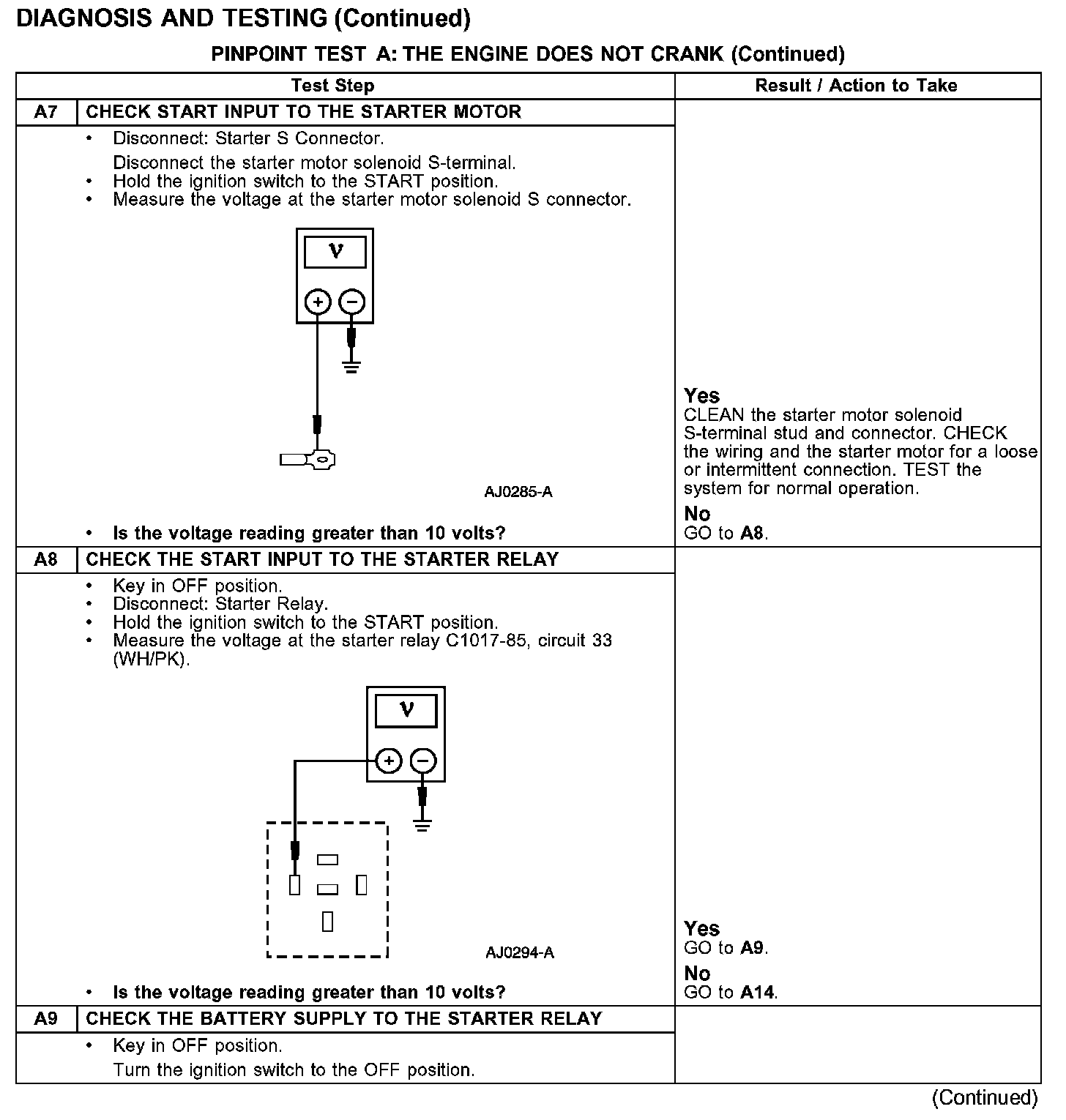

Test A7-A9:

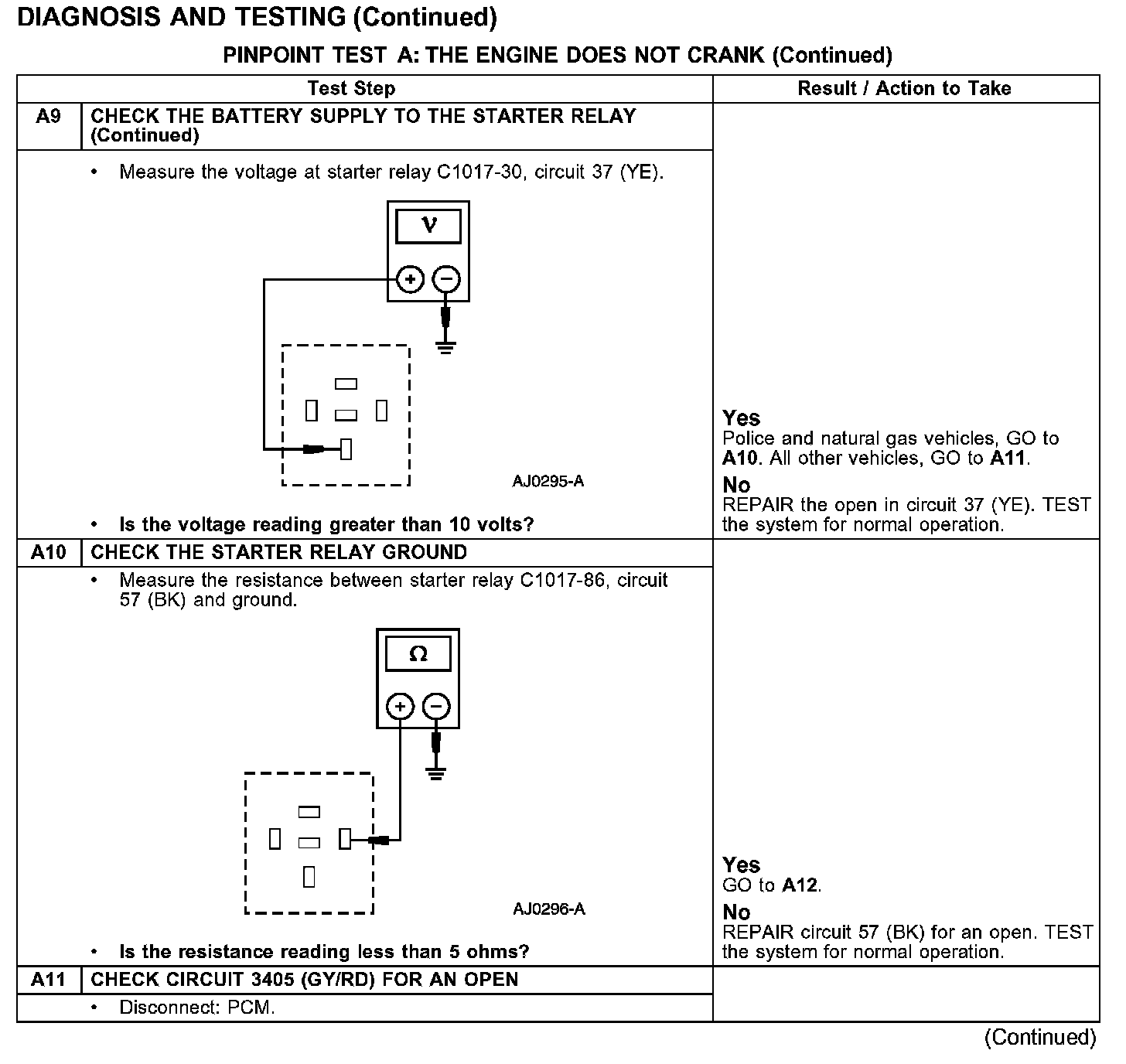

Test A9-A11:

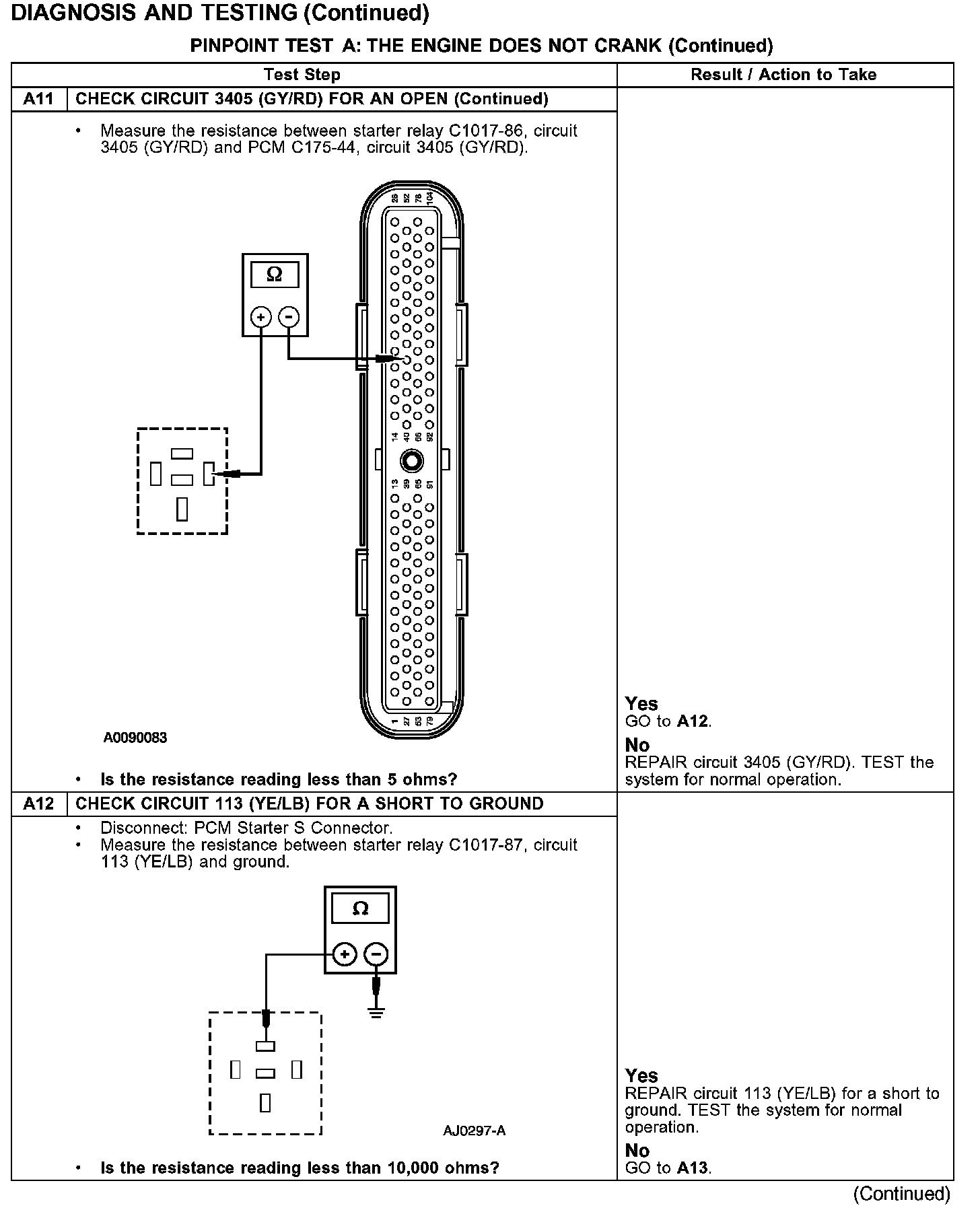

Test A11-A12:

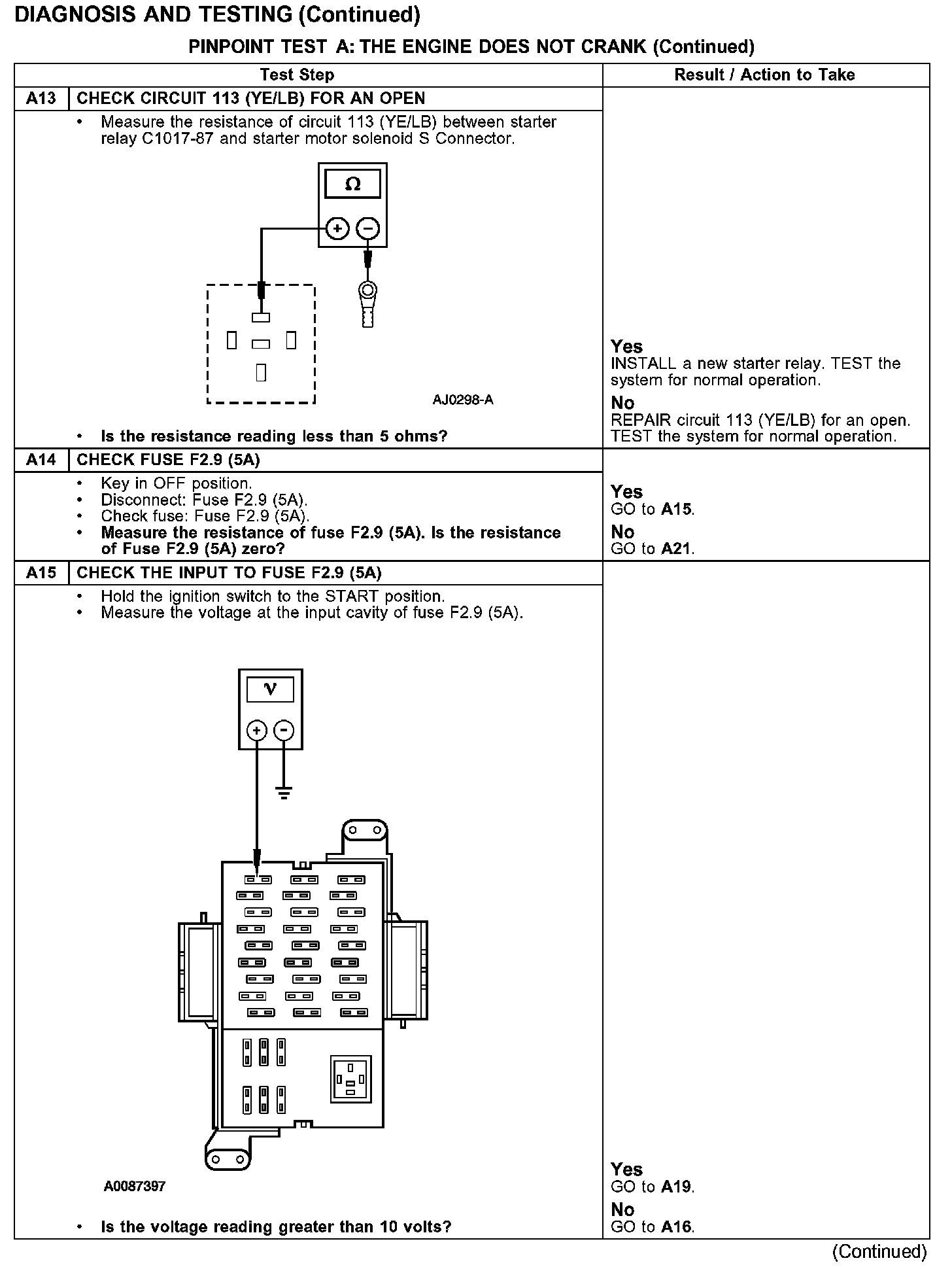

Test A13-A15:

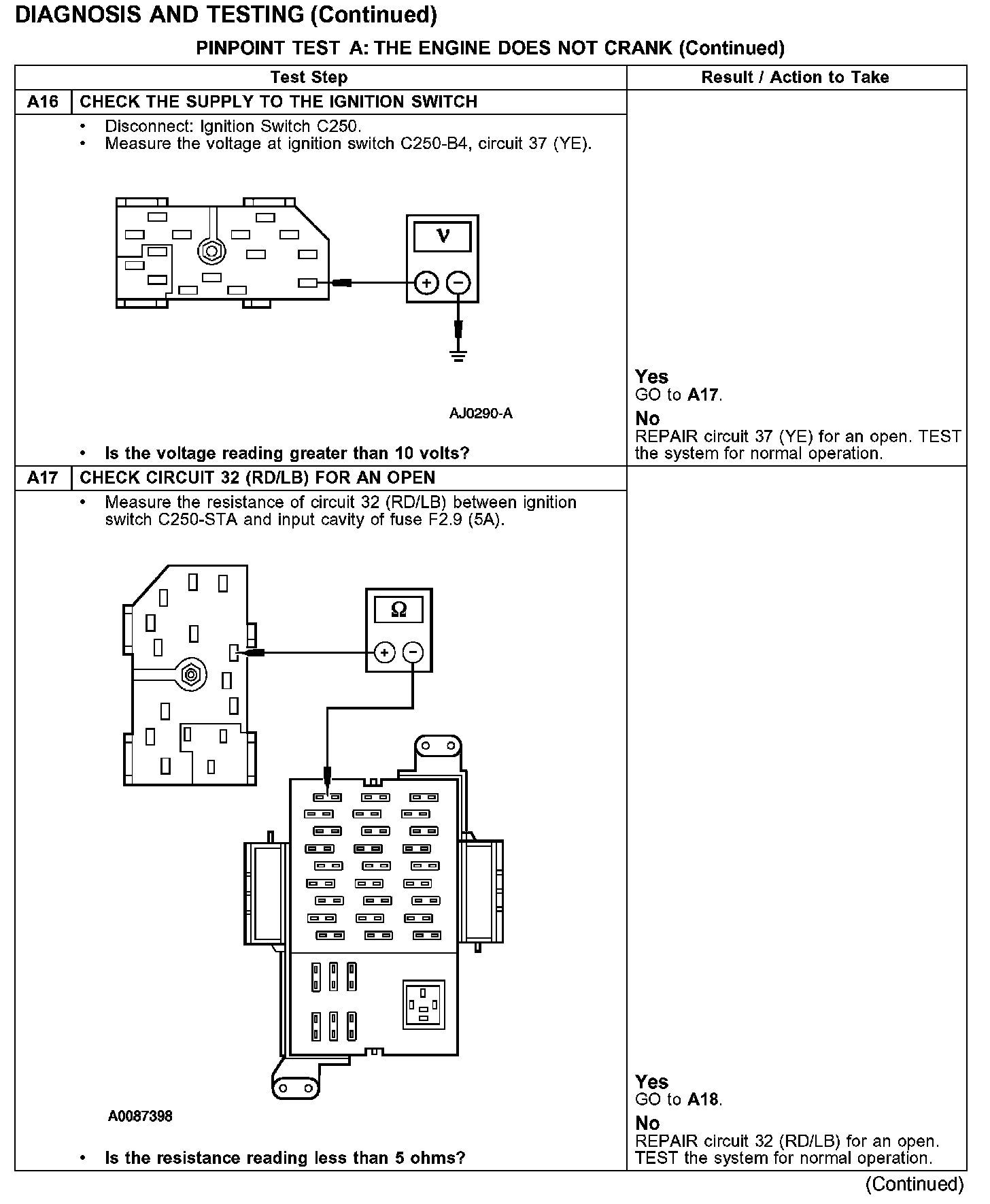

Test A16-A17:

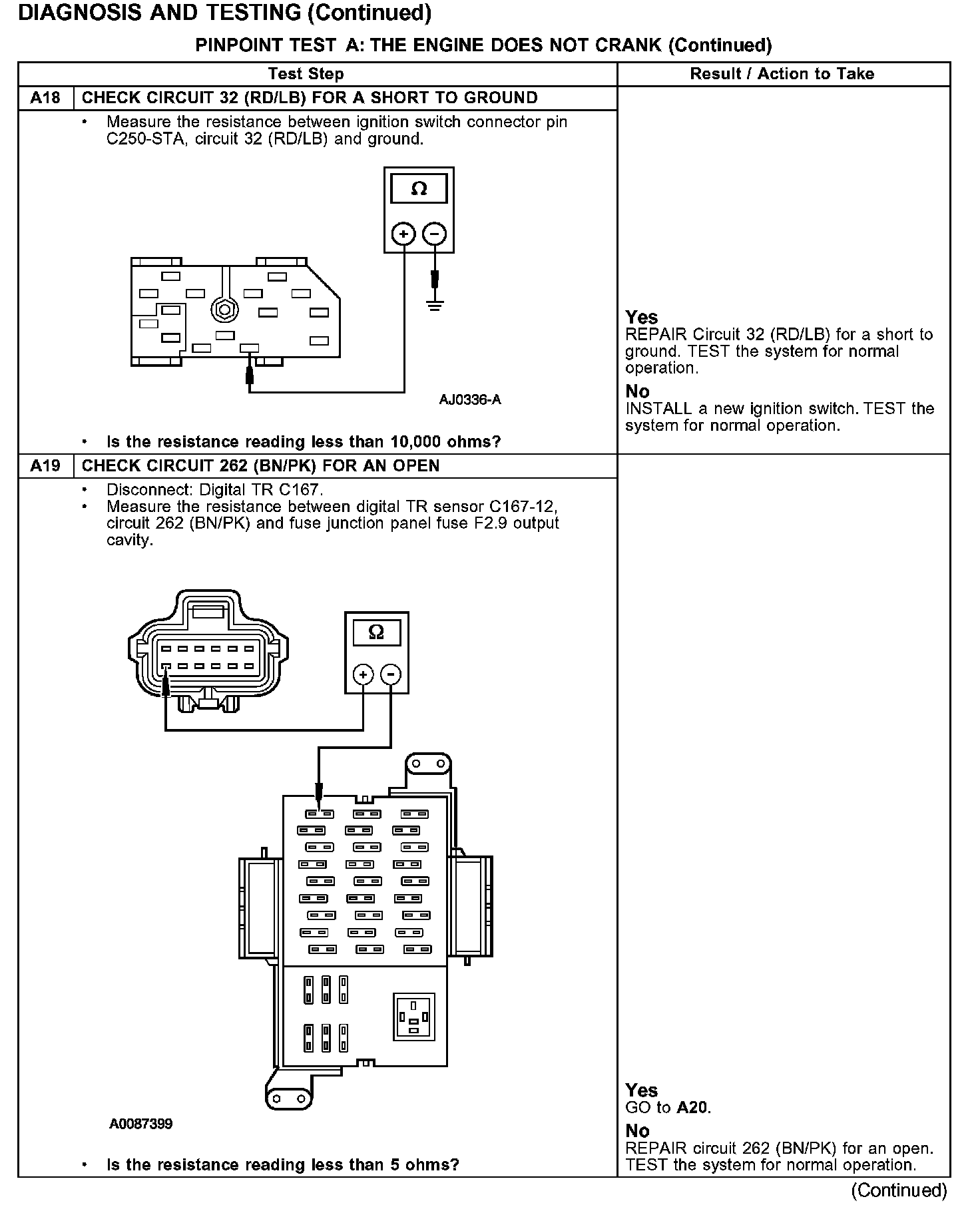

Test A18-A19:

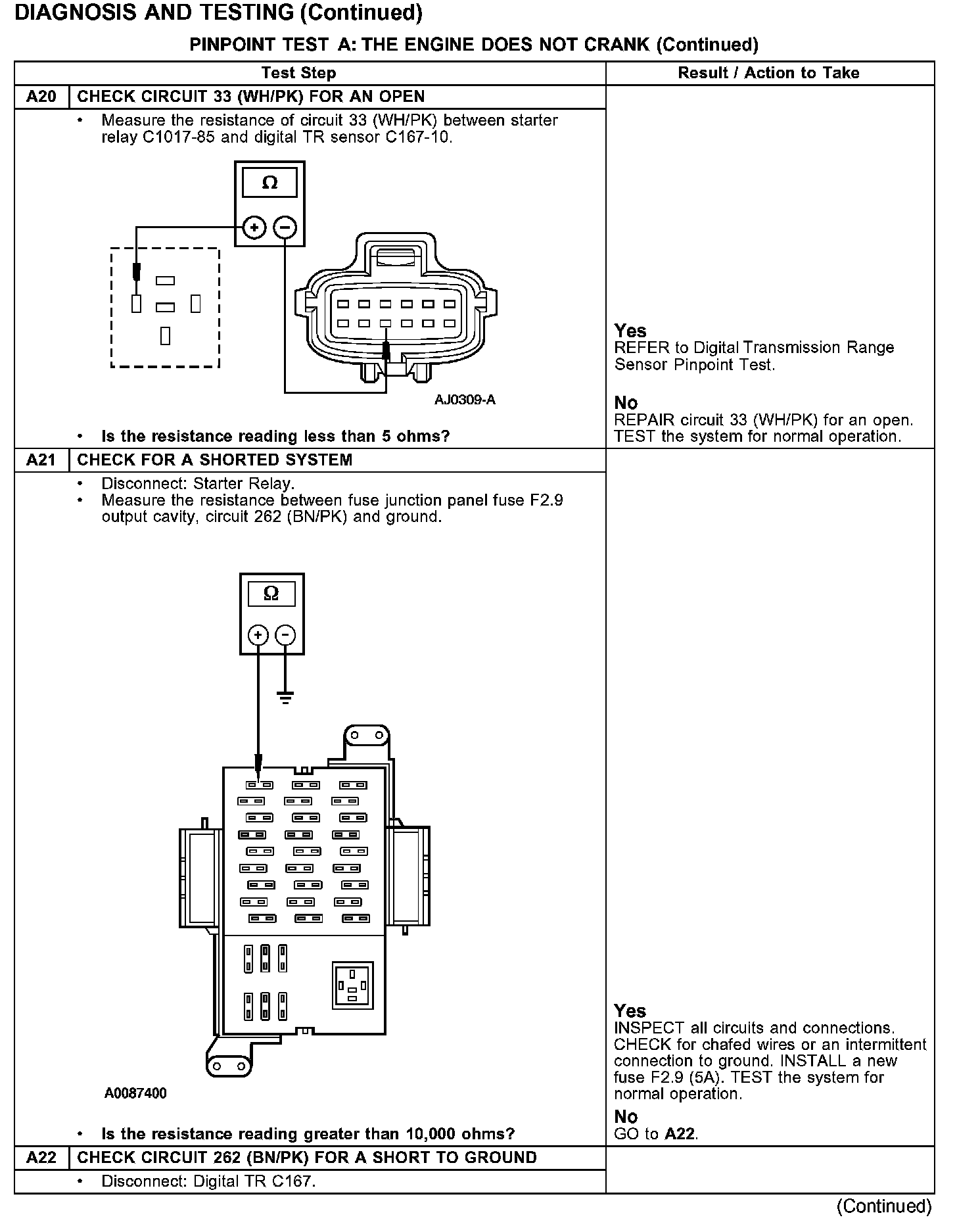

Test A20-A22:

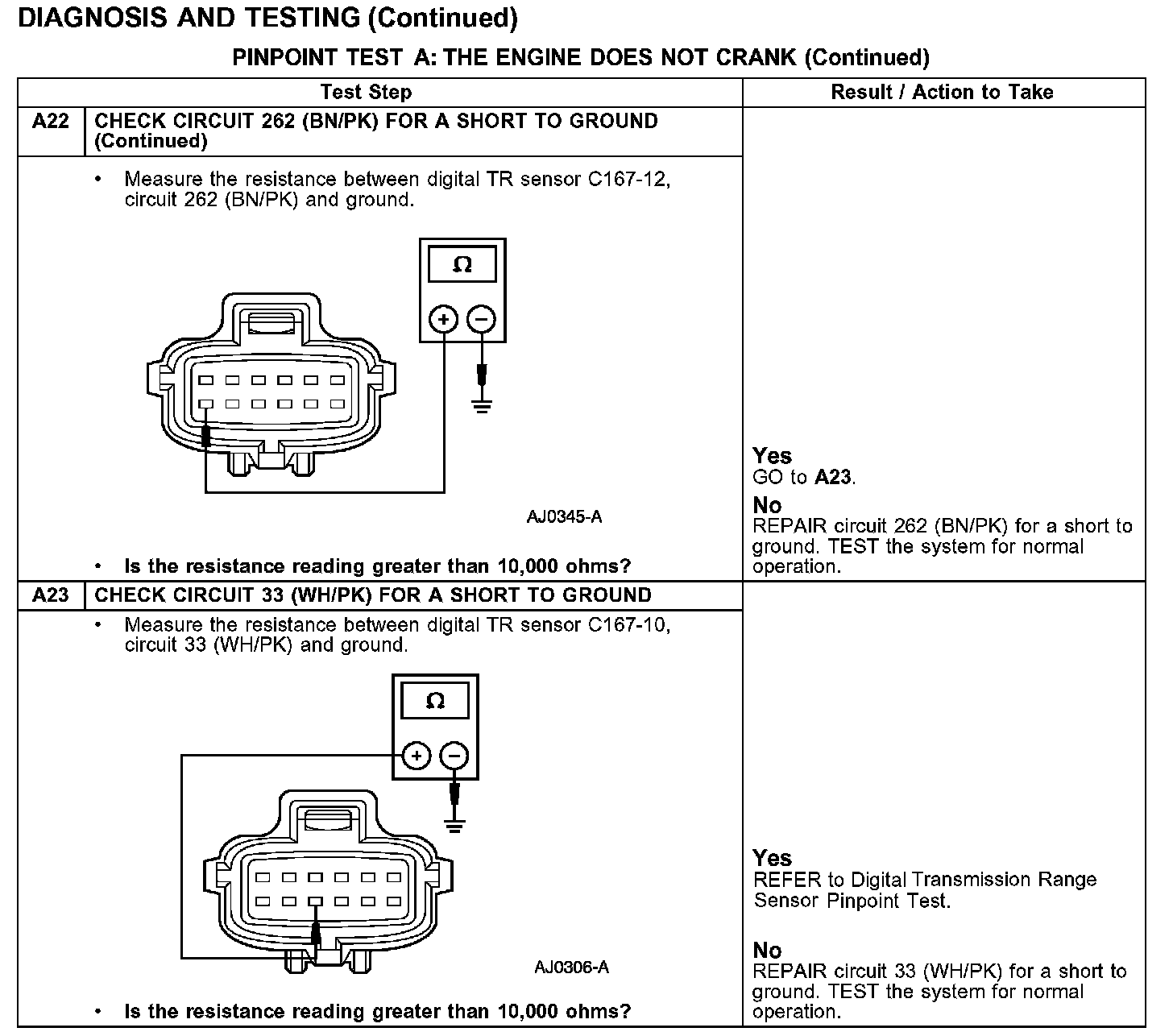

Test A22-A23:
