Alternator: Service and Repair

GENERATOR

REMOVAL
1. Disconnect the battery.

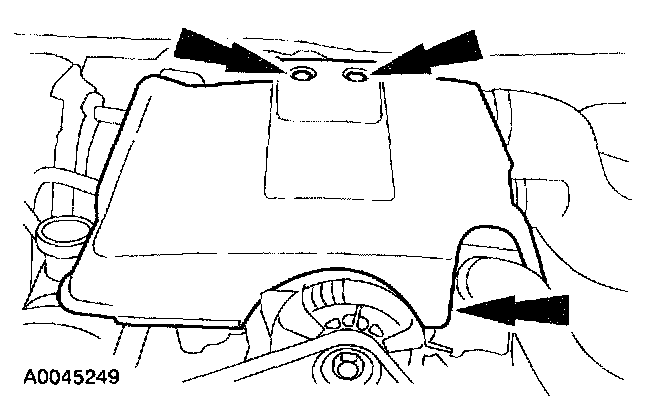

2. Remove the screws and the engine cover.

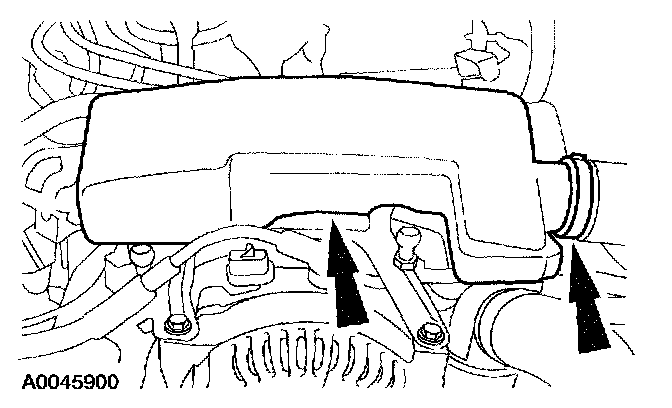

3. Loosen the clamp and remove the intake induction resonator.
4. Release the tension and remove the accessory drive belt from the generator pulley.

Vehicles with 130 Amp generator

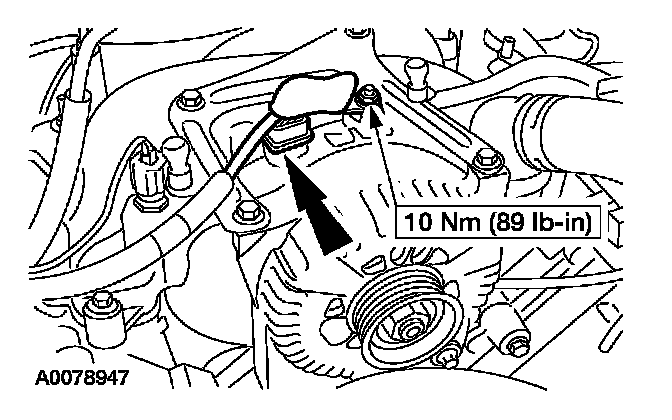

5. Remove the nut and disconnect the generator electrical connectors.
- Position the cover aside.

Vehicles with 200 Amp generator

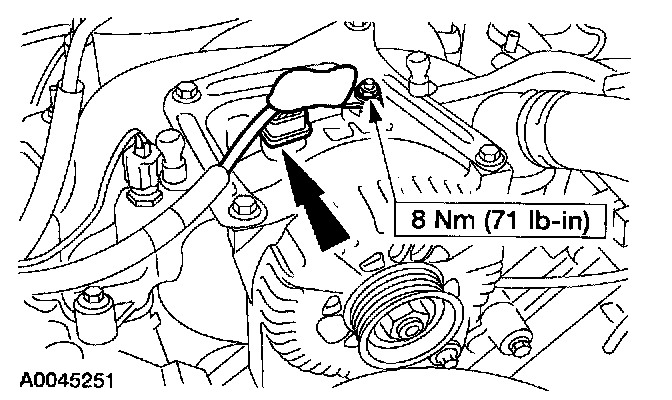

6. Remove the nut and disconnect the generator electrical connectors.
- Position the cover aside.

All vehicles

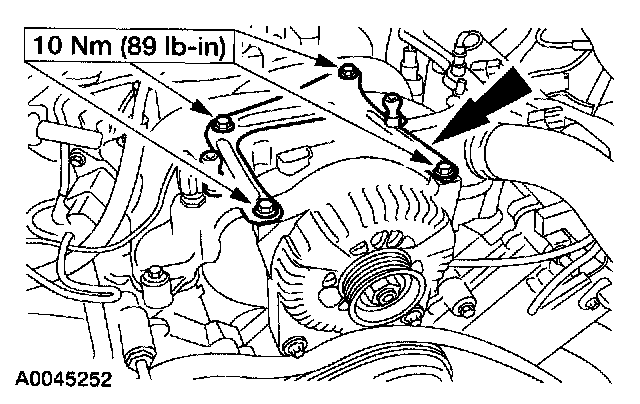

7. Remove the bolts and the generator bracket.

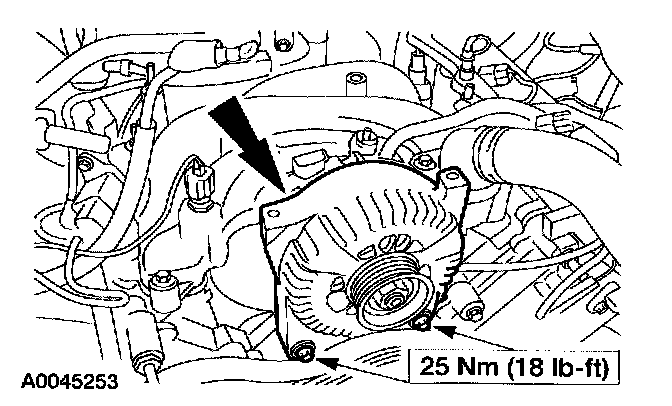

8. Loosen the bolts and remove the generator.

INSTALLATION
1. To install, reverse the removal procedure.
