System Specifications

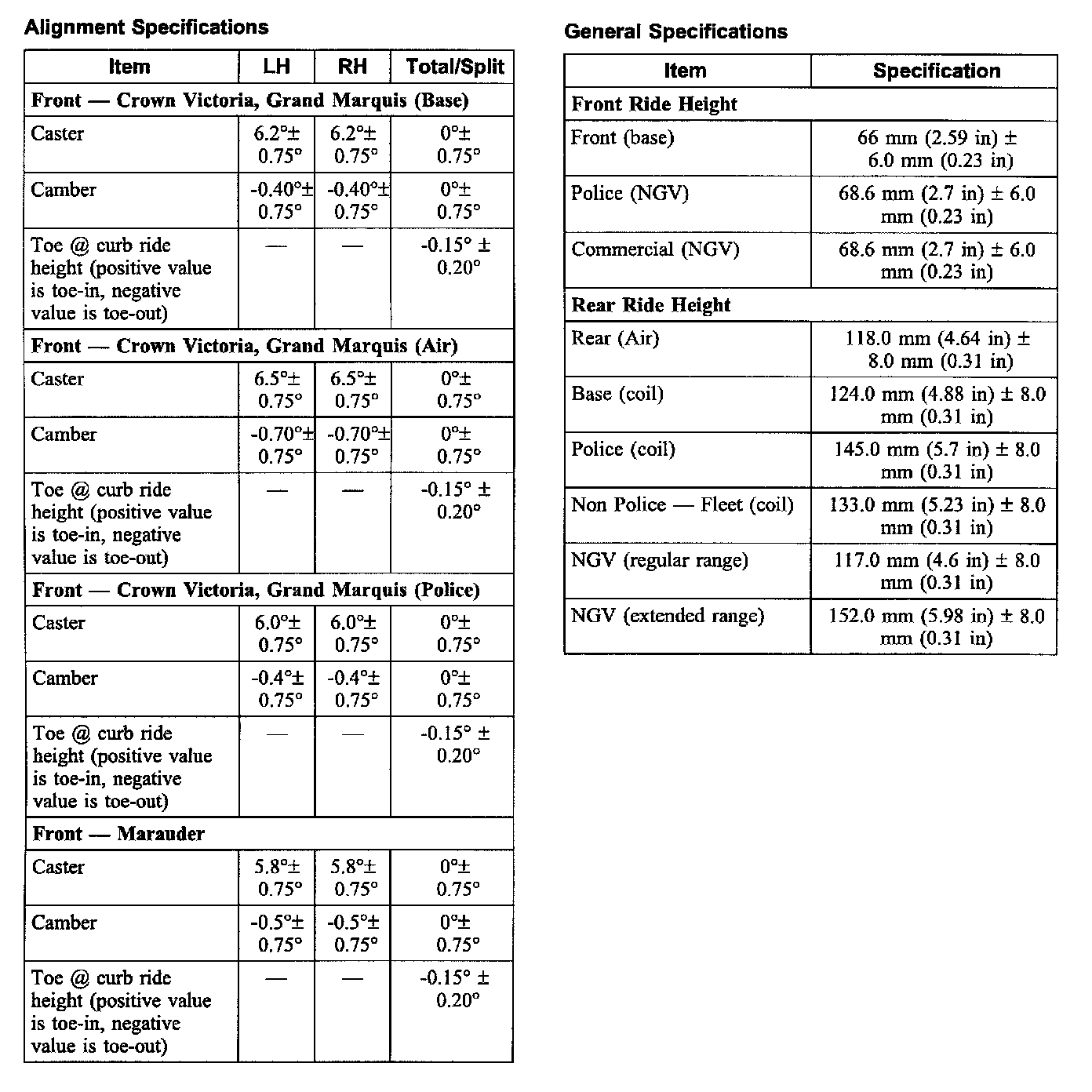

Alignment Specifications

Alignment Specifications:

Torque Specifications
Cam Bolt Nuts 225 Nm (166 ft lbs)
Rearward Control Arm Bushing-to-Control Arm Nut
(21 mm socket) 175 Nm (129 ft lbs)
(24 mm socket) 200 Nm (148 ft lbs)
Tie Rod Jam Nut 55 Nm (41 ft lbs)
