Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Instrument Panel, Gauges and Warning Indicators

Instrument Panel, Gauges and Warning Indicators

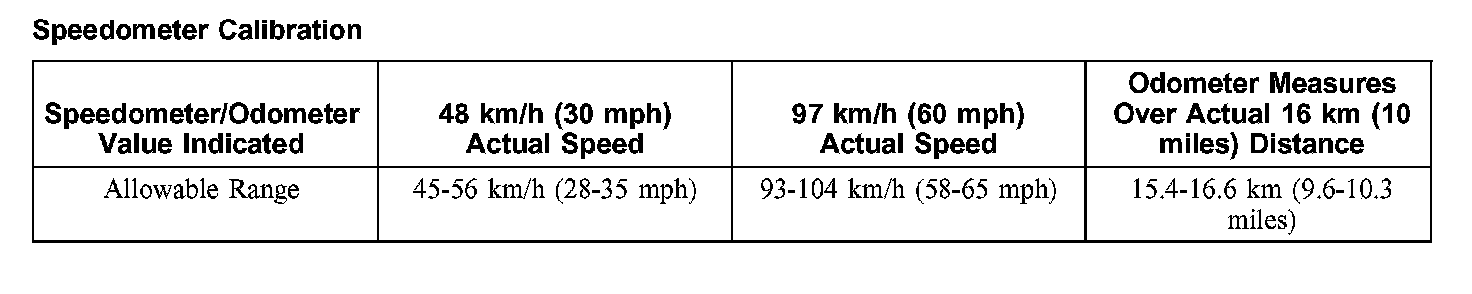

Speedometer Calibration:

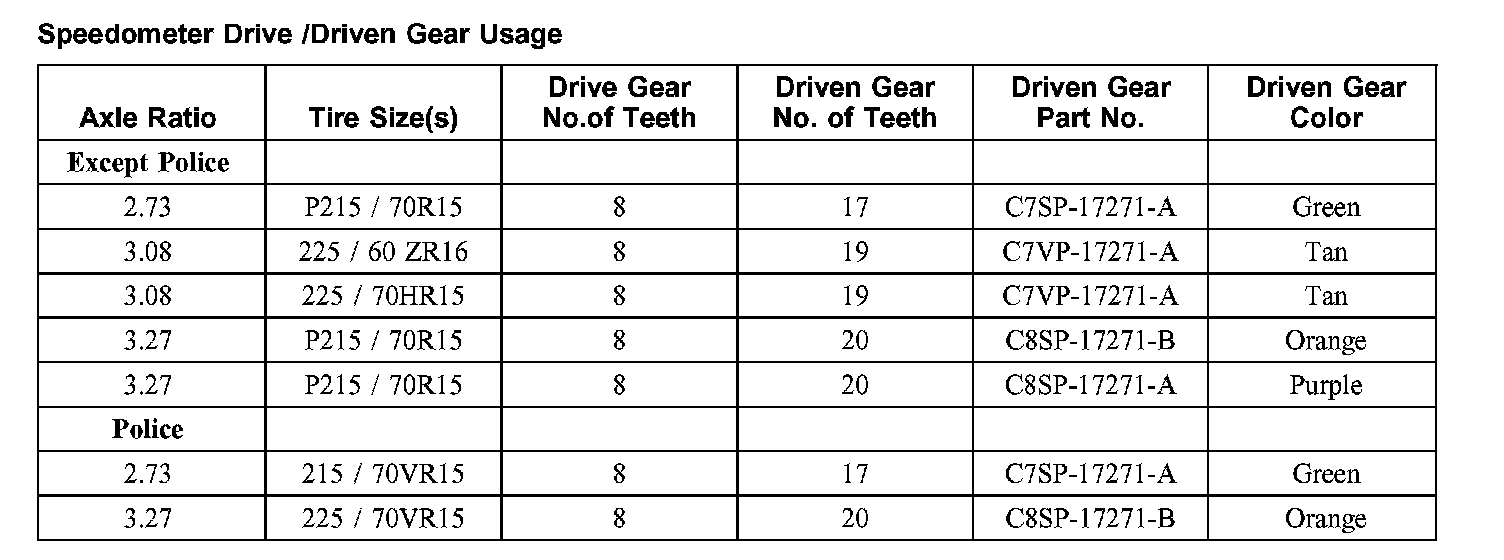

Speedometer Drive/Driven Gear Usage:

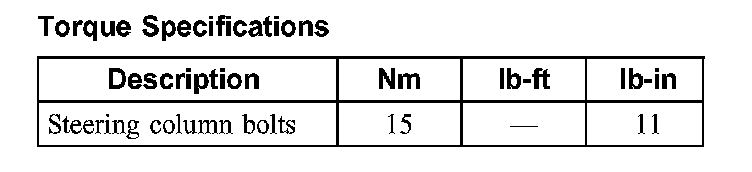

Torque Specifications:
