Clutch Plate Usage and Clearance Specifications

Clutch Plate Usage and Clearance Specifications

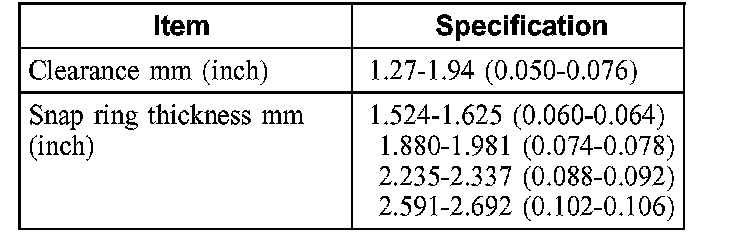

Forward Clutch Pack

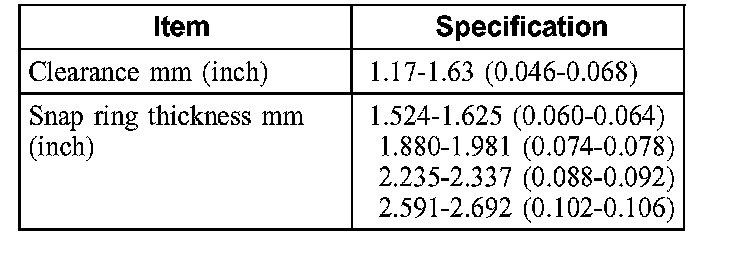

Reverse Clutch Pack

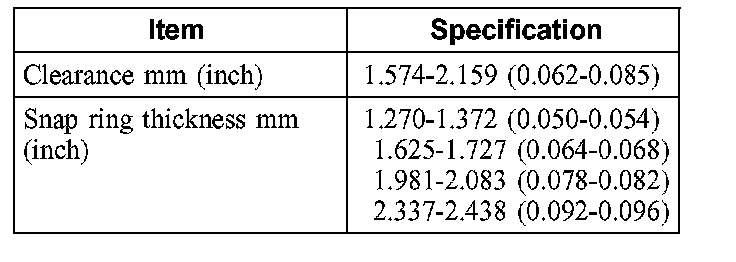

Direct Clutch Pack





Intermediate Clutch Pack
