Transmission Speed Sensor: Service and Repair

Output Shaft Speed (OSS) Sensor

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

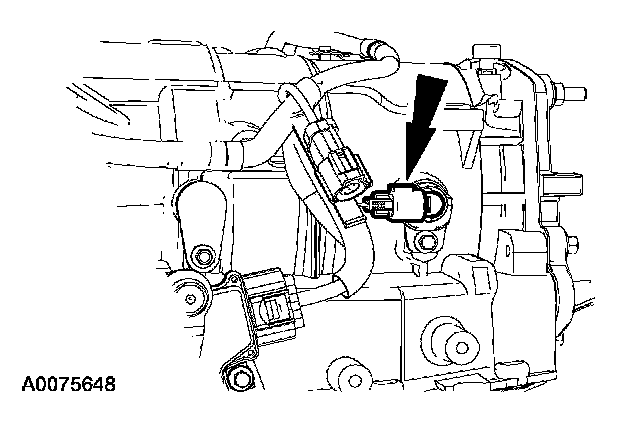

2. Disconnect the Output Shaft Speed (OSS) sensor electrical connector.





3. Remove the OSS sensor bolt and the sensor

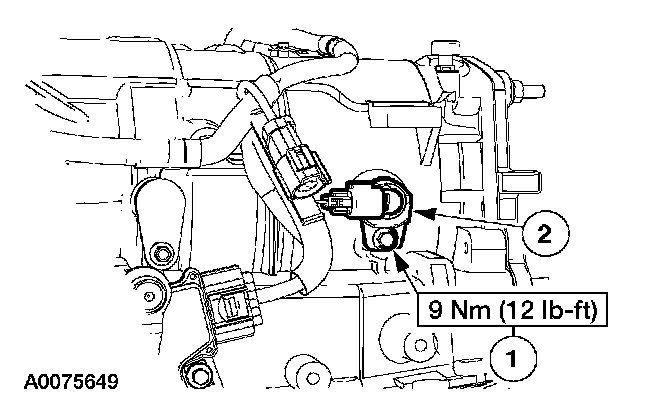

1 Remove the OSS sensor bolt.
2 Remove the OSS sensor.
4. To install, reverse the removal procedure.
