Ignition Switch: Service and Repair

Ignition Switch

Removal and Installation
1. Disconnect the battery ground cable.

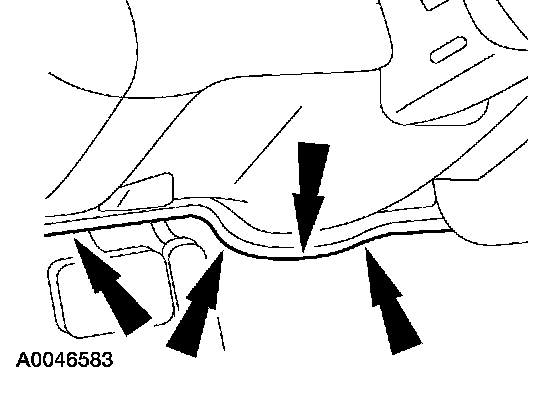

2. Position the LH instrument panel insulator aside.
^ Remove the three pin-type retainers.

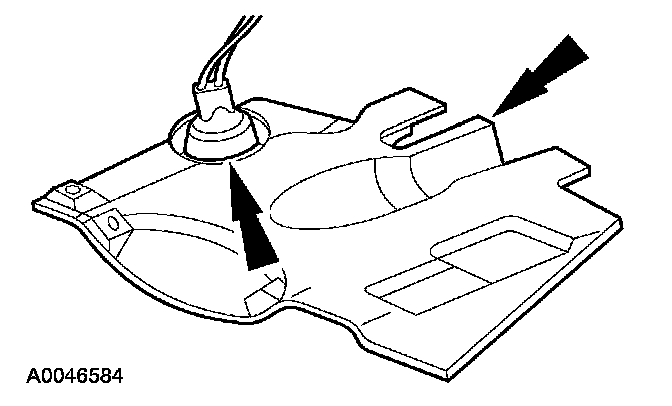

3. Remove the LH instrument panel insulator.
^ Disconnect the courtesy lamp.

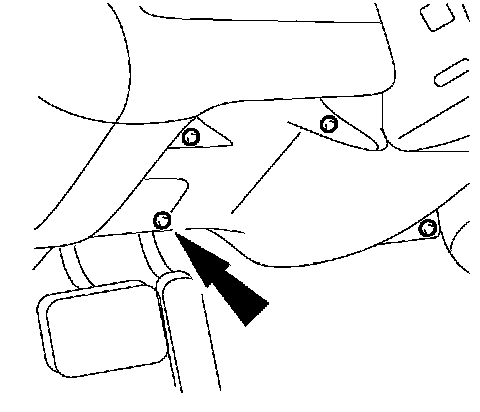

4. Remove the lower instrument panel steering column opening cover.
^ Remove the screws.
^ Unhook the parking brake release handle and position aside.





5. Remove the bolts and the instrument panel steering column opening cover reinforcement.

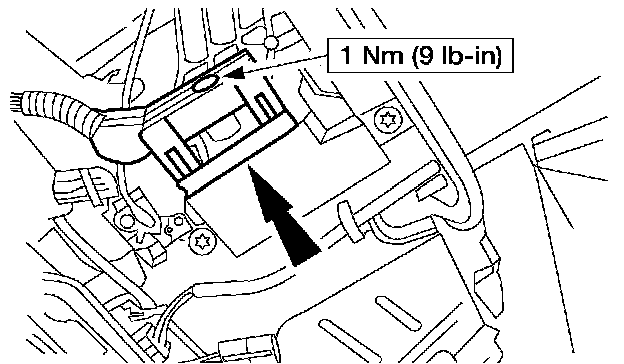

6. Disconnect the ignition switch electrical connector.
^ Loosen the bolt.

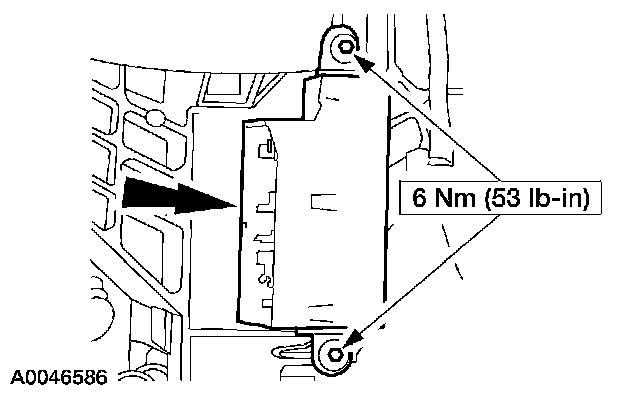

7. NOTE: The ignition key should be in the OFF position.





Remove the ignition switch.
^ Remove the bolts.
8. To install, reverse the removal procedure.
