Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

REMOVAL
1. Open the luggage compartment door.

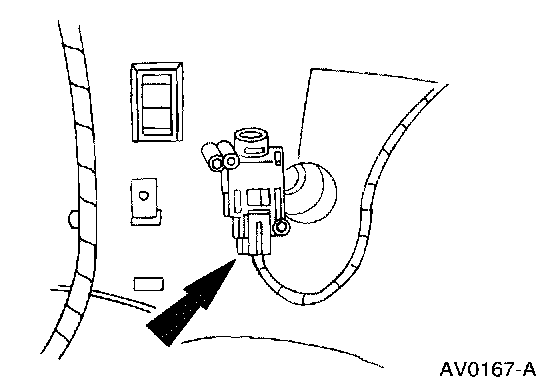

2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.

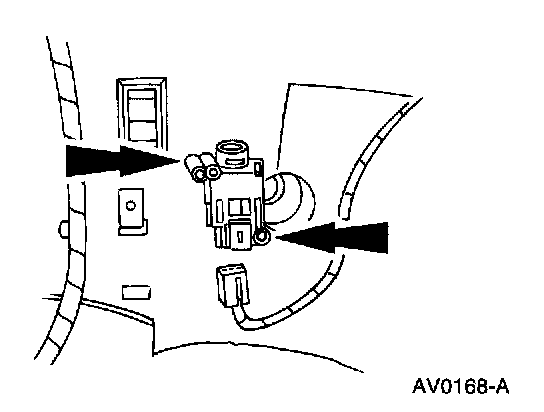

3. Remove the screws and the IFS switch.

INSTALLATION
1. To install, reverse the remove procedure.
