Door Switch: Service and Repair

DOOR AJAR SWITCH

REMOVAL
1. Remove the front or rear door trim panel.

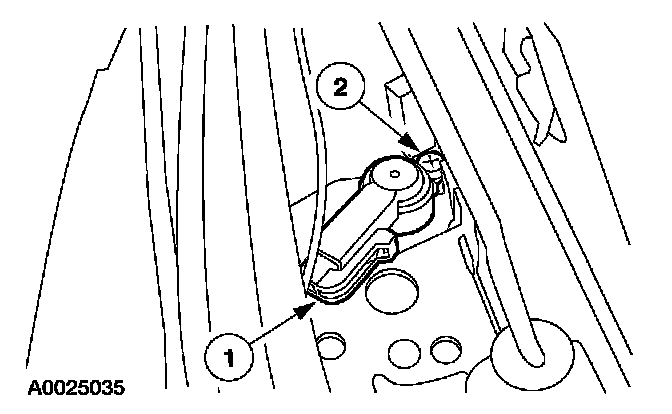

2. Remove the door ajar switch.
1 Disconnect the electrical connector.
2 Remove the screw.

INSTALLATION
1. To install, reverse the removal procedure.
