Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE TEMPERATURE SENSOR

REMOVAL

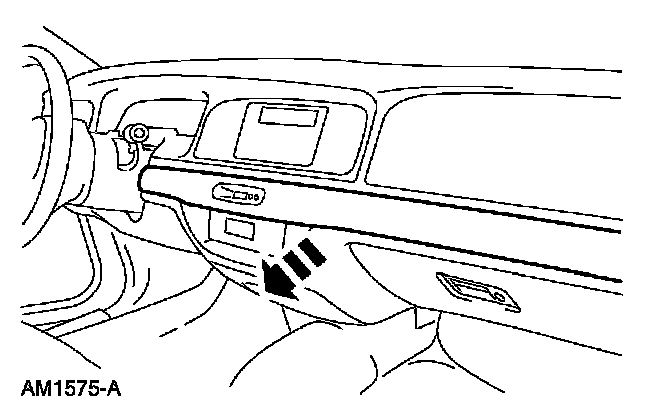

1. Remove the finish panel.

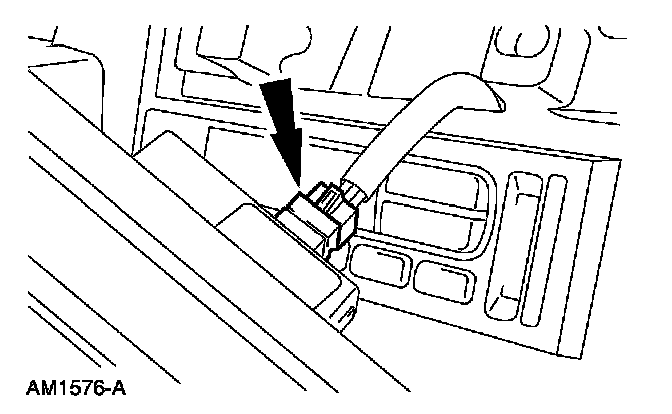

2. Disconnect the connector.

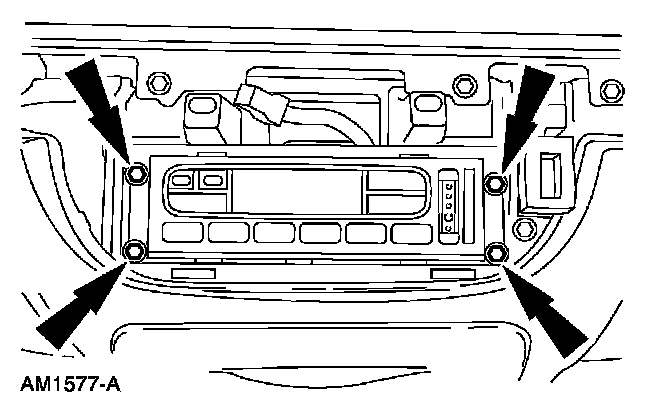

3. Remove the screws and pull the control assembly away from the instrument panel.

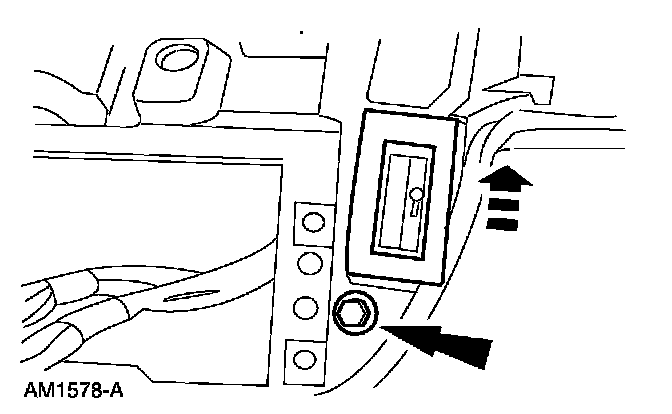

4. Remove the screws and position the in-vehicle temperature sensor to access the connector.

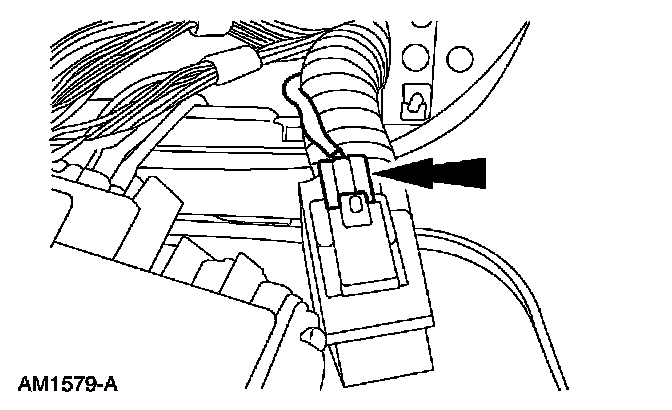

5. Disconnect the connector.

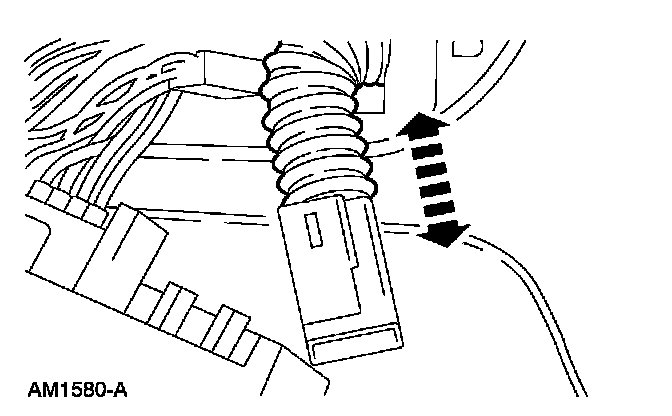

6. Disconnect the hose and remove the in-vehicle temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
