Power Seat Switch: Service and Repair

SEAT CONTROL SWITCH

REMOVAL
1. Disconnect the battery.
2. Remove the front door trim panel.

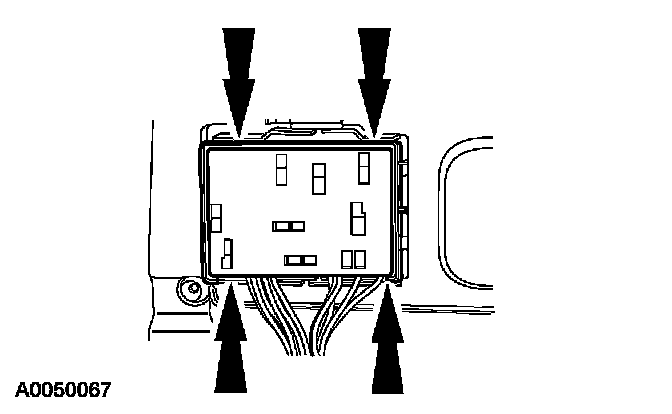

3. Release the locking tabs in the door panel for the front seat control switch.
4. Remove the front seat control switch.

INSTALLATION
1. To install, reverse the removal procedure.
