Rear Center Safety Belt Retractor

REAR CENTER SAFETY BELT RETRACTOR

REMOVAL
1. Remove the rear seat cushion and rear seat back.

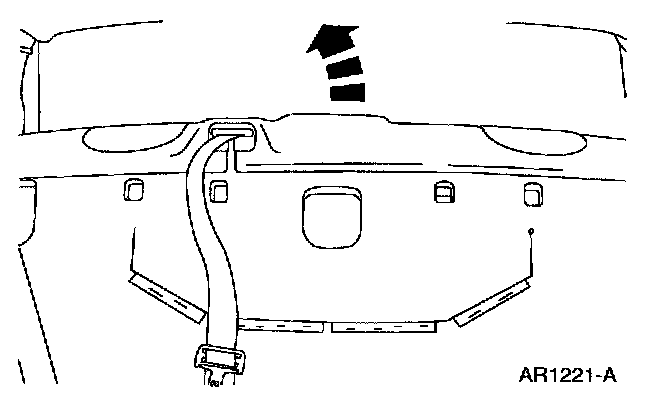

2. Disengage the safety belt from the bezel and remove the package tray trim panel.







3. Remove the rear center safety belt retractor bolt.







4. Remove the rear center safety belt retractor and buckle nut.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the active restraint system for correct operation.
