Front Safety Belt Buckle

FRONT SAFETY BELT BUCKLE

REMOVAL
1. Remove the front seat.







2. Disconnect the connector.

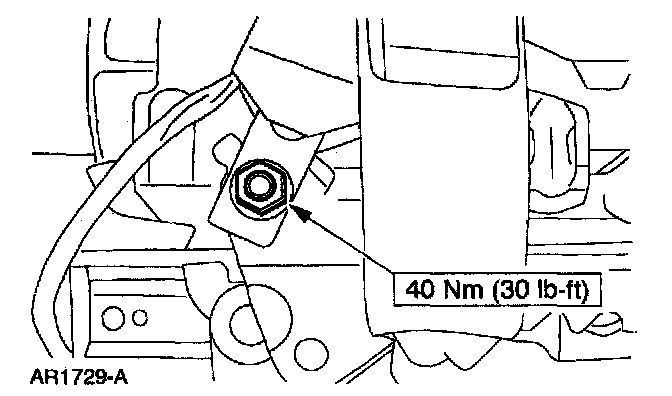

3. Remove the nut.
4. Remove the safety belt buckle through the seat cushion opening.

INSTALLATION
1. To install, reverse the removal procedure.
- Make sure the center passenger restraint is correctly routed through the seat cushion opening and is not twisted. Check the active restraint system for correct operation.
