Child Safety Seat Tether Anchor

CHILD SAFETY SEAT TETHER ANCHOR

REMOVAL
1. Remove the package tray.

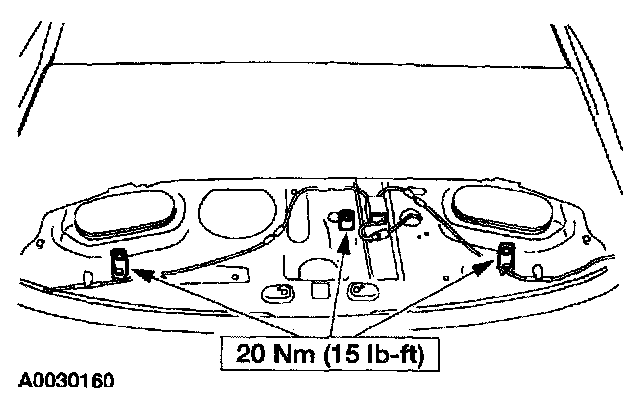

2. Remove the child safety seat tether anchor.

INSTALLATION

1. WARNING: It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be properly secured and the child can be injured in case of a sudden stop or accident.

NOTE:
- Rework the sheet metal to its original condition and structural integrity.
- Install a new child safety seat tether anchor as necessary.
- Make sure to tighten the bolts to specification.

To install, reverse the removal procedure.
- See the removal procedure or Specifications for torque specifications.

2. Check the active restraint system for correct operation.
