Side Impact Sensor

SIDE IMPACT SENSOR

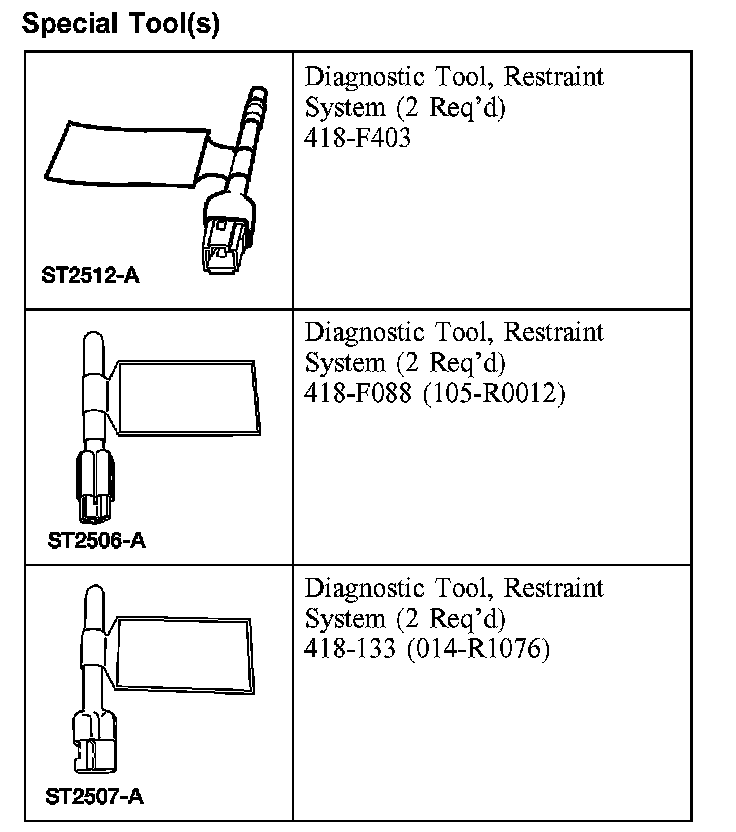

Special Tool(s):

SPECIAL TOOL(S)

REMOVAL

WARNING: Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.

NOTE:
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
- The left side is shown, the right side is similar.
- For this procedure, the side impact sensors are located at the base of each B-pillar.

1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

The side impact sensors are located at or near the base of the B-pillar.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable and wait at least one minute.

2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Deactivate the supplemental restraint system (SRS).

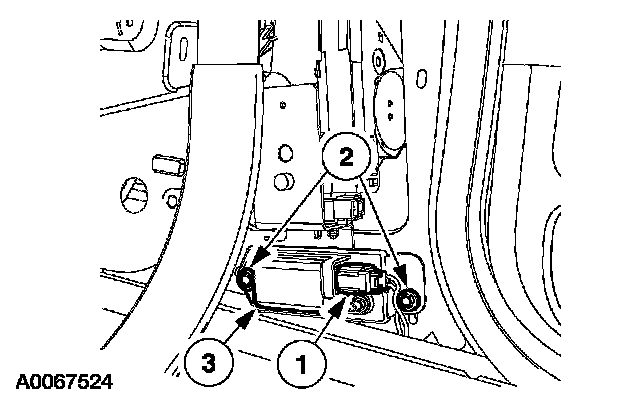

3. Remove the side impact sensor with bracket.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the side impact sensor with bracket.

INSTALLATION

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.







1. NOTE: Make sure the battery ground cable is still disconnected before proceeding with the installation portion of this procedure.

Install the side impact sensor with bracket.
1 Position the side impact sensor with bracket.
2 Install the bolts.
3 Connect the electrical connector.

2. Connect the battery ground cable.
3. With the restraint system diagnostic tools installed at all deployable devices, prove out the supplemental restraint system (SRS). Prove Out Procedure
4. Disconnect the battery ground cable and wait at least one minute.

5. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS).

6. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Prove Out Procedure
