Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

REMOVAL
1. Remove the intake manifold.

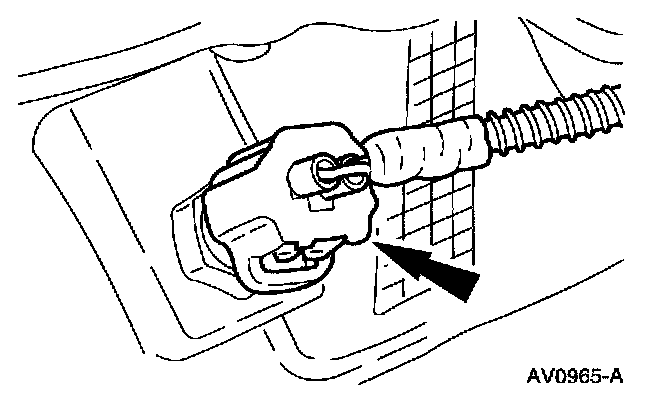

2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.

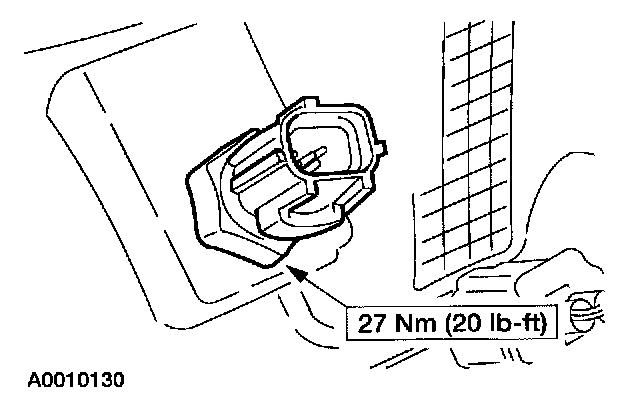

3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
