Intake Air Duct: Service and Repair

AIR CLEANER OUTLET PIPE

REMOVAL

NOTE: Standard vehicle shown; police vehicles are similar in appearance.

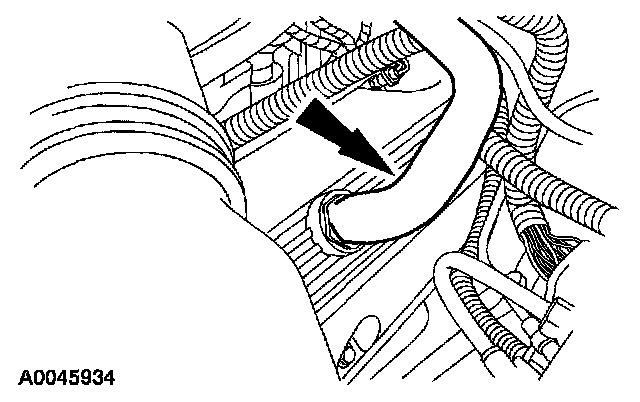

1. Remove the crankcase ventilation hose.

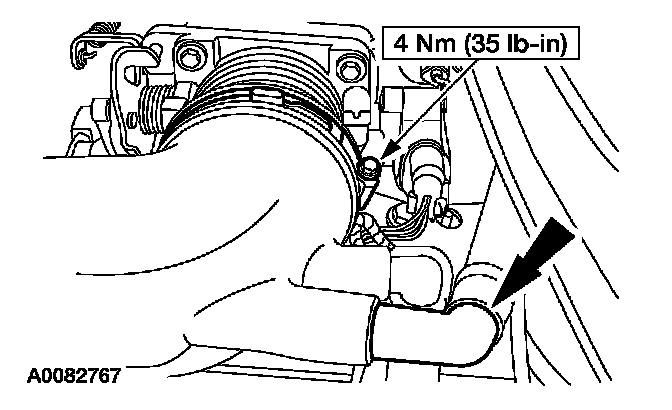

2. Loosen the clamp and disconnect the idle air control (IAC) valve inlet hose.

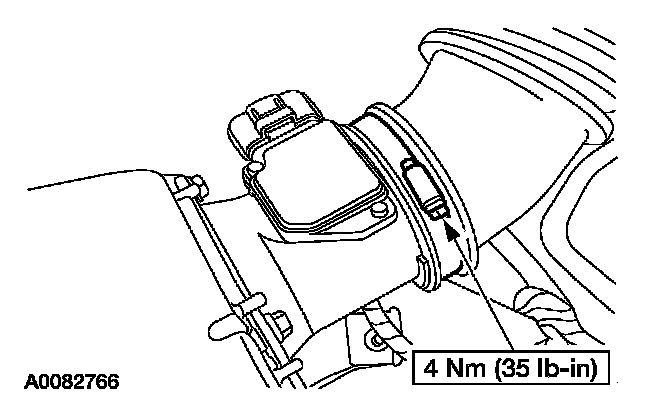

3. Loosen the clamp and remove the air cleaner outlet tube and resonator assembly.

INSTALLATION
1. To install, reverse the removal procedure.
