Adjustable Accelerator Pedal and Shaft

ACCELERATOR PEDAL AND SHAFT - ADJUSTABLE

REMOVAL

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.

1. Disconnect the battery ground cable.

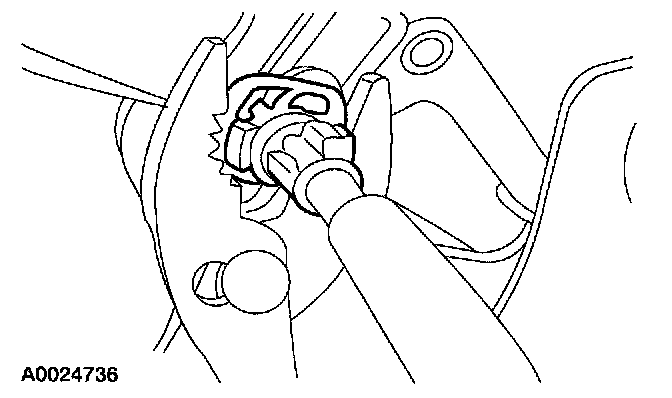

2. Remove the accelerator cable from the accelerator pedal and shaft.

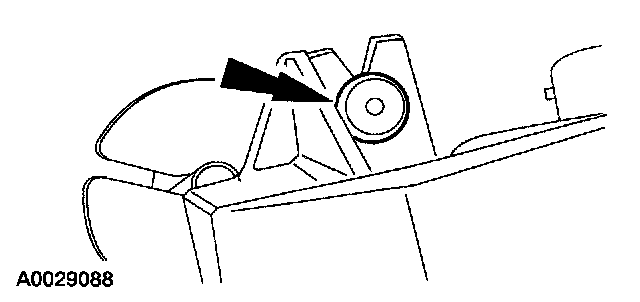

3. Disconnect the adjustable drive cable from the brake pedal.

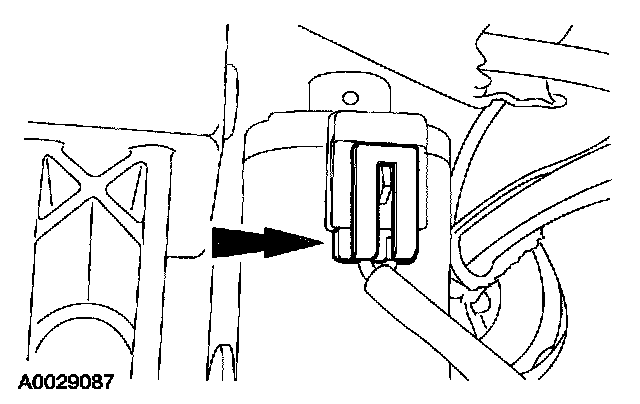

4. Disconnect the drive motor electrical connector.







5. Remove the two nuts and the accelerator pedal and shaft.

INSTALLATION
1. To install, reverse the removal procedure.
- Index the adjustable pedals.
