EGR Tube: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MODULE TUBE

REMOVAL







1. Remove the air cleaner outlet tube.

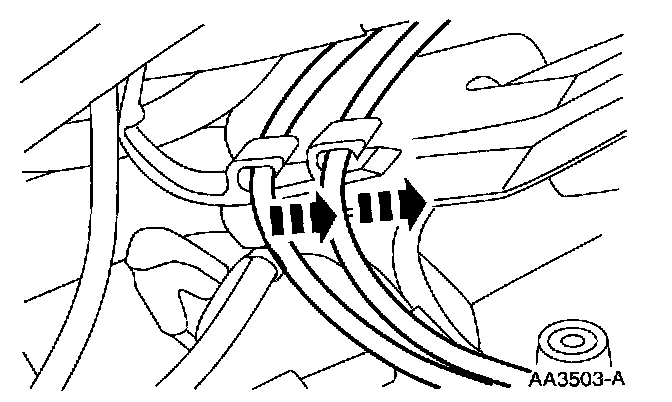

2. Remove the cables from the intake manifold shield.

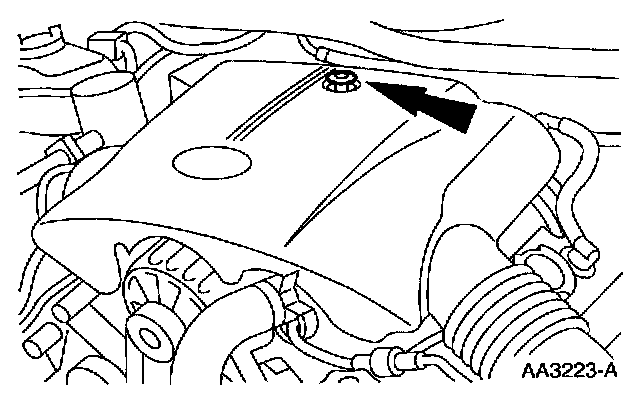

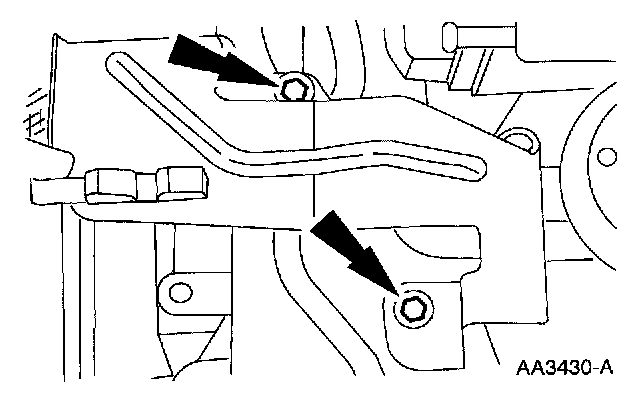

3. Remove the bolts and the intake manifold shield.

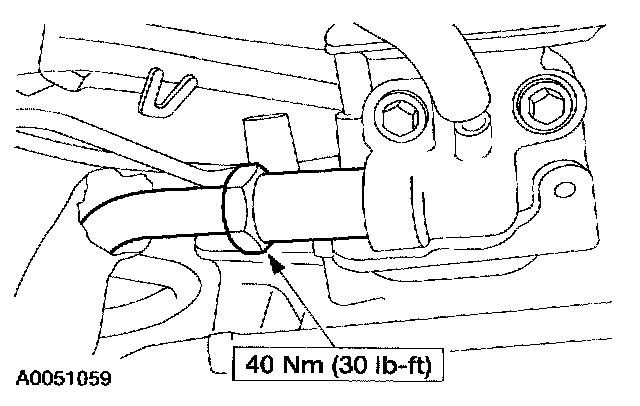

4. Remove the nut at the EGR system module.
5. Raise the vehicle.
6. Remove the RH catalytic converter assembly.

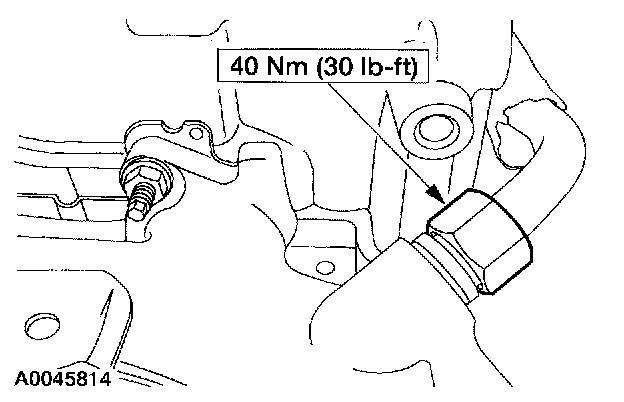

7. Remove the nut at the exhaust manifold.
8. Lower the vehicle.
9. Remove the tube.

INSTALLATION







1. To install, reverse the removal procedure.
