Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

REMOVAL
1. Disconnect the battery ground cable.

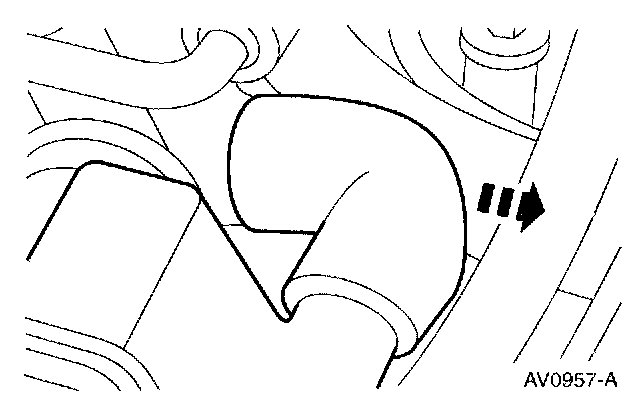

2. Remove the engine appearance cover.

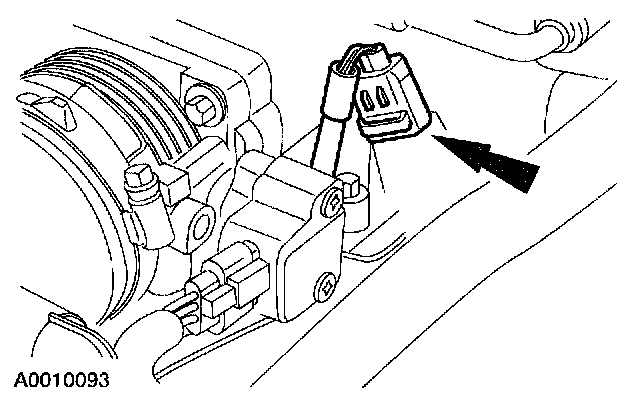

3. Disconnect the idle air control (IAC) valve electrical connector.







4. Remove the IAC valve hose.

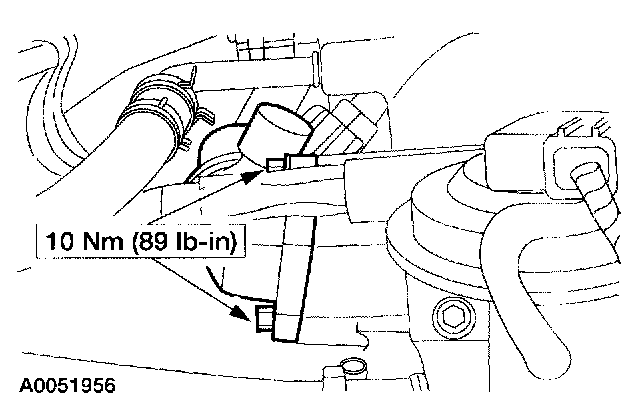

5. Remove the IAC valve.

INSTALLATION
1. To install, reverse the removal procedure.
