Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test L

Test L

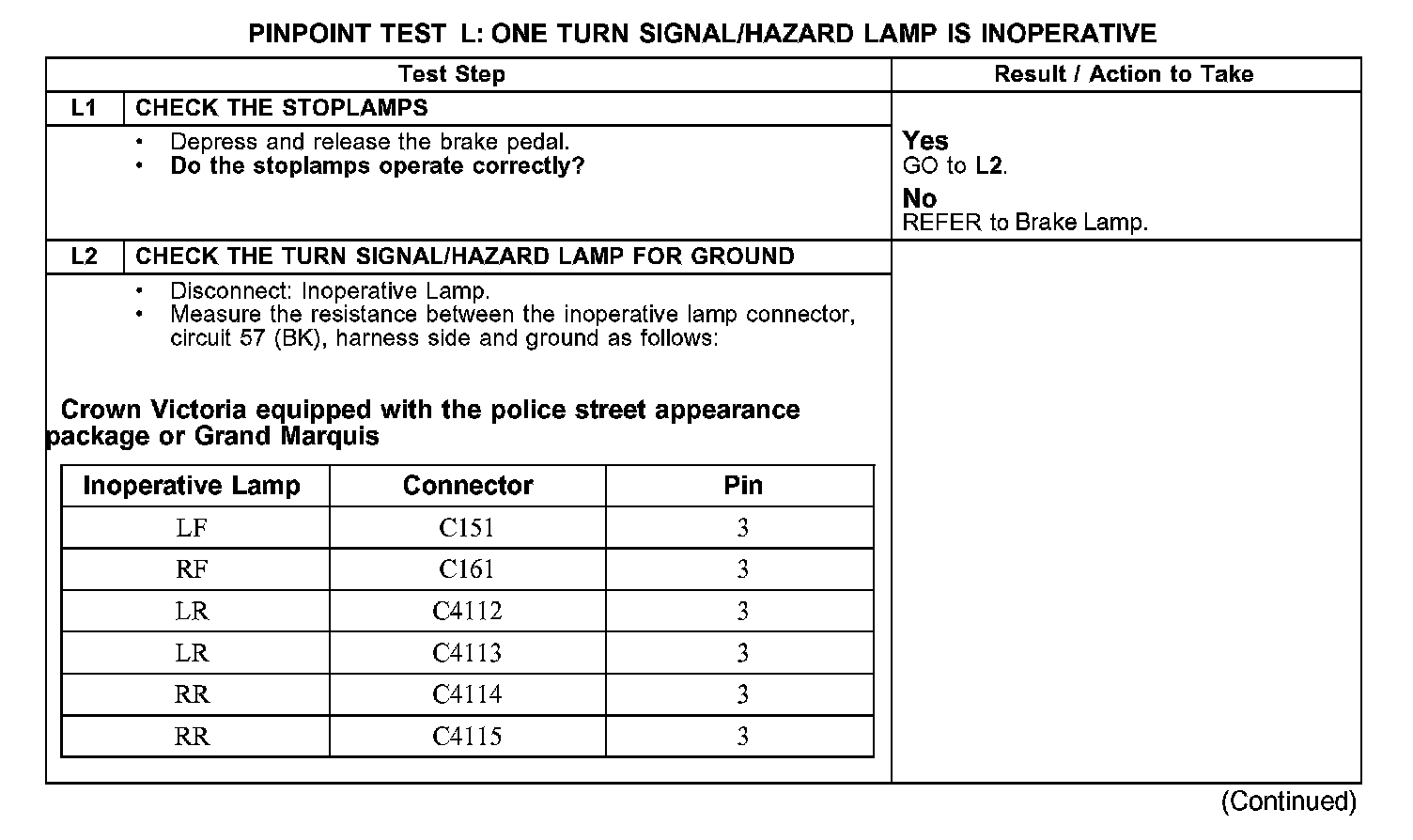

PINPOINT TEST L: ONE TURN SIGNAL/HAZARD LAMP IS INOPERATIVE


Test L1-L2:

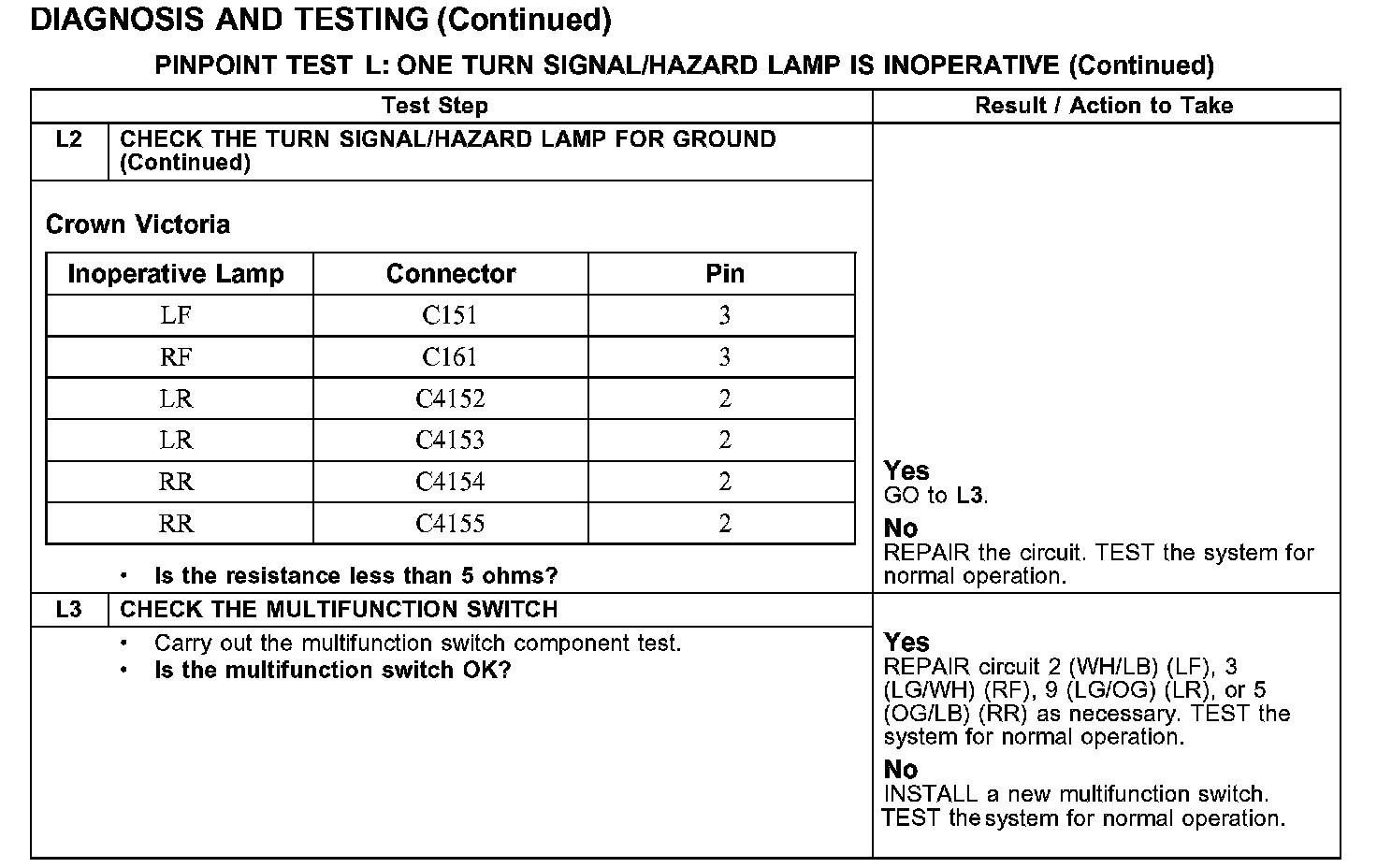

Test L2-L3:
