Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test K

Test K

PINPOINT TEST K: THE CORNERING LAMP(S) IS INOPERATIVE

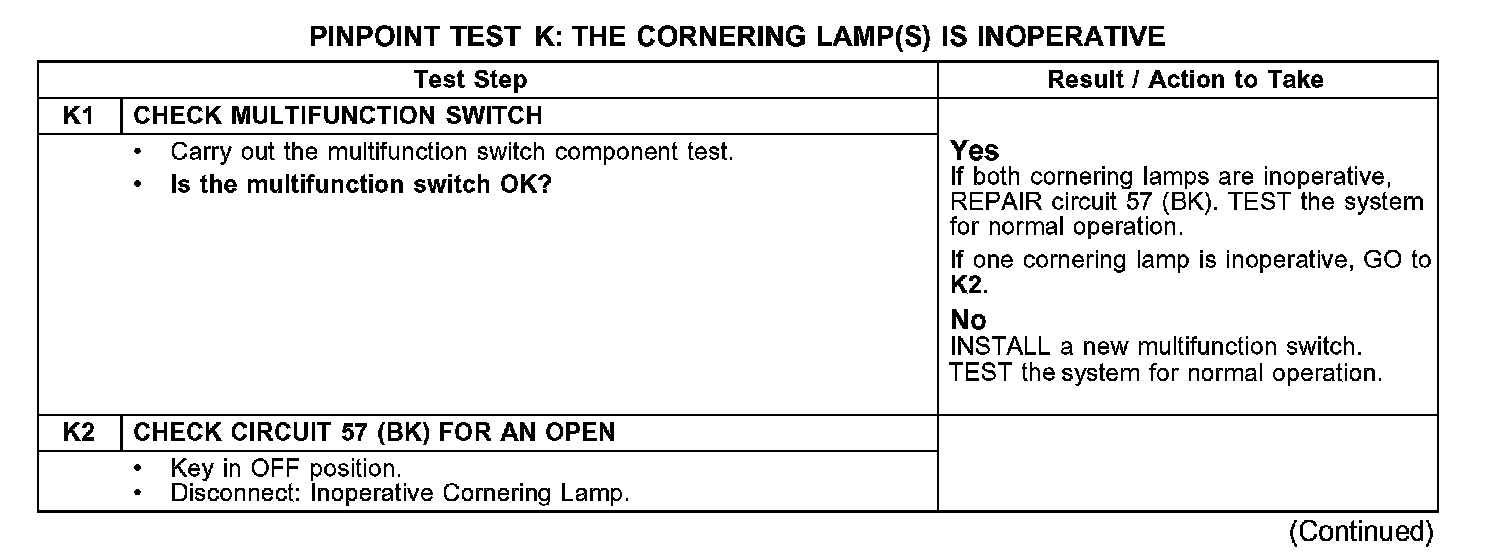

Test K1-K2:

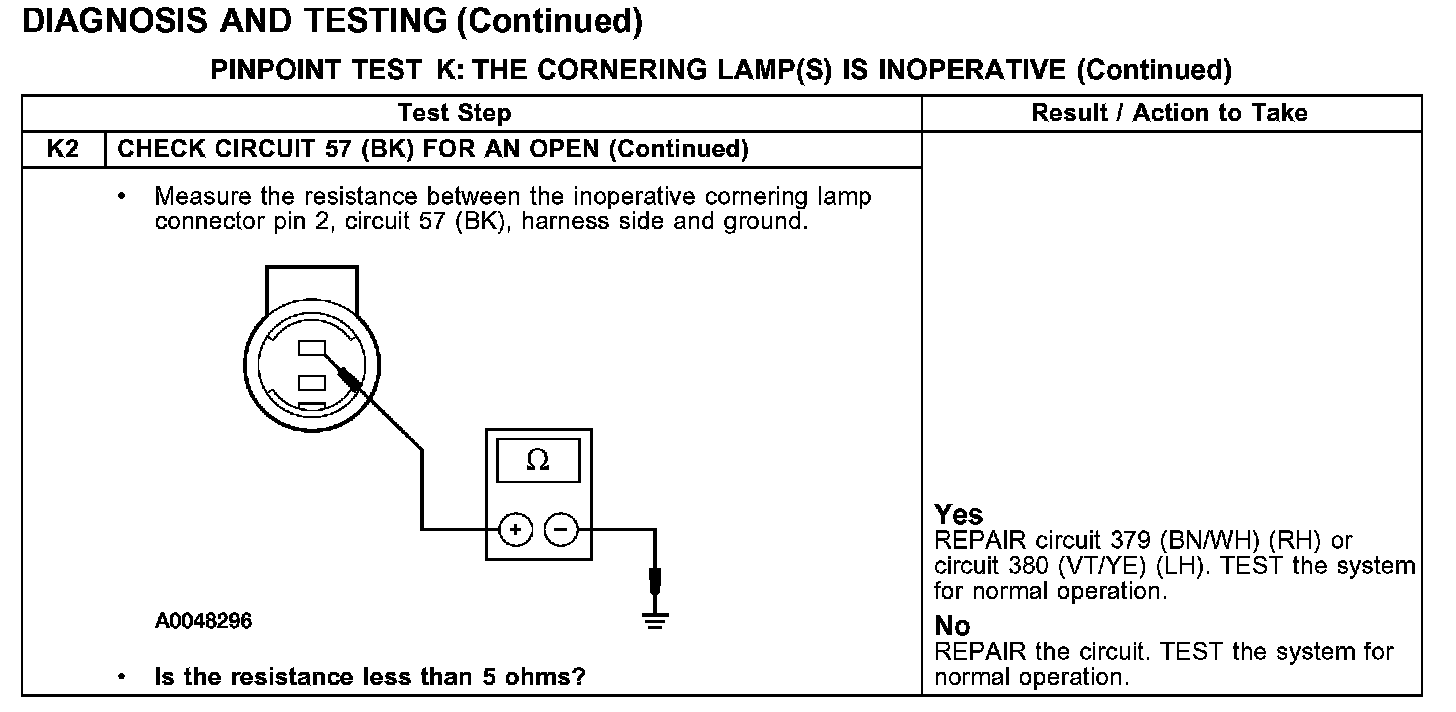

Test K2 Continued:
