PINPOINT TEST X: THE PUBLIC SAFETY LIGHTING COMPONENT DOES NOT OPERATE CORRECTLY - LIGHT BAR

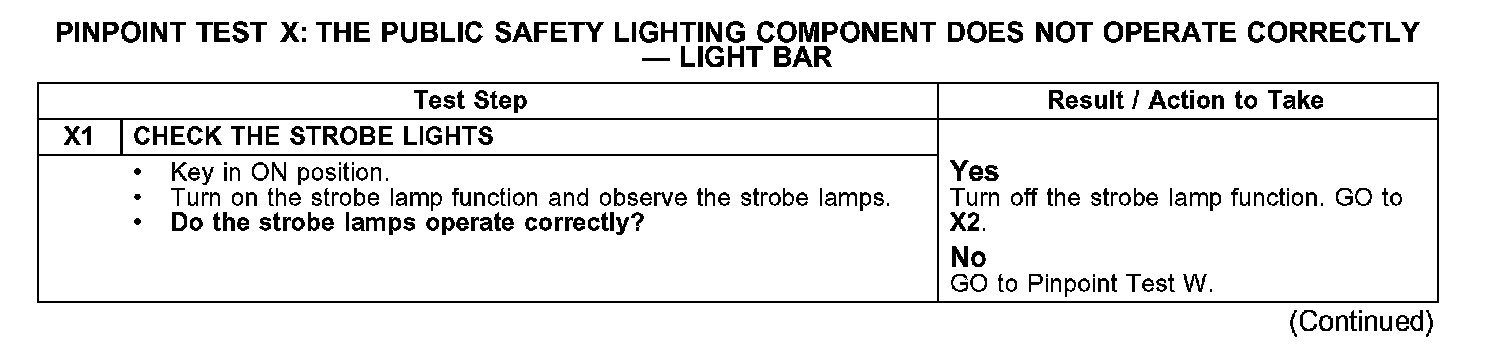

Test X1:
Test X2-X5:

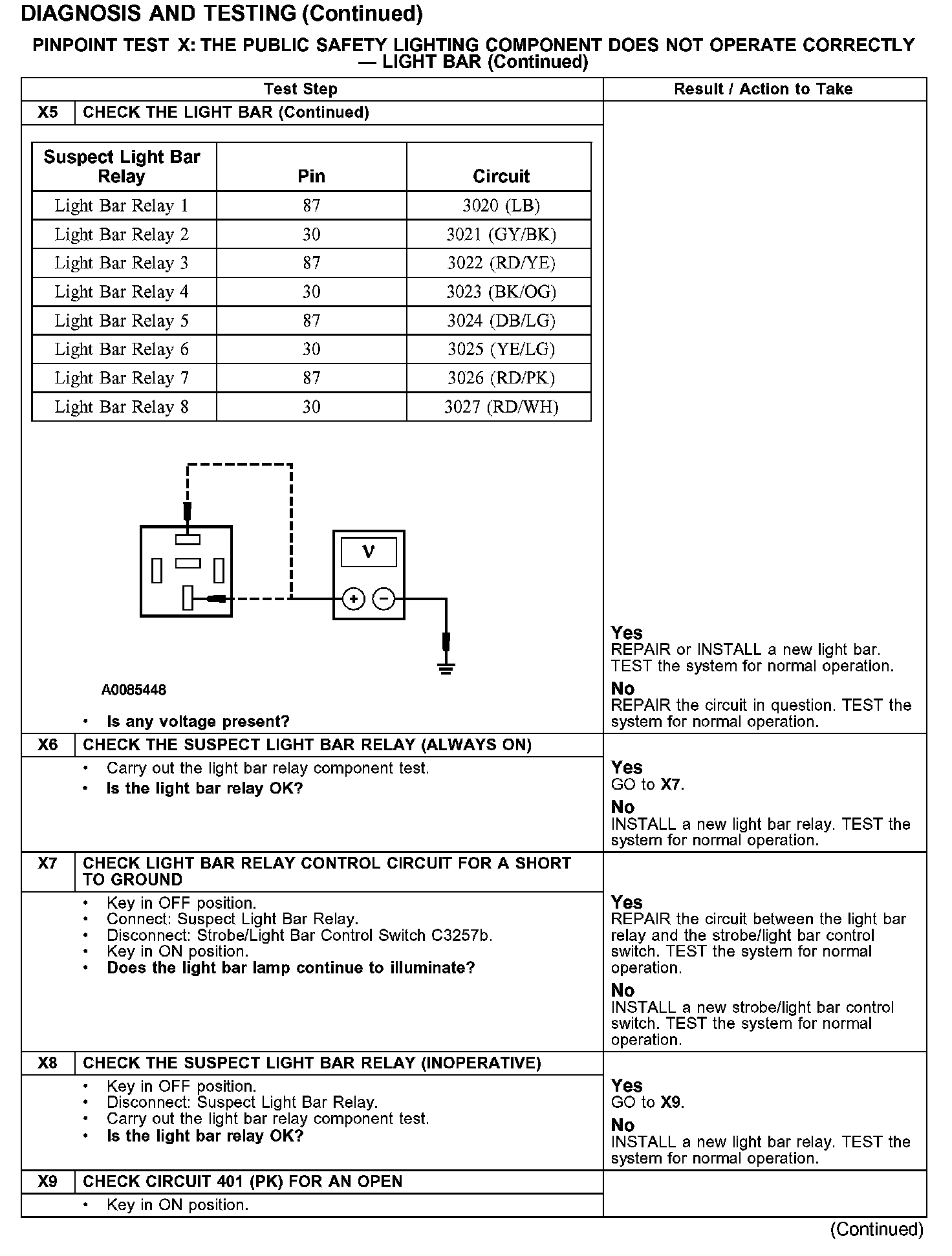

Test X5-X9:

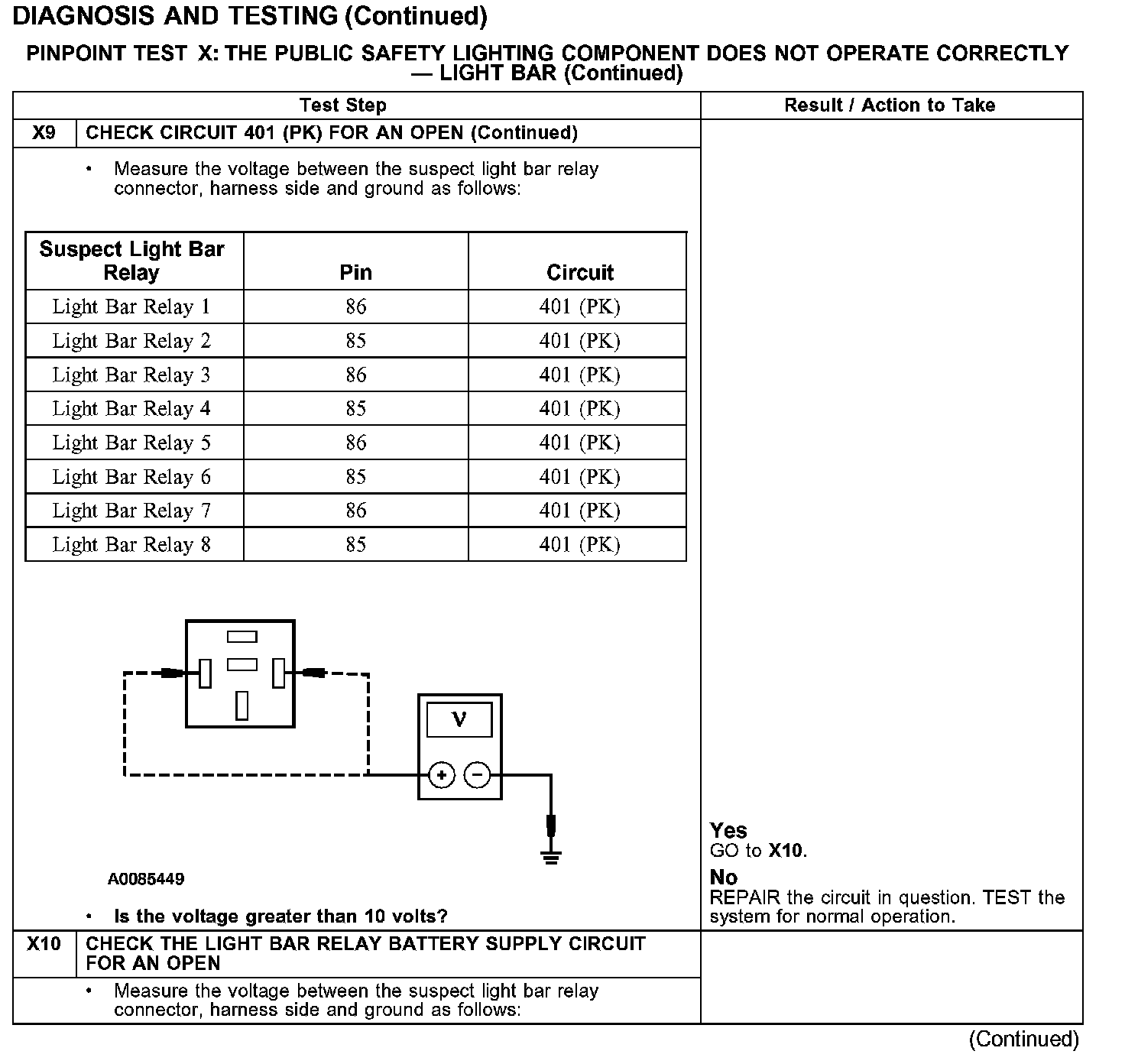

Test X9-X10:

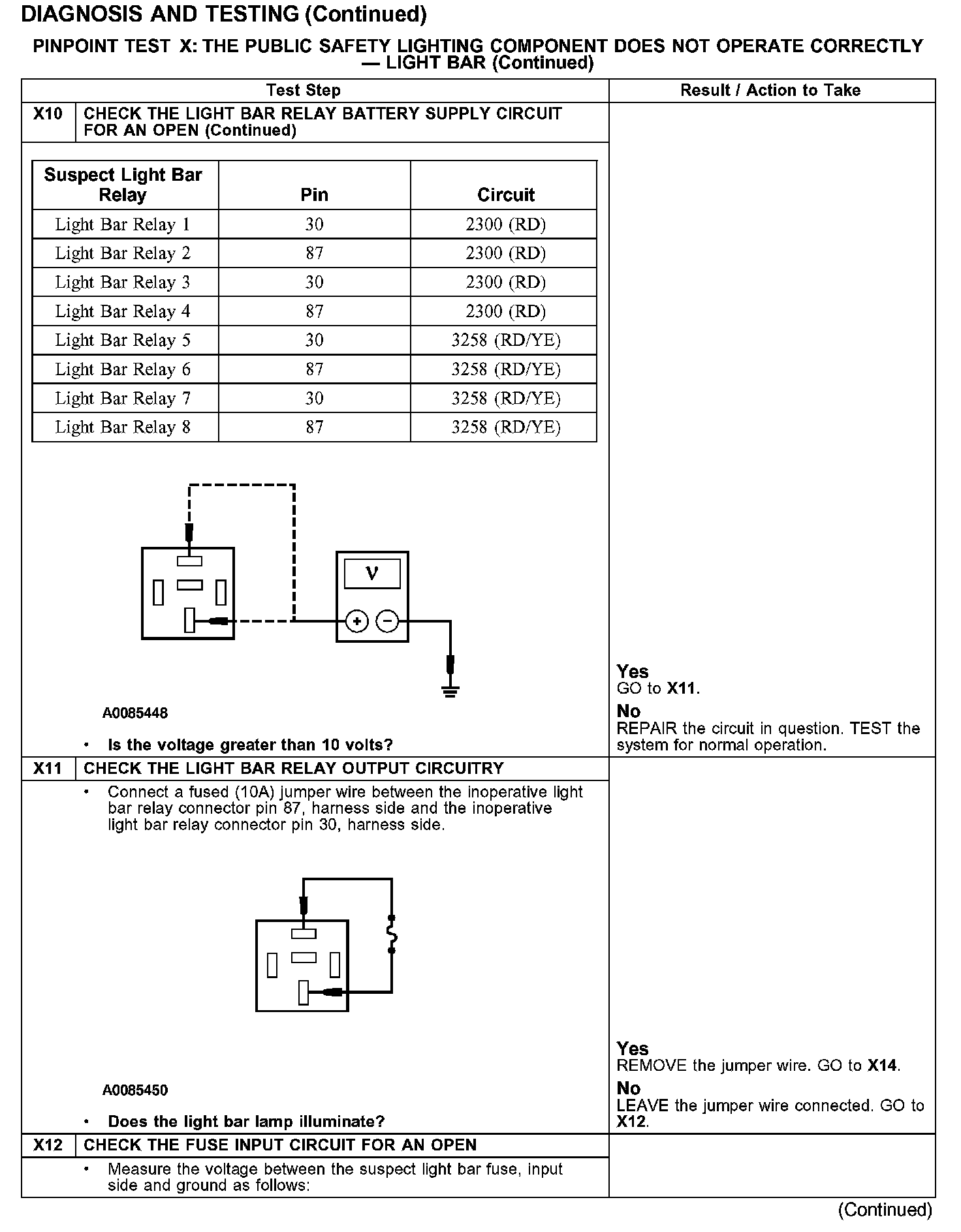

Test X10-X12:

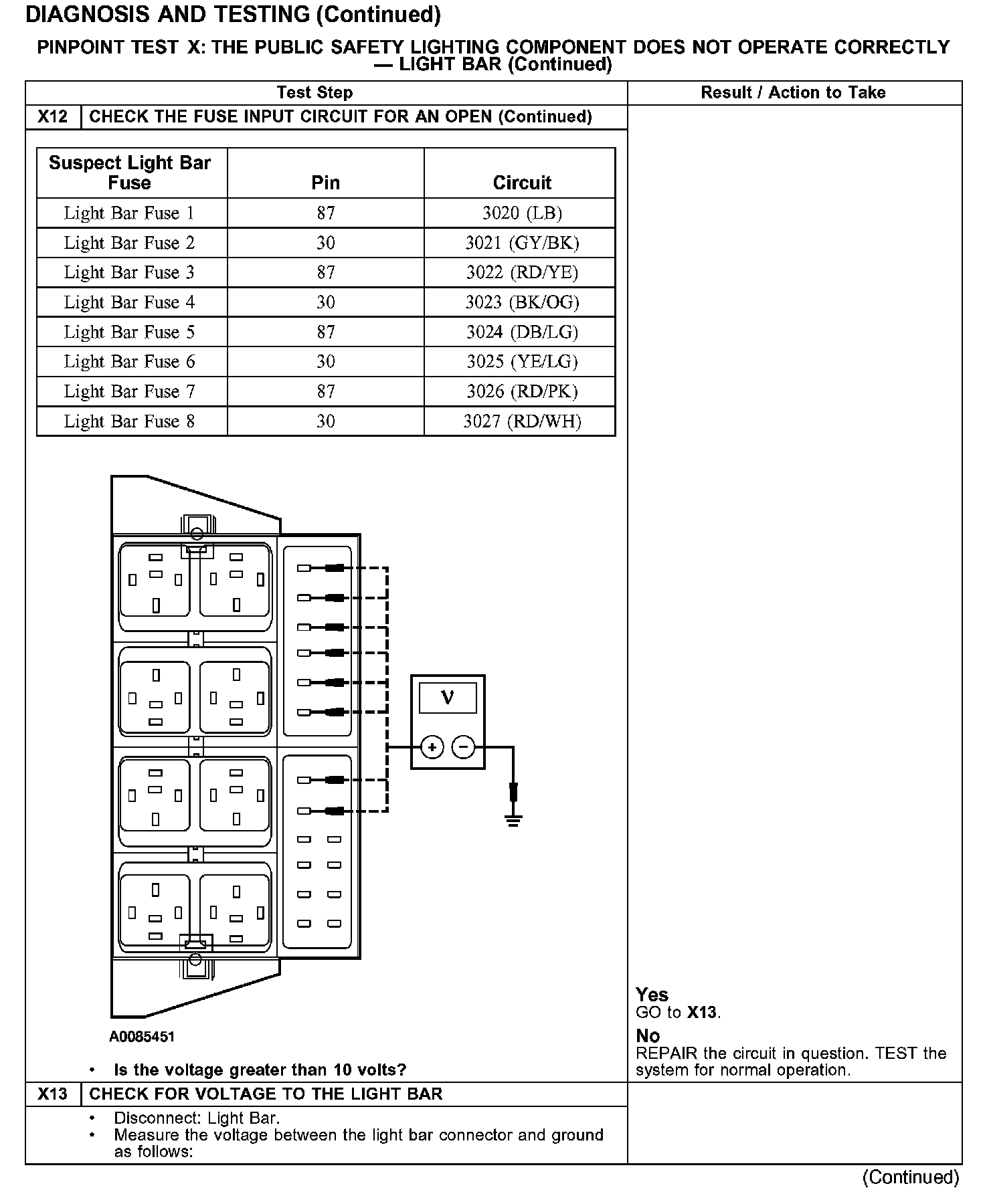

Test X12-X13:

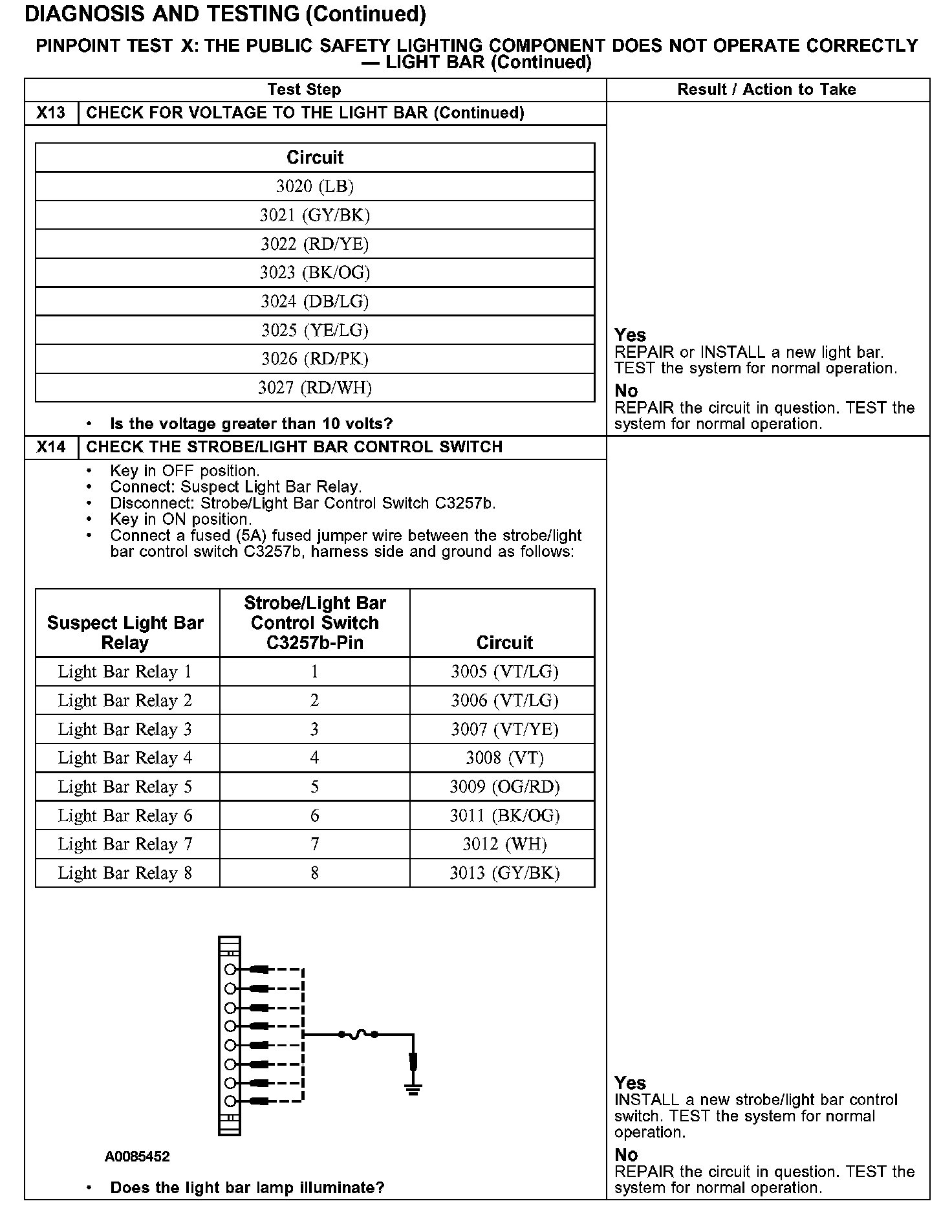

Test X13-X14:
