PINPOINT TEST V: THE PUBLIC SAFETY LIGHTING COMPONENT DOES NOT OPERATE CORRECTLY - ALTERNATING FLASHING HEADLAMPS

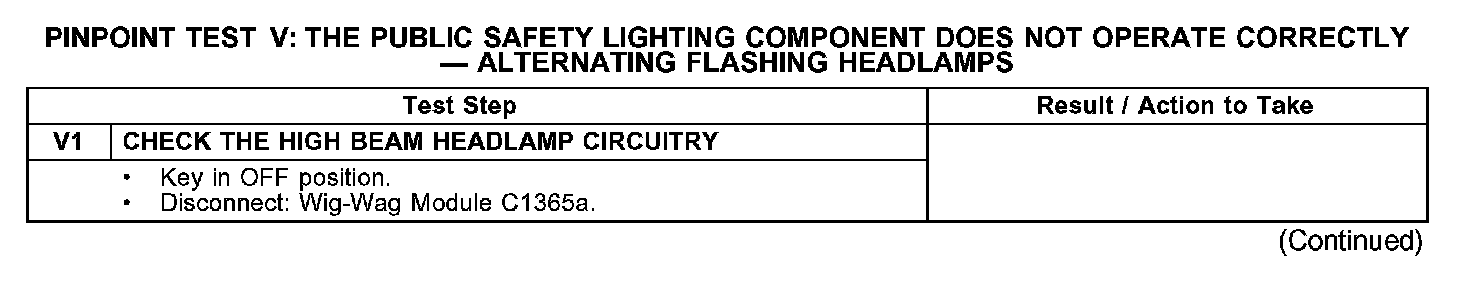

Test V1:

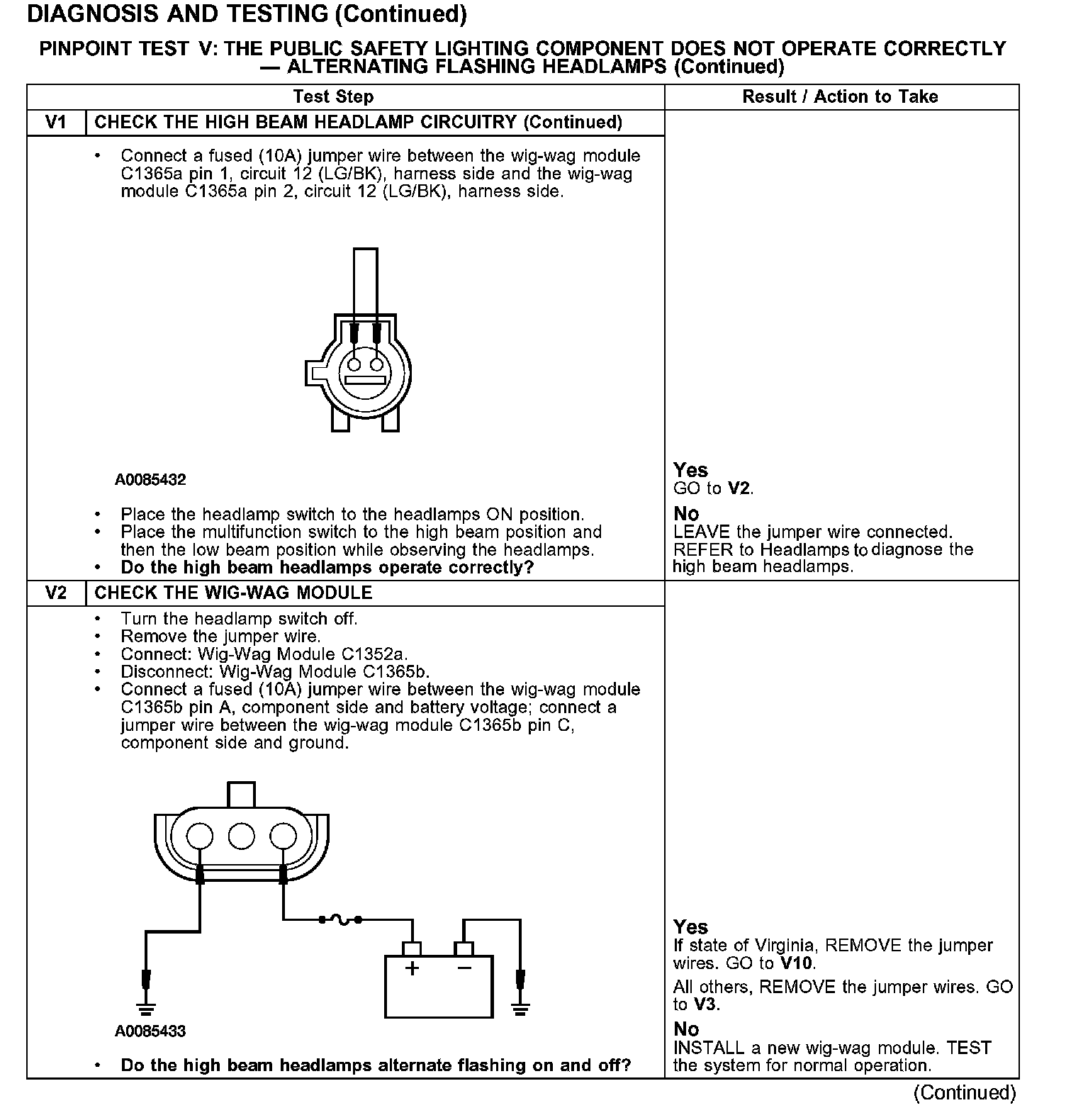

Test V1-V2:

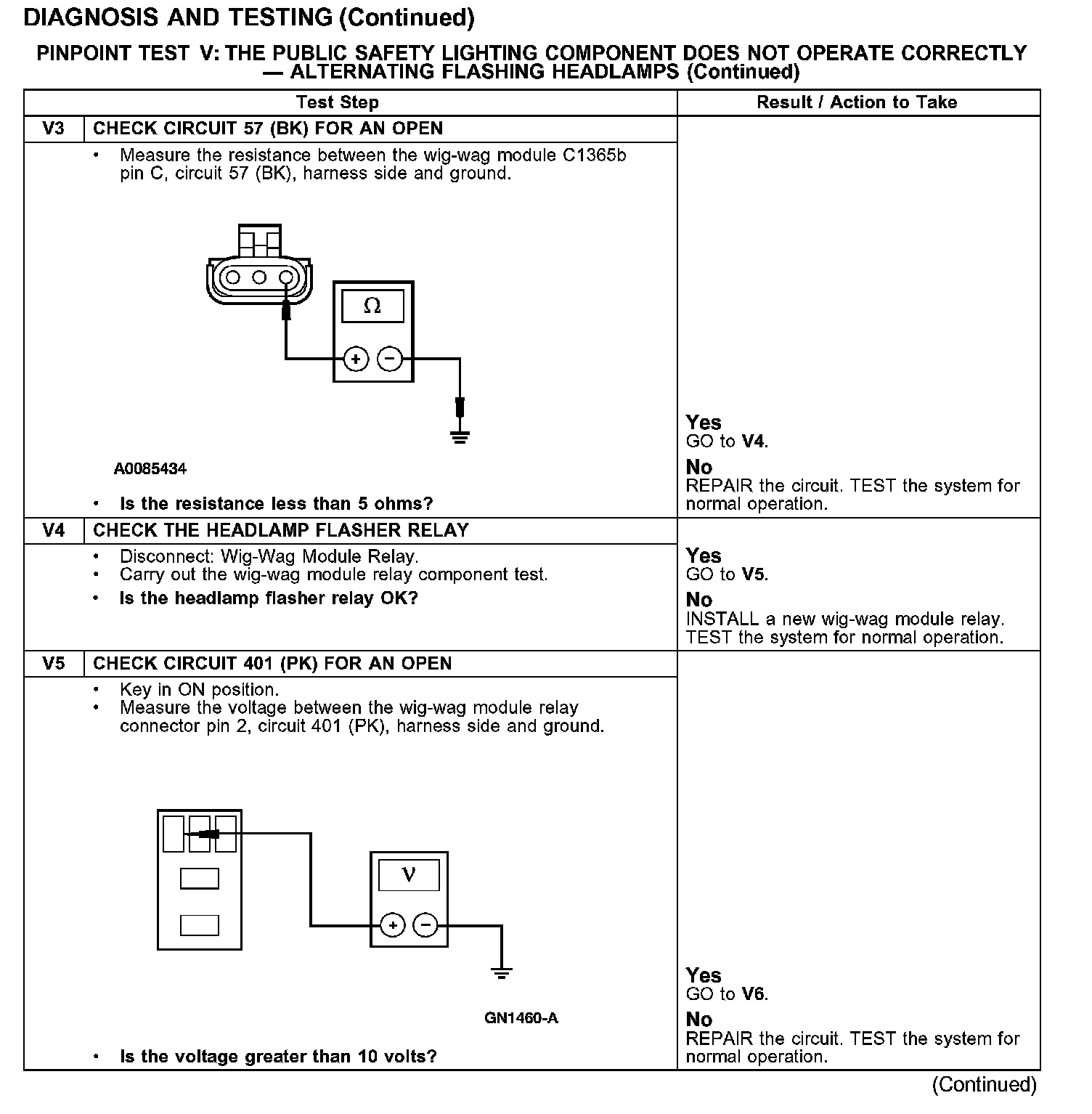

Test V3-V5:

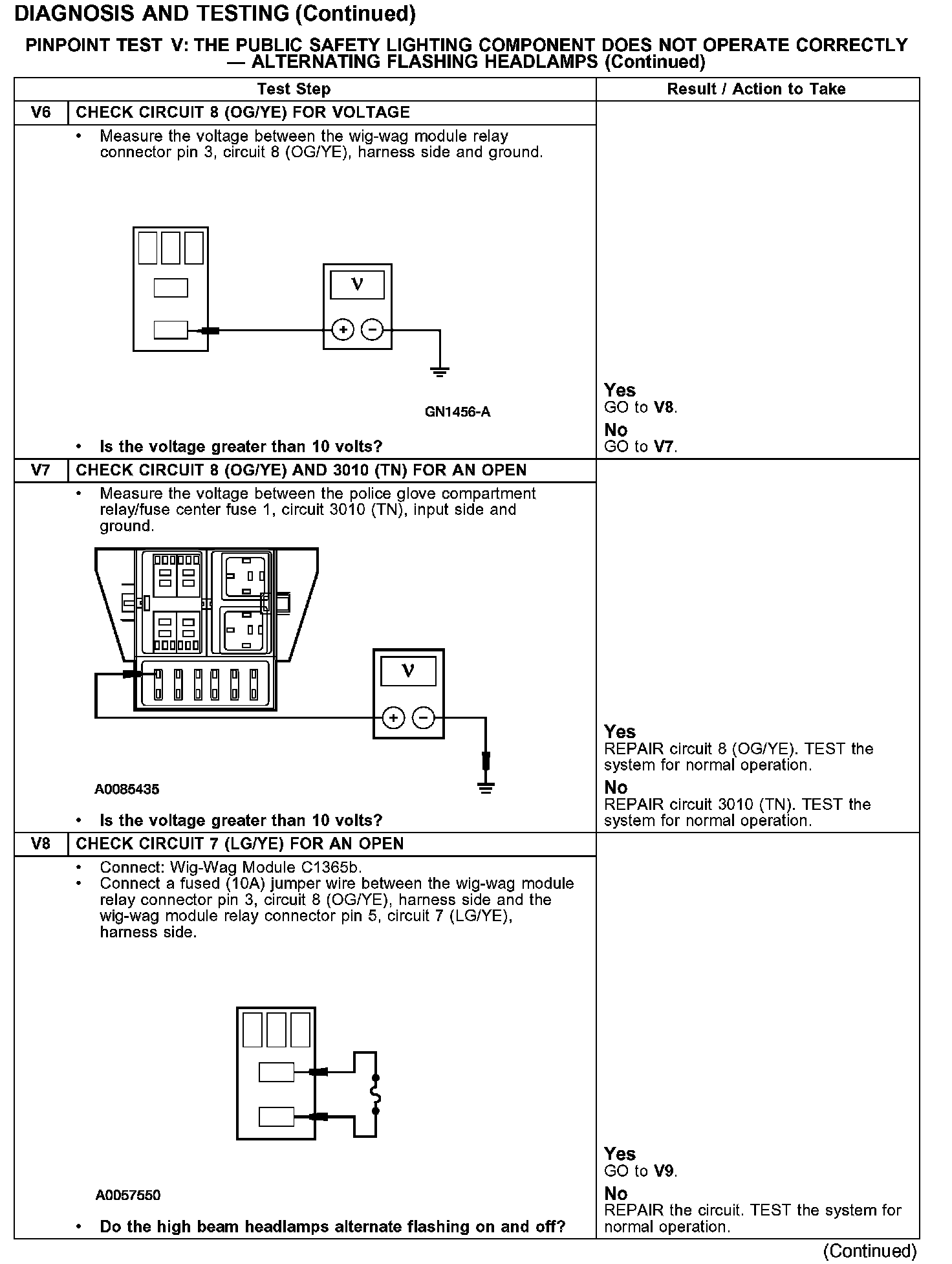

Test V6-V8:

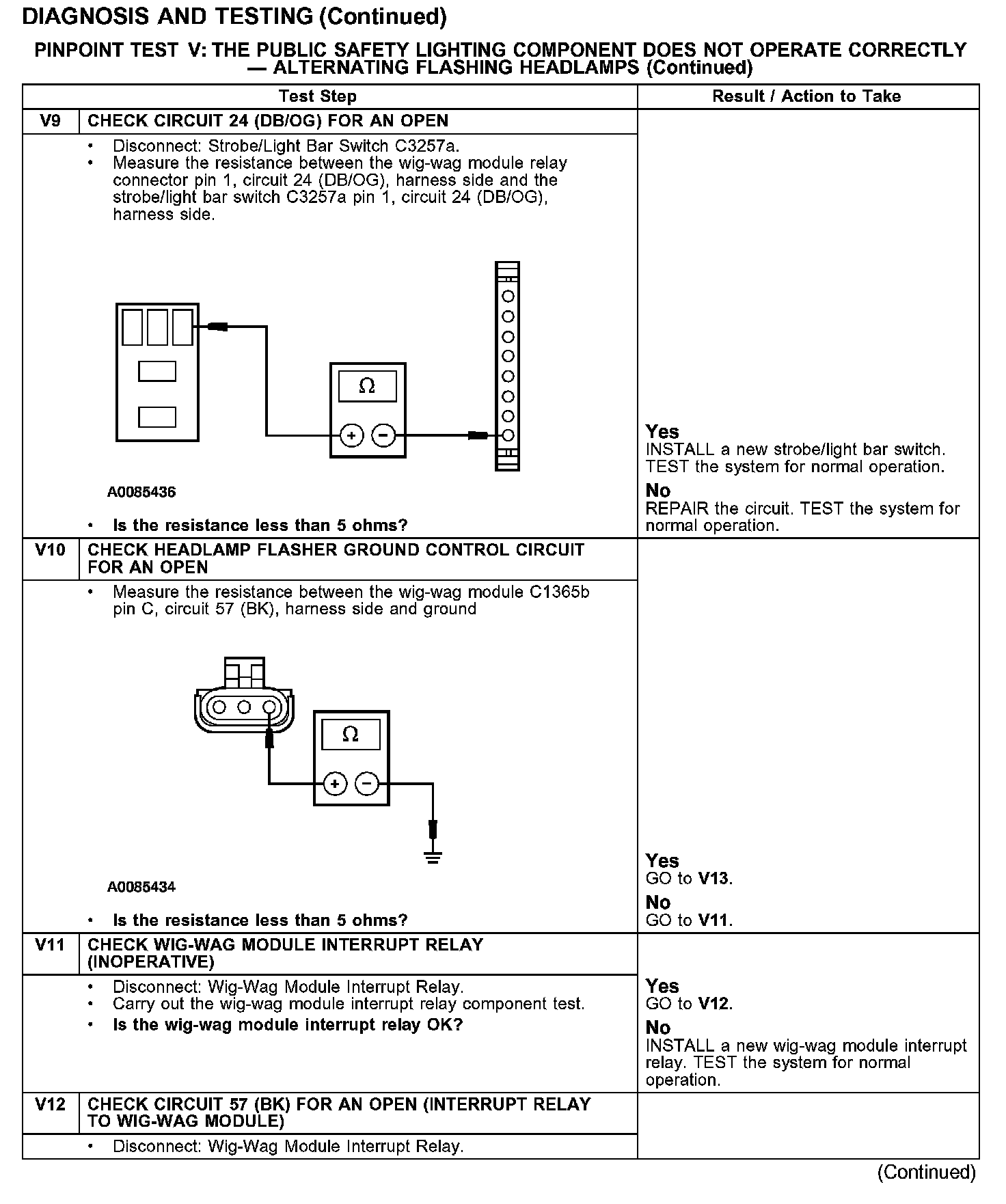

Test V9-V12:

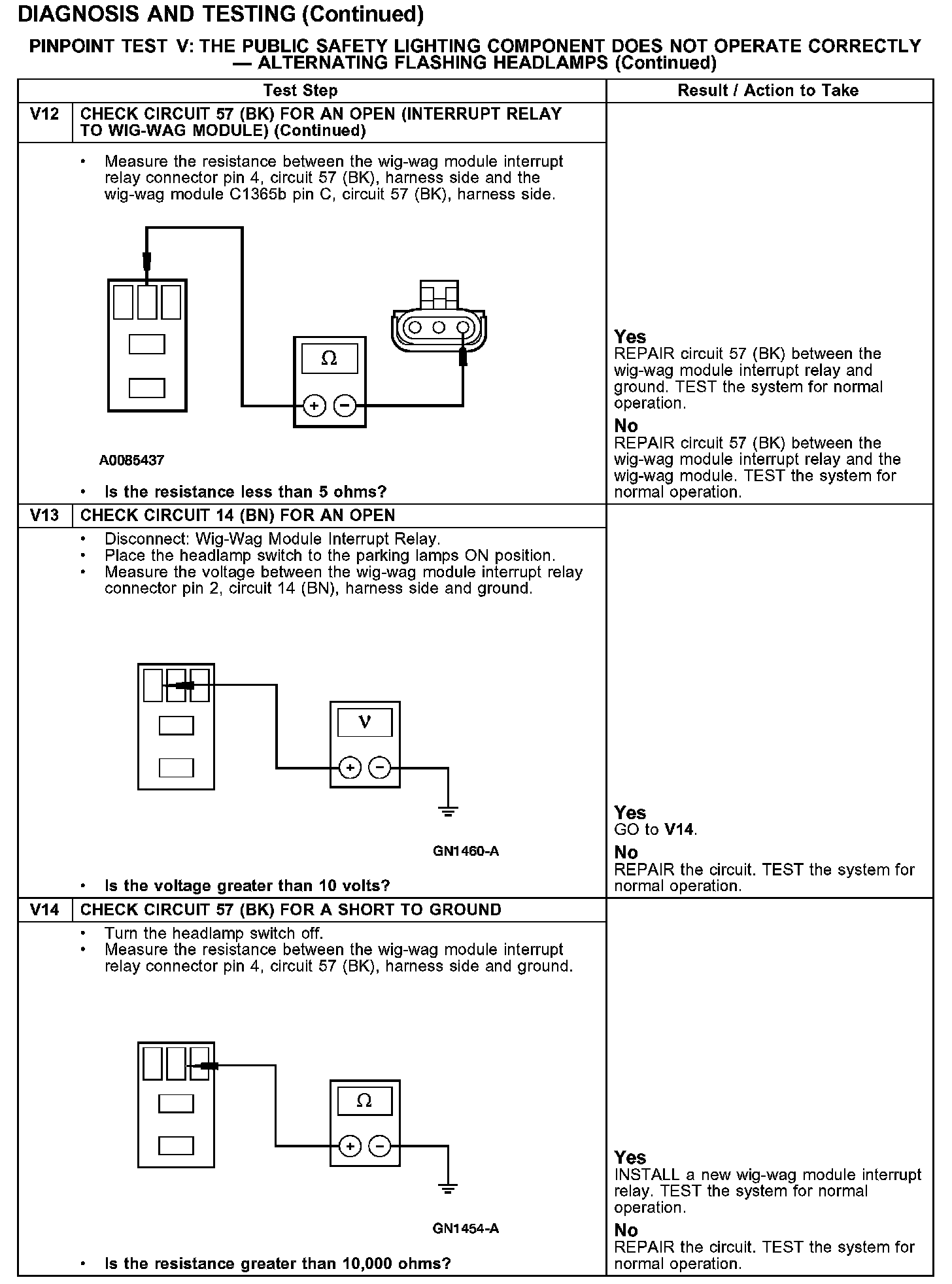

Test V12-V14:
