Tail Lamp: Service and Repair

REAR LAMP ASSEMBLY

REMOVAL

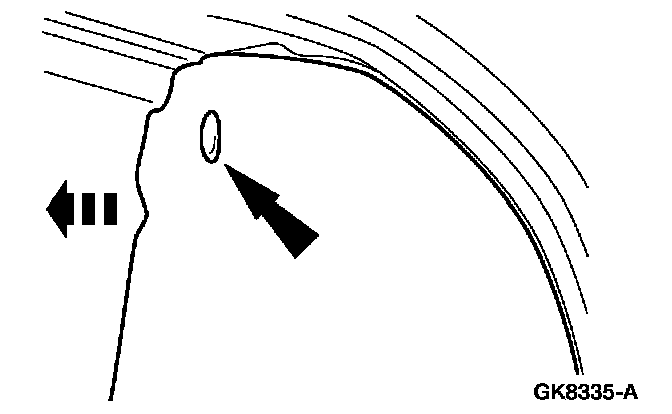

1. Remove the pin-type retainer and position the luggage compartment trim aside.







2. Remove the nuts and the rear lamp assembly.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
