Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE HORN IS INOPERATIVE

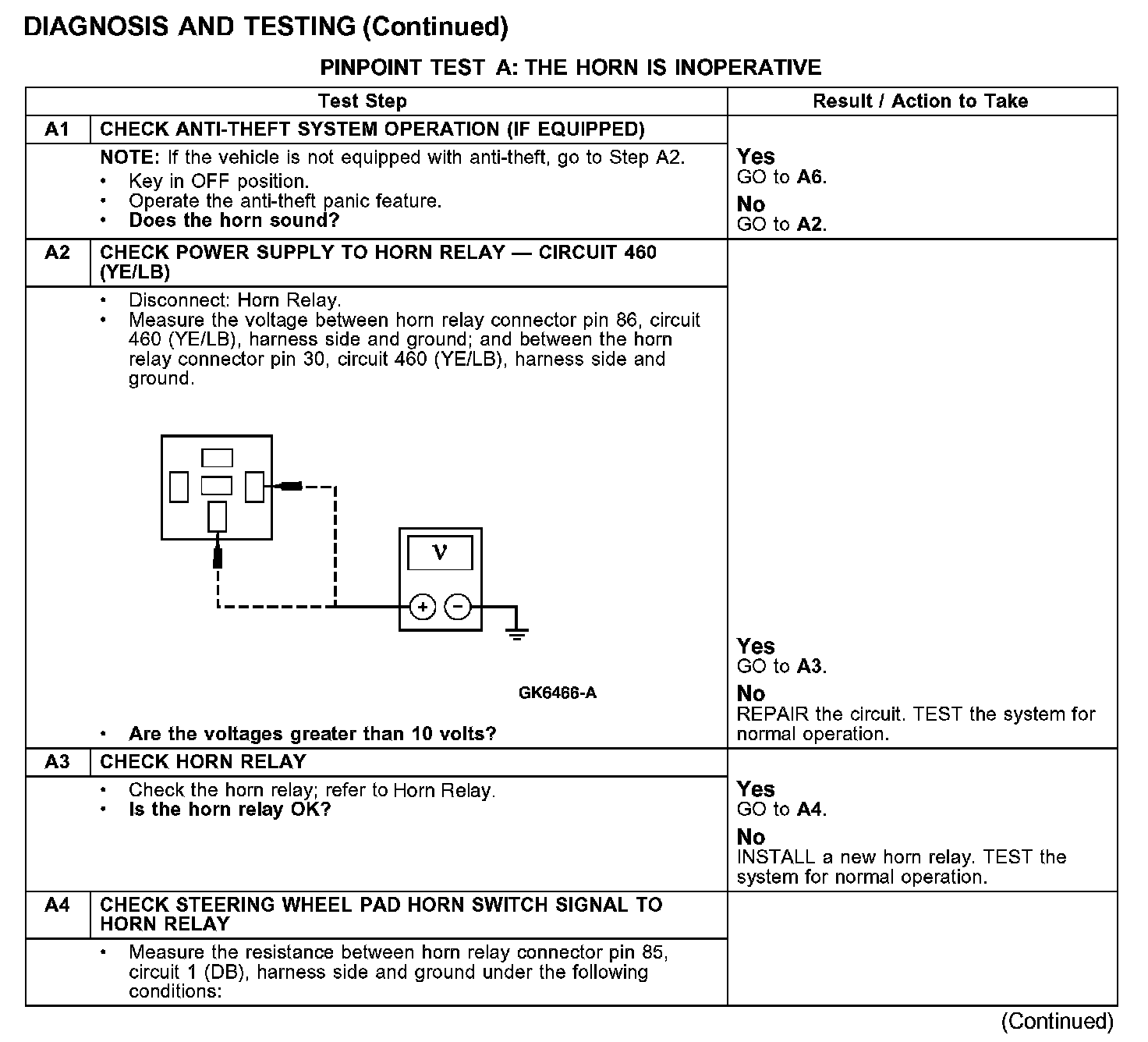

Test A1-A4:

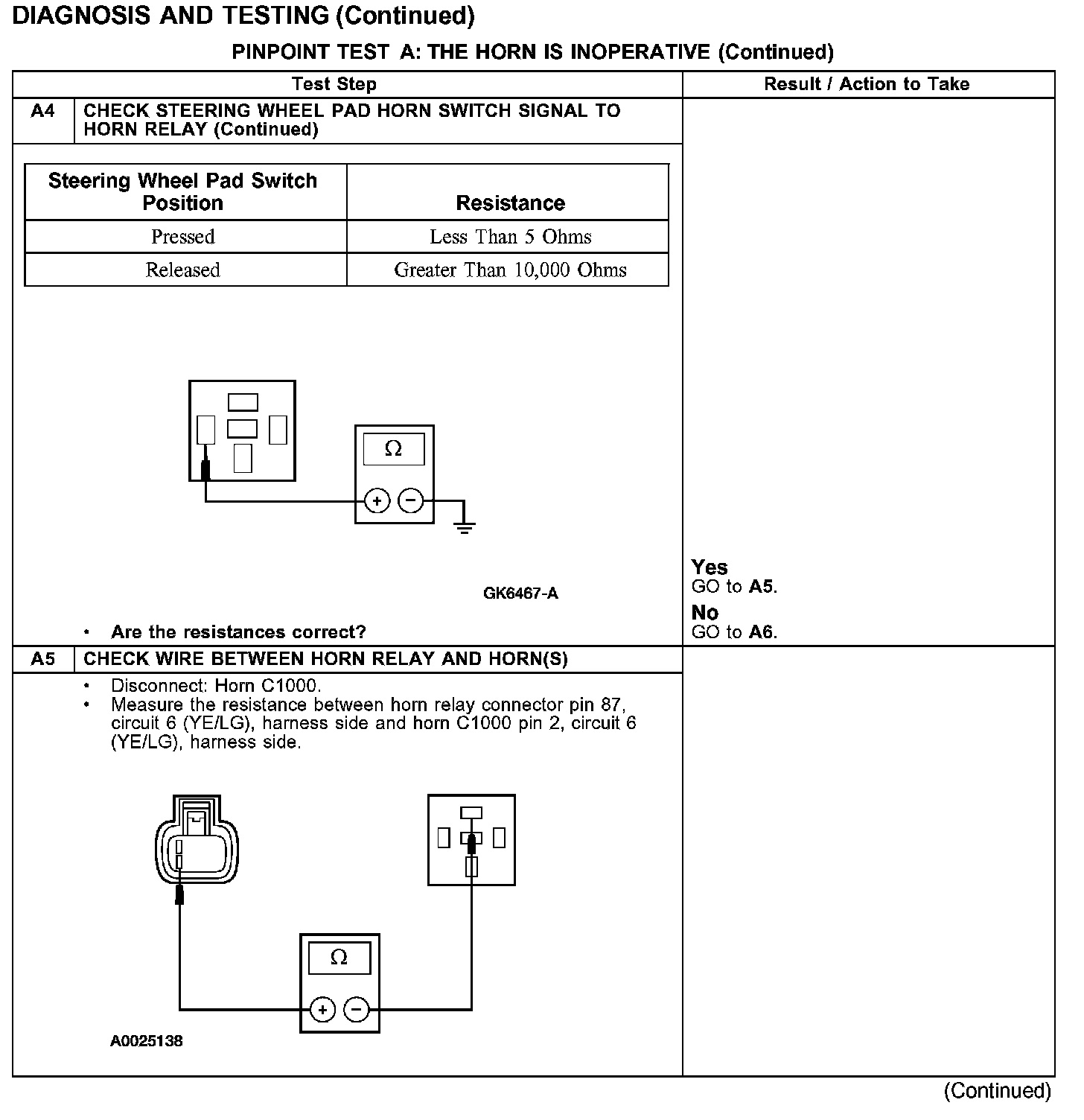

Test A4-A5:

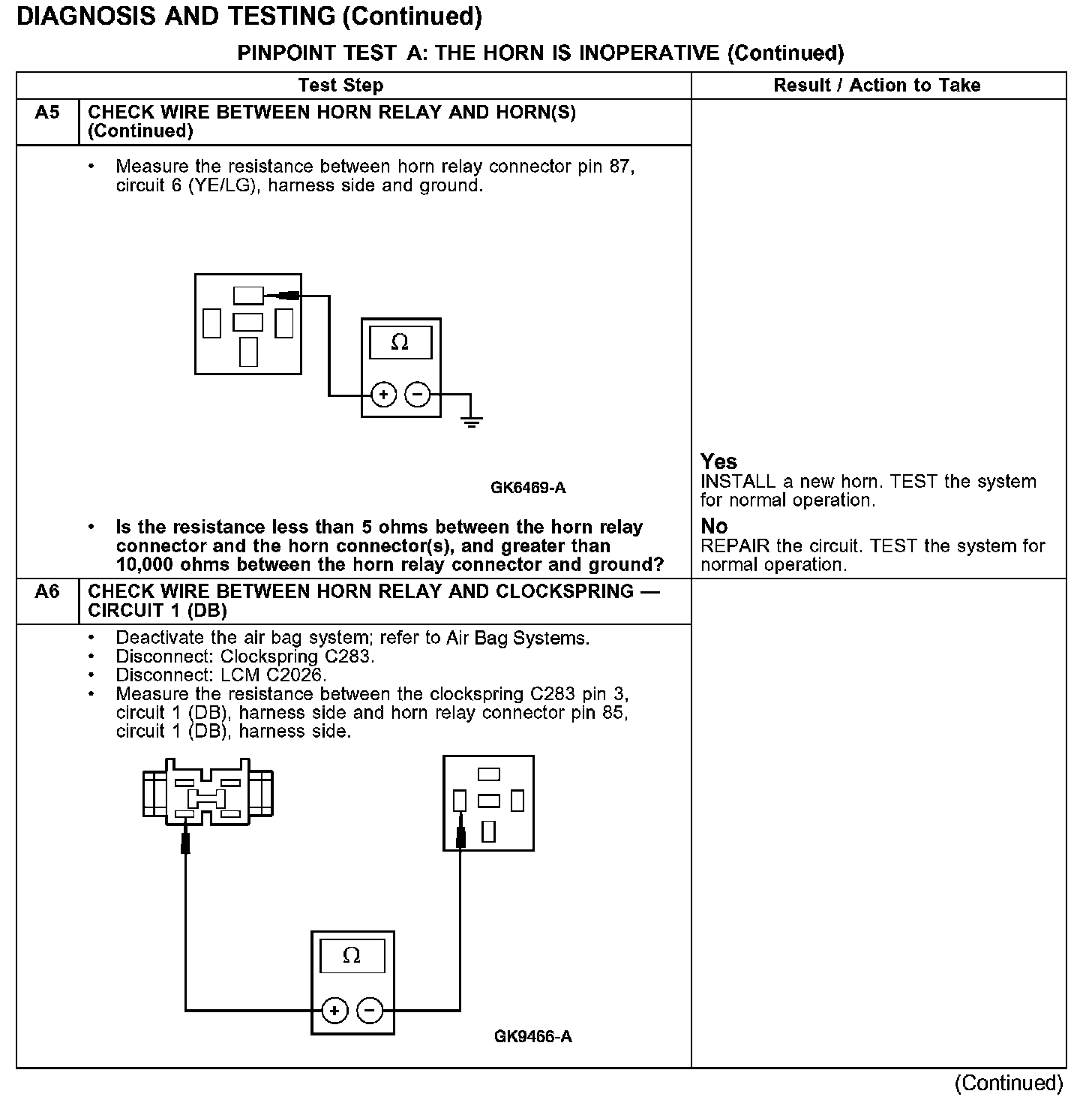

Test A5-A6:

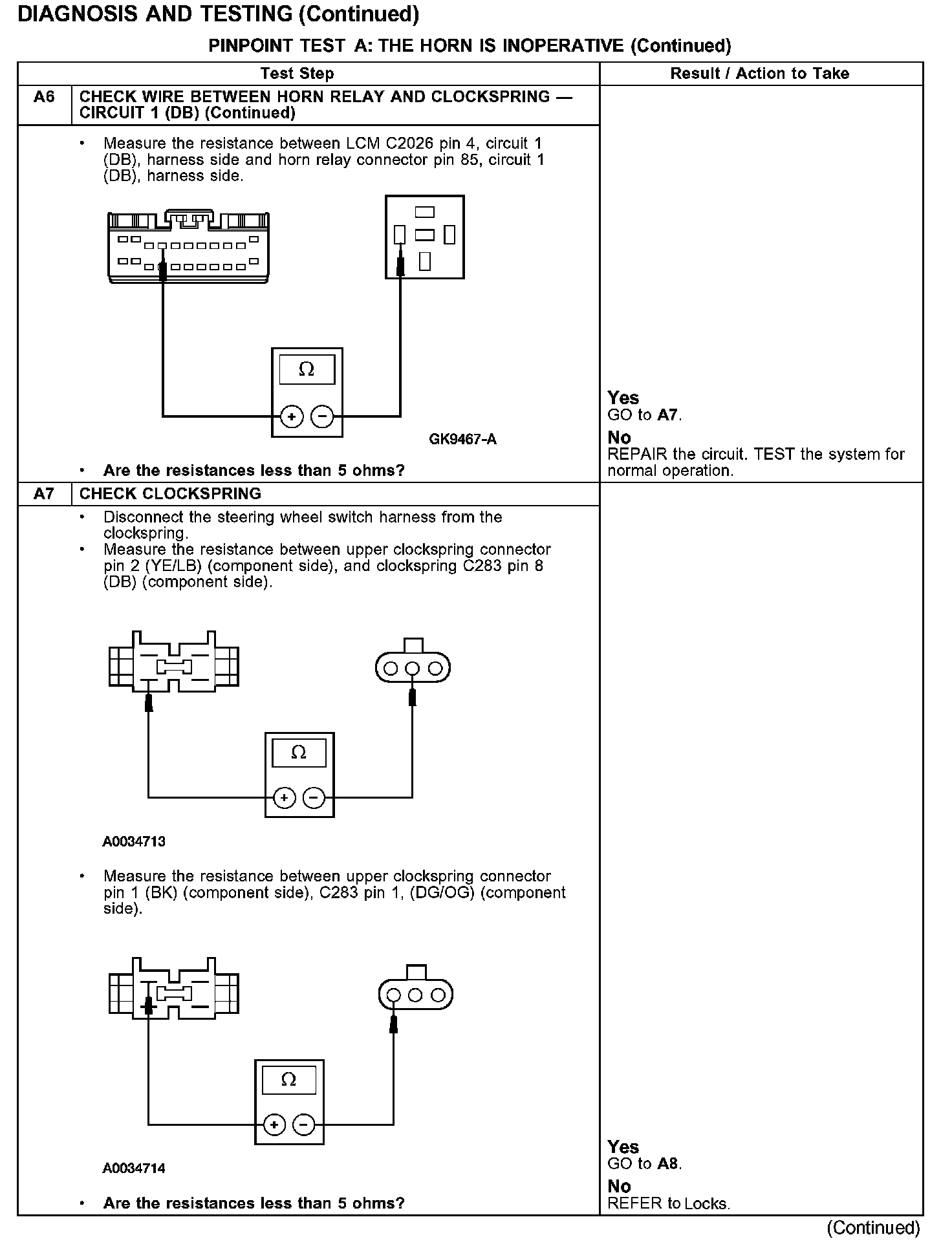

Test A6-A7:

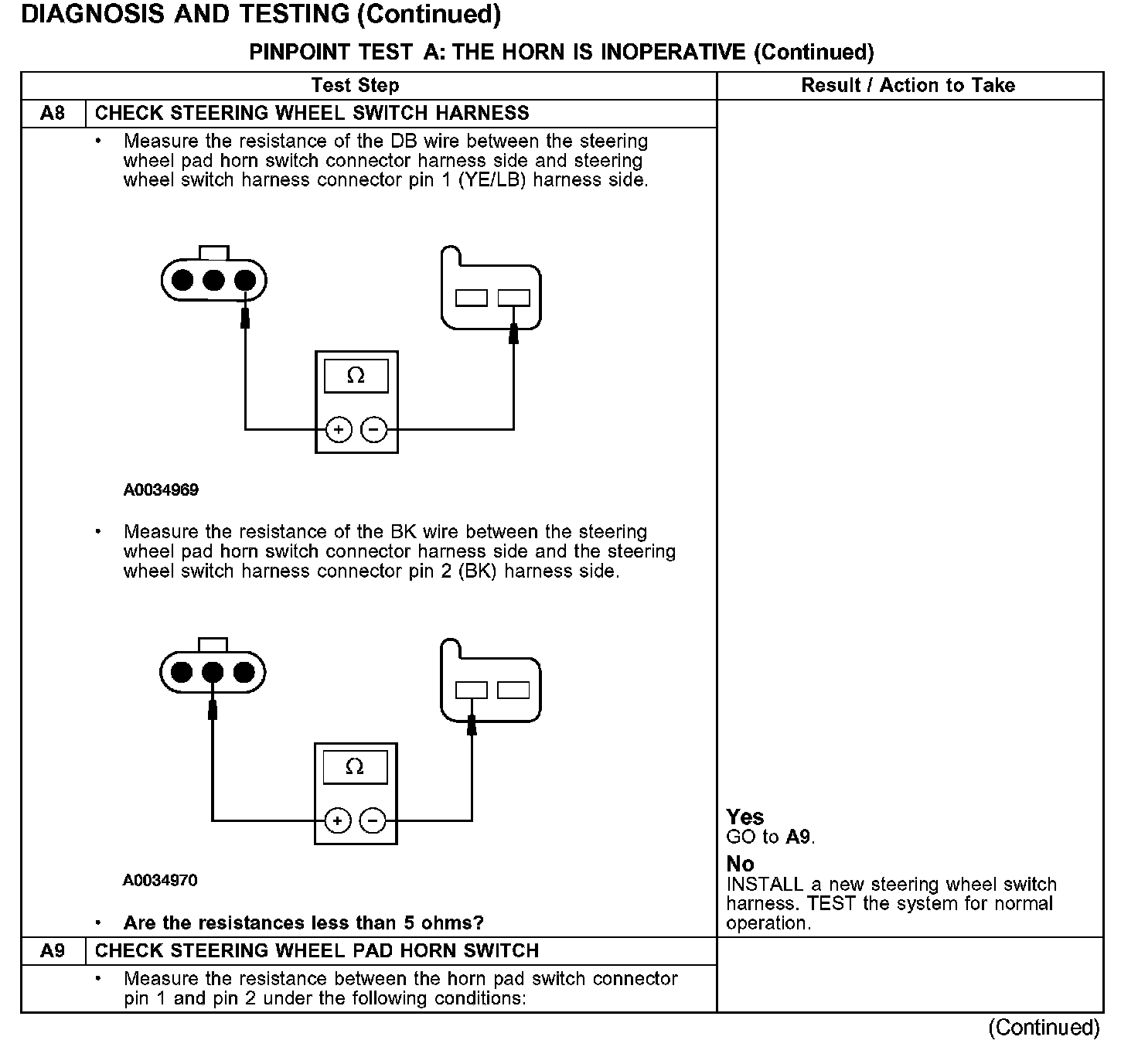

Test A8-A9:

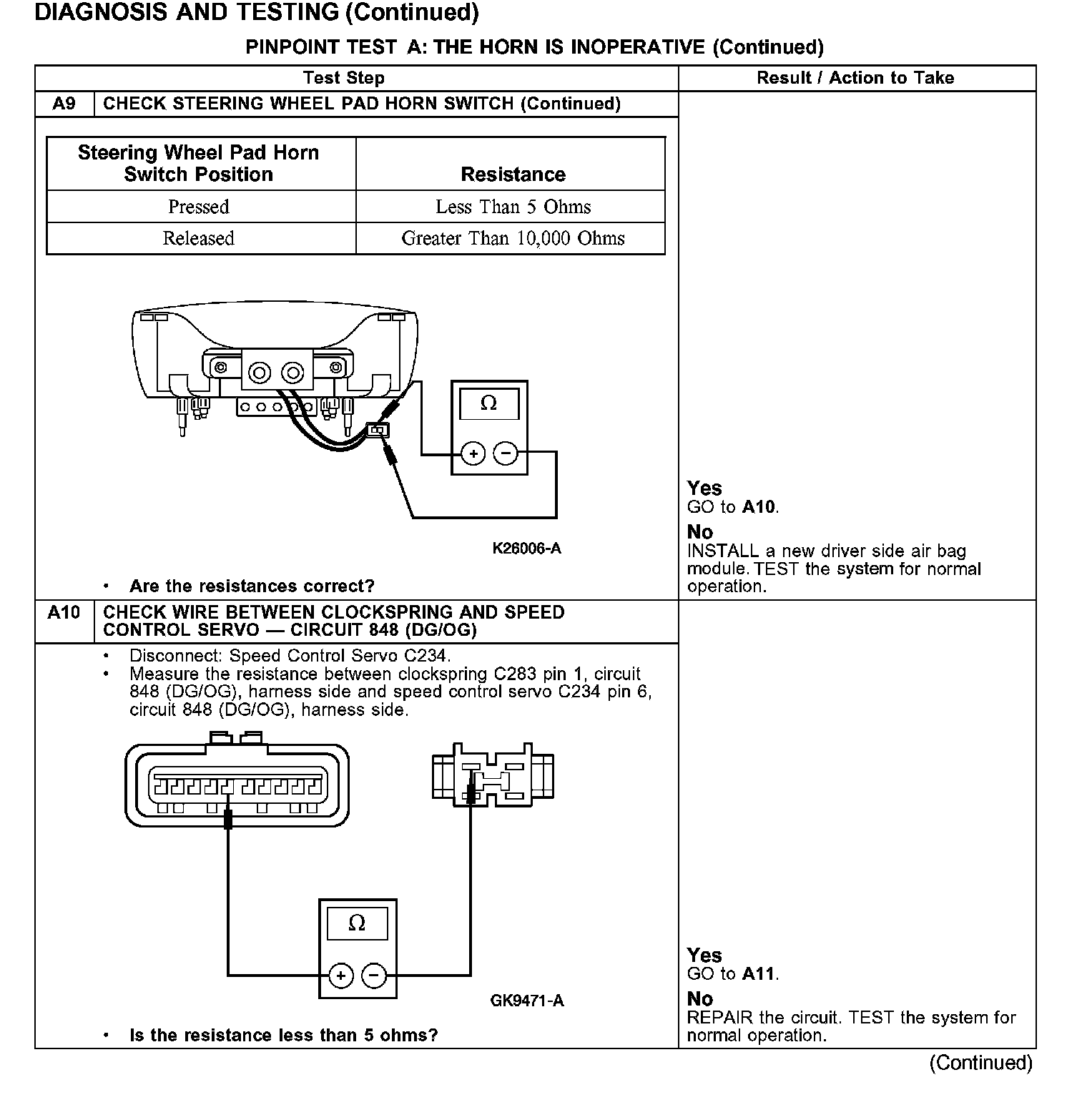

Test A9-A10:






Test A11:
