Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test B

Test B

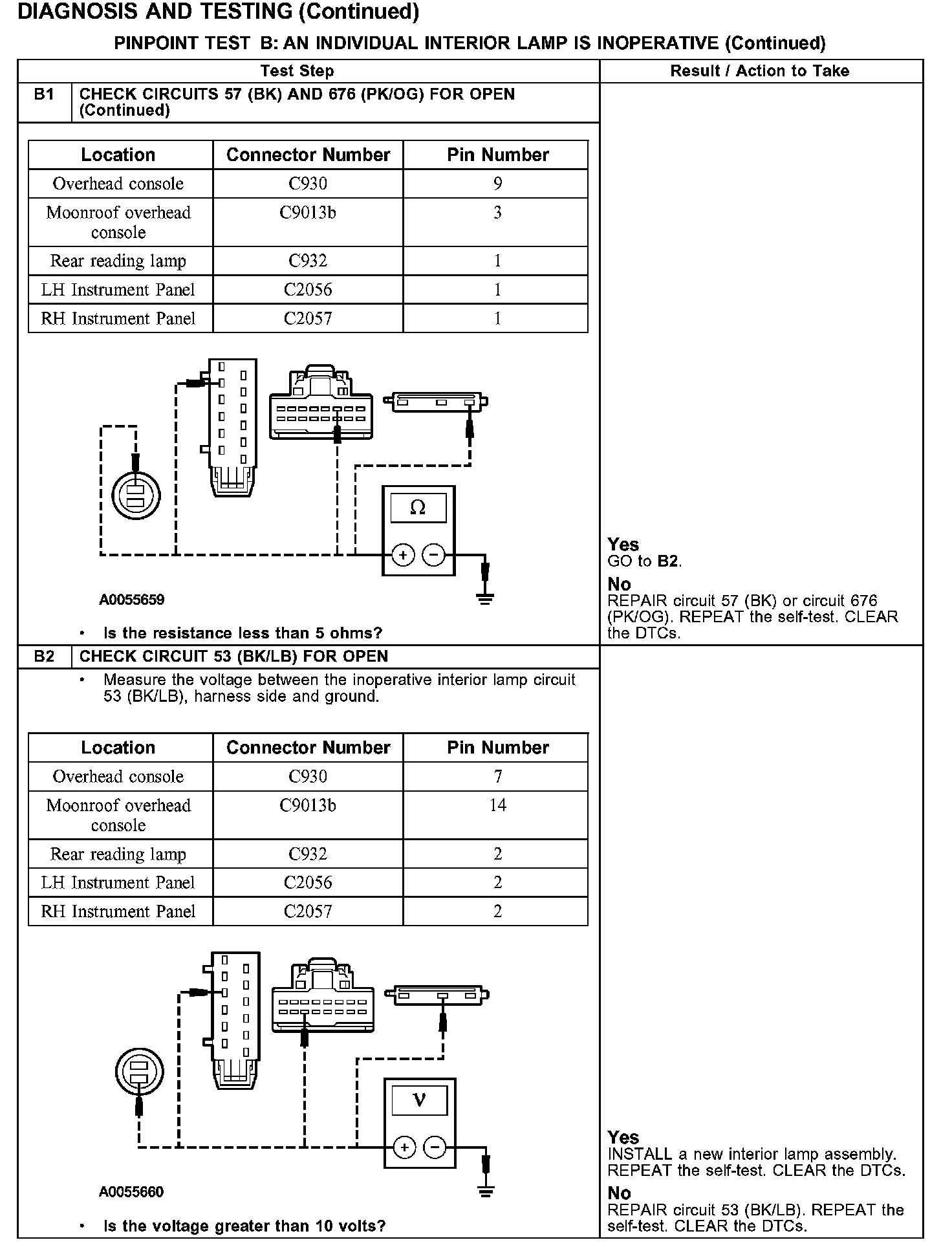

PINPOINT TEST B: AN INDIVIDUAL INTERIOR LAMP IS INOPERATIVE


Test B1:






Test B1-B2:
