Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test H

Test H

PINPOINT TEST H: ONE OR MORE STOPLAMPS ARE INOPERATIVE

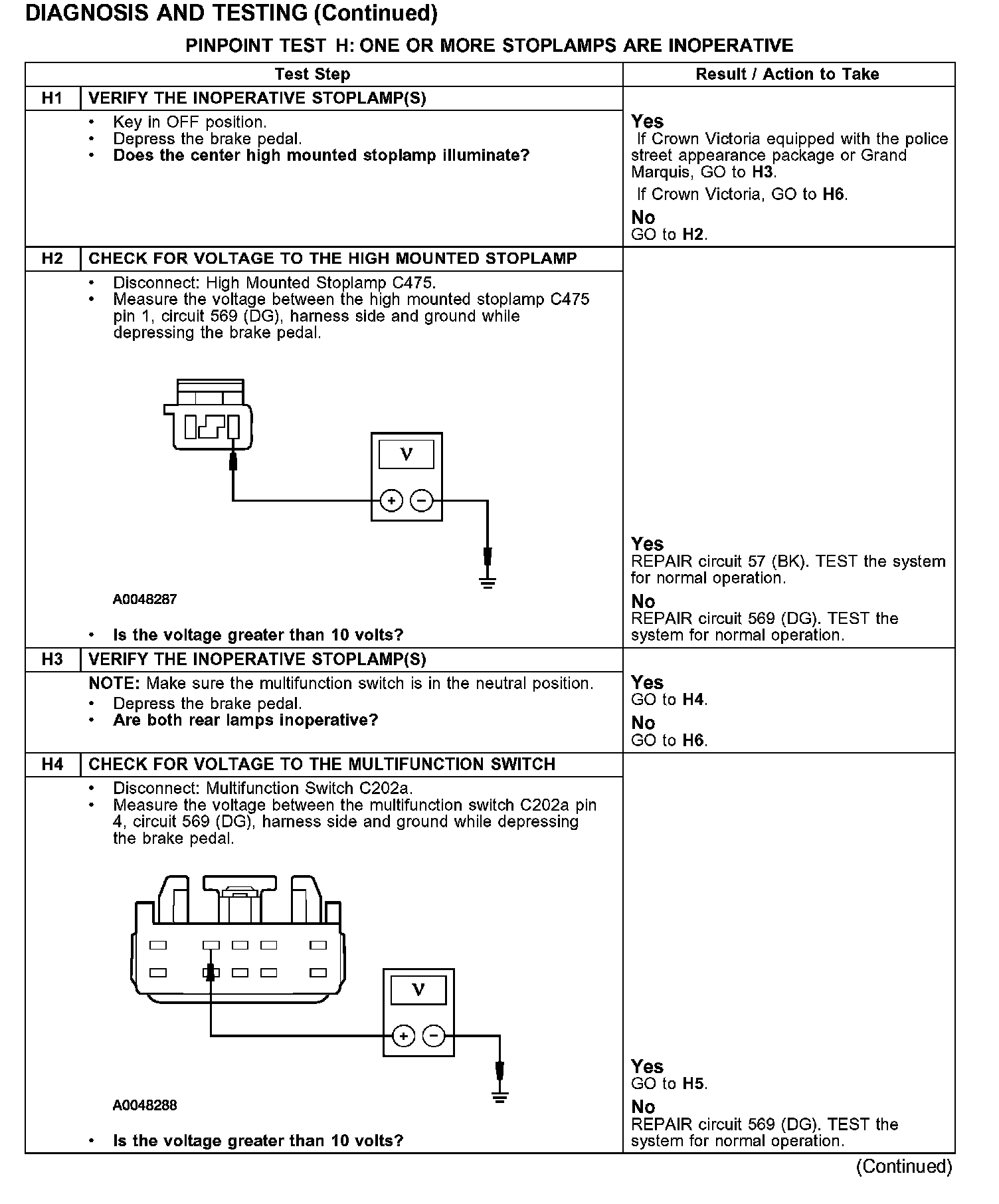

Test H1-H4:

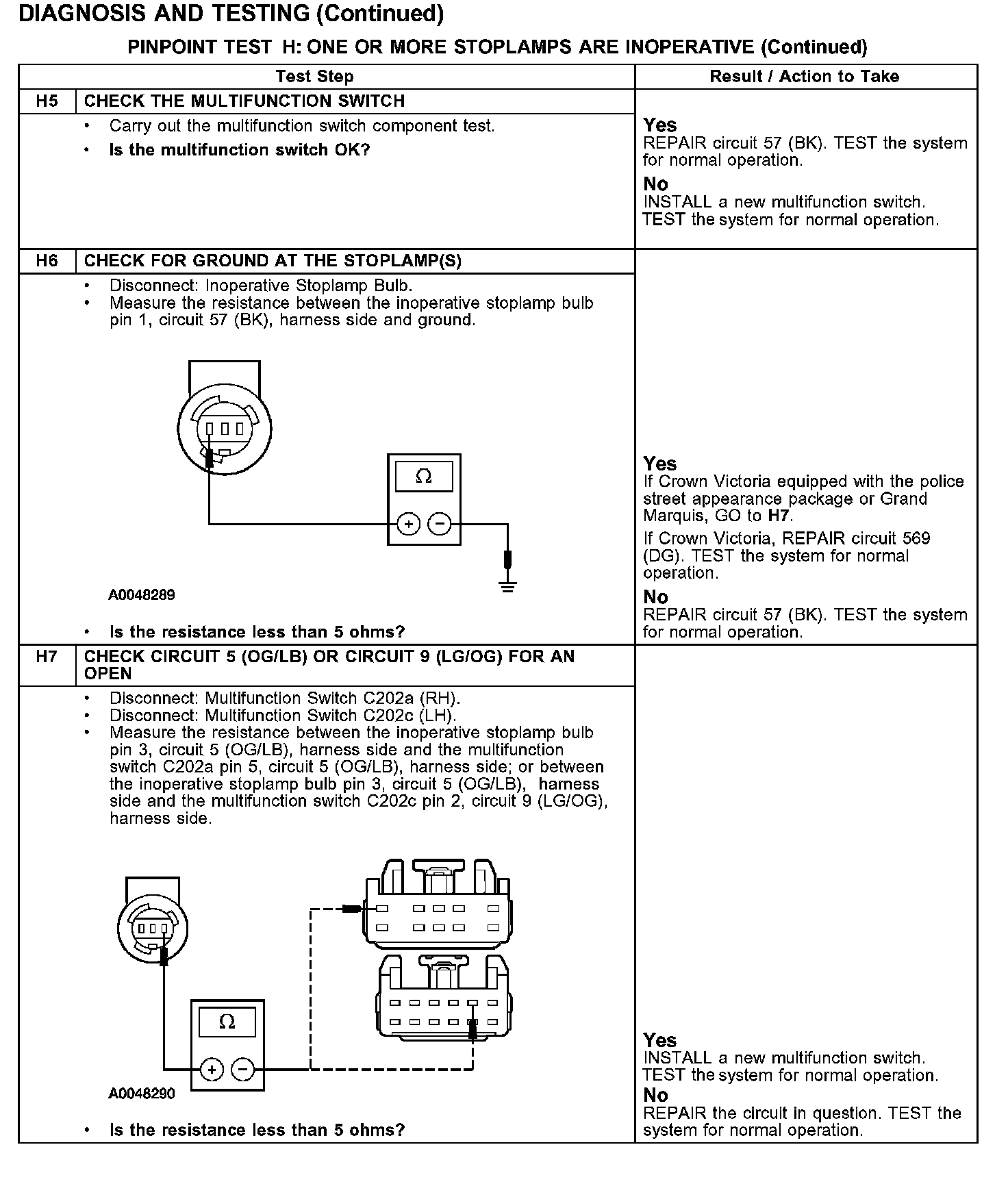

Test H5-H7:
