Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test G

Test G

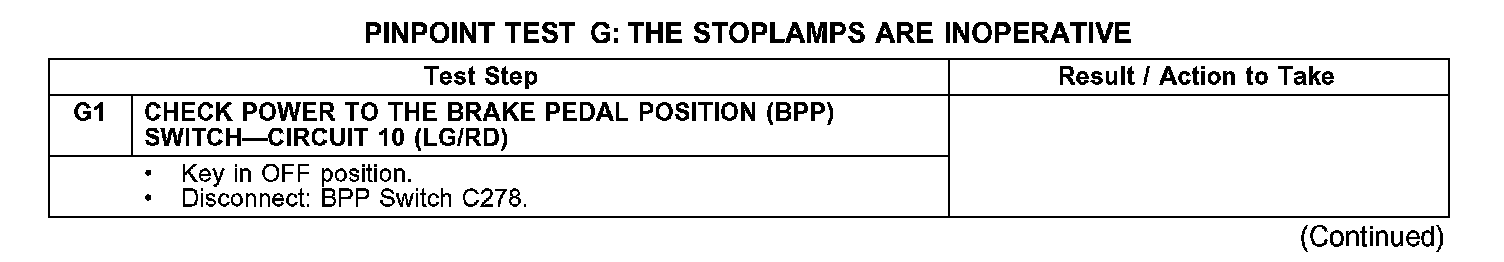

PINPOINT TEST G: THE STOPLAMPS ARE INOPERATIVE


Test G1:

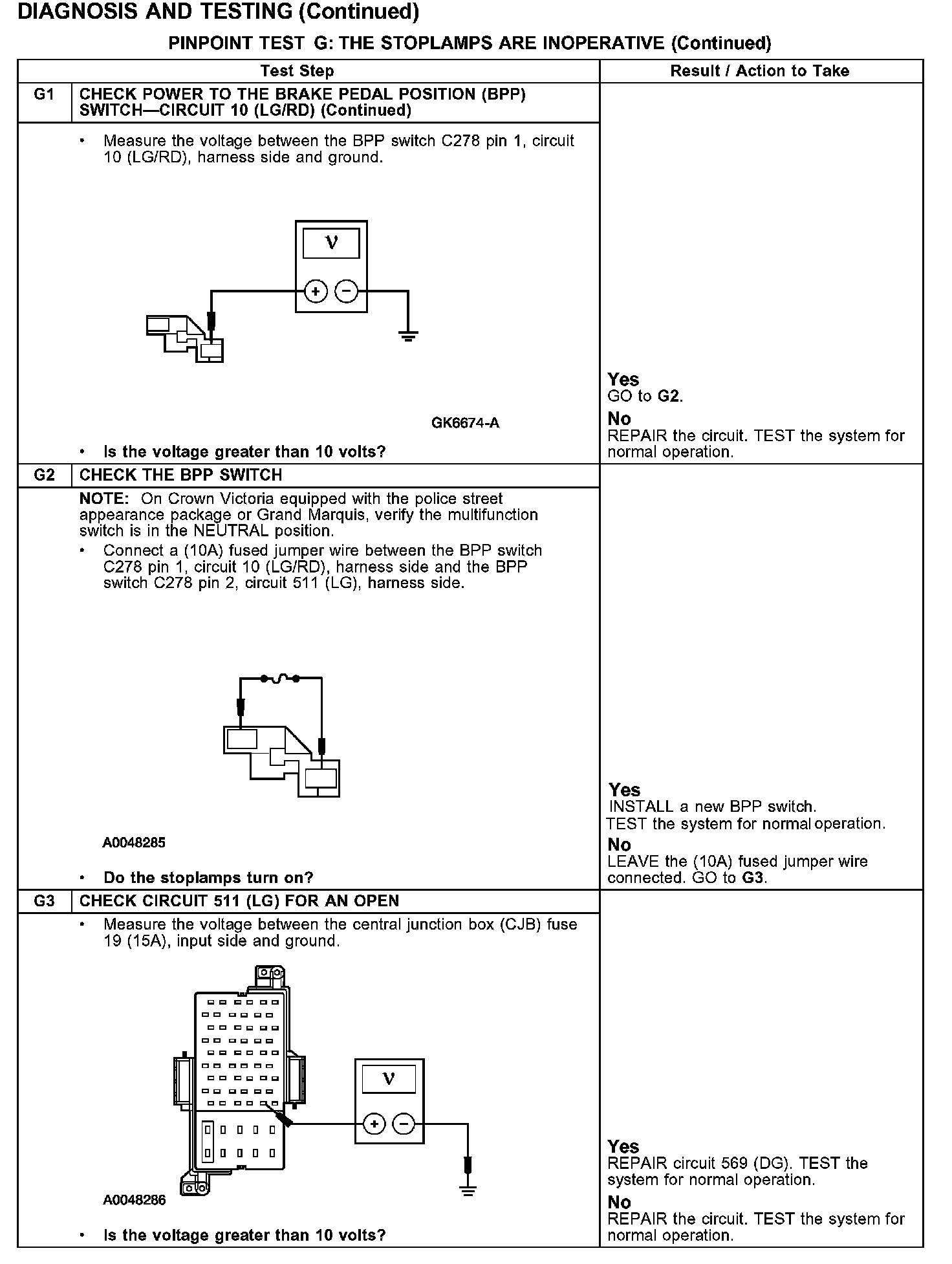

Test G1-G3:
