Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Warning Devices
>>
Test A
Test A

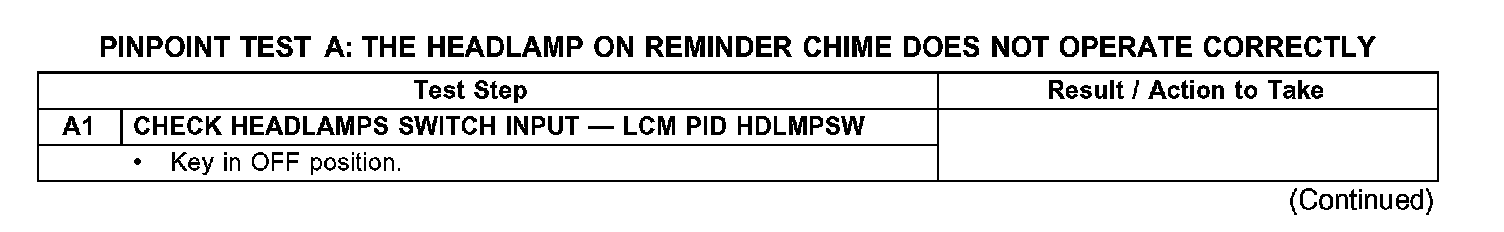

PINPOINT TEST A: THE HEADLAMP ON REMINDER CHIME DOES NOT OPERATE CORRECTLY
Test A1:

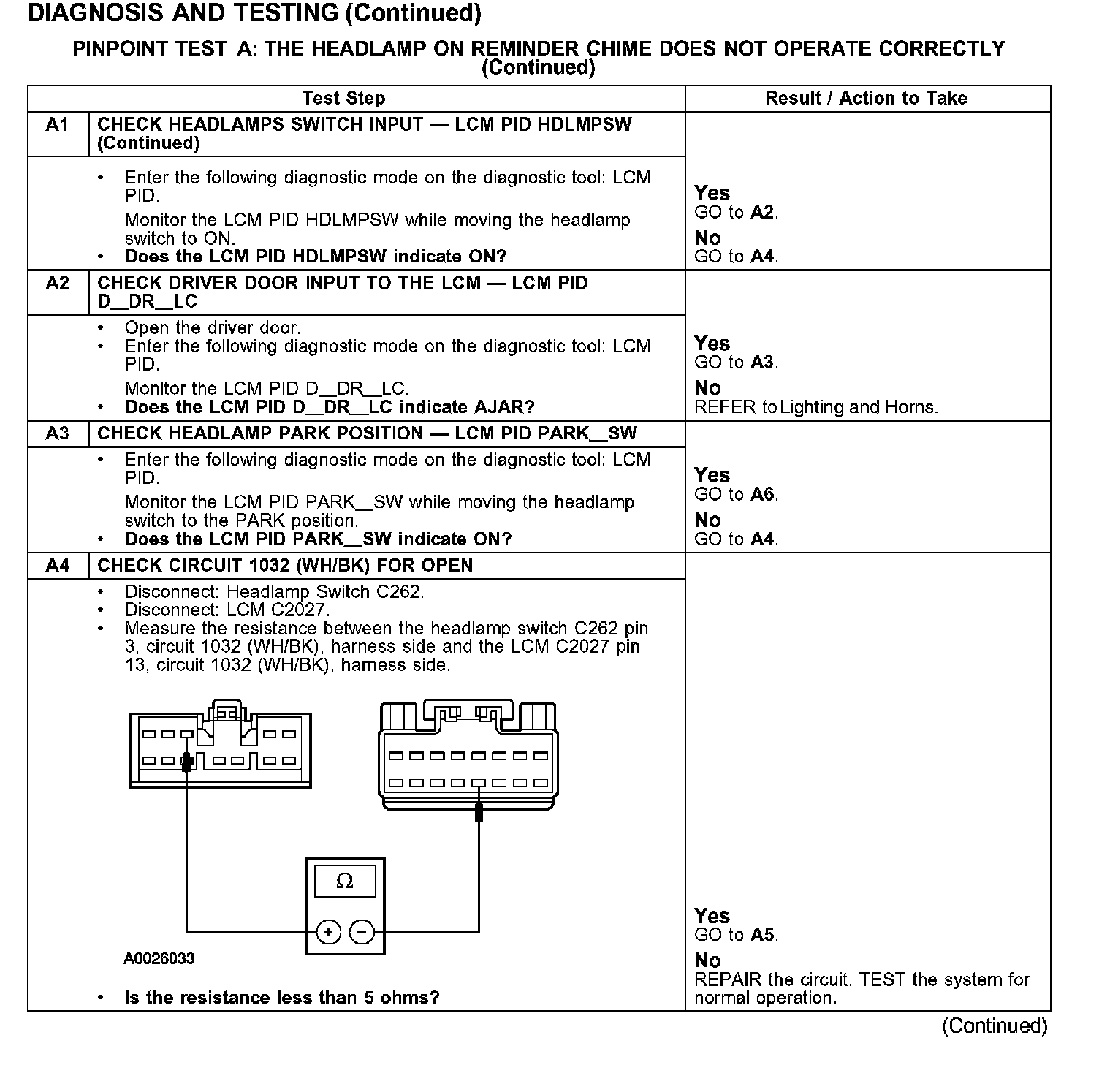

Test A1-A4:
Test A5-A6:
