Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test V

Test V

PINPOINT TEST V: THE HAZARD INDICATOR IS NEVER ON

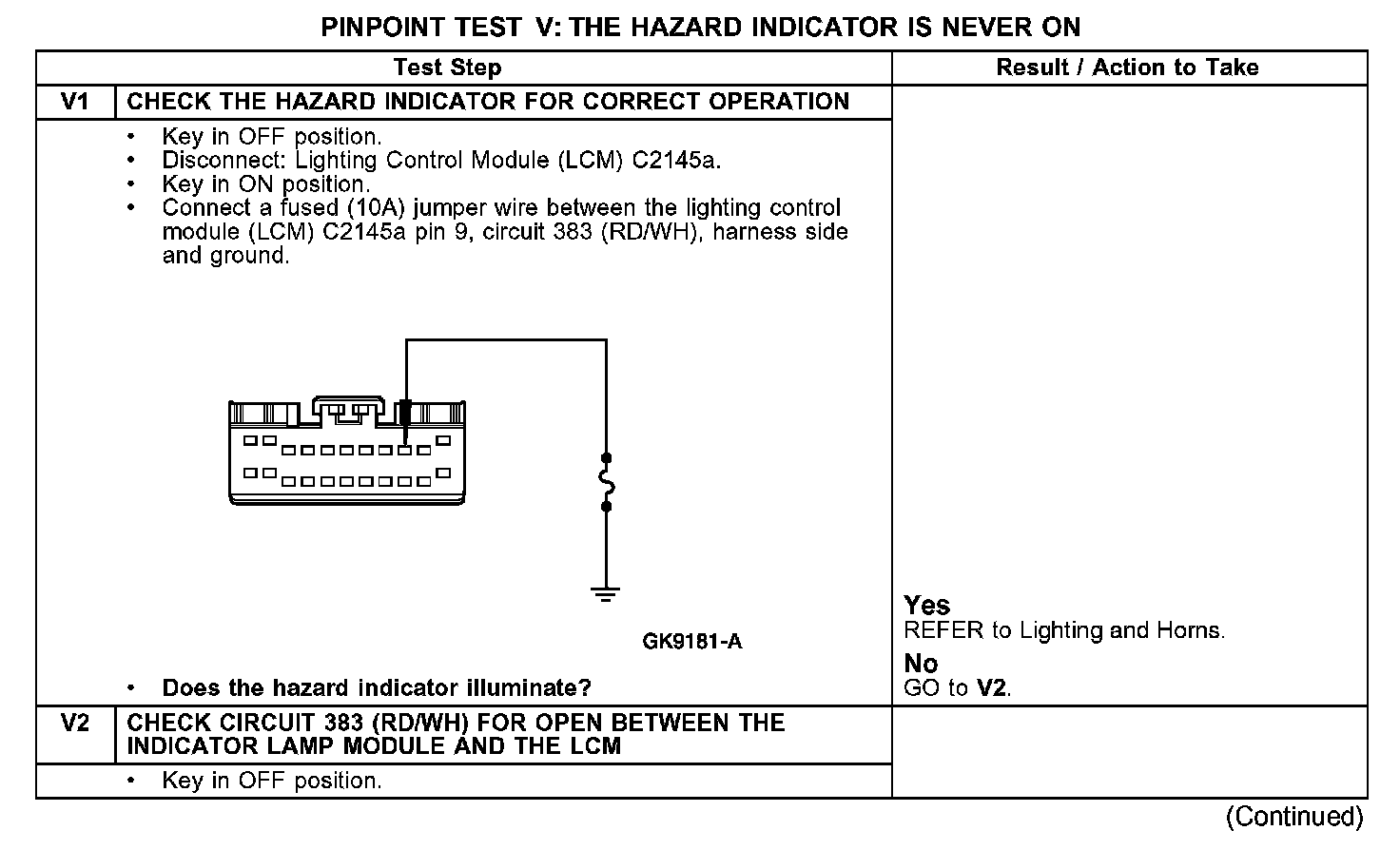

Test V1-V2:

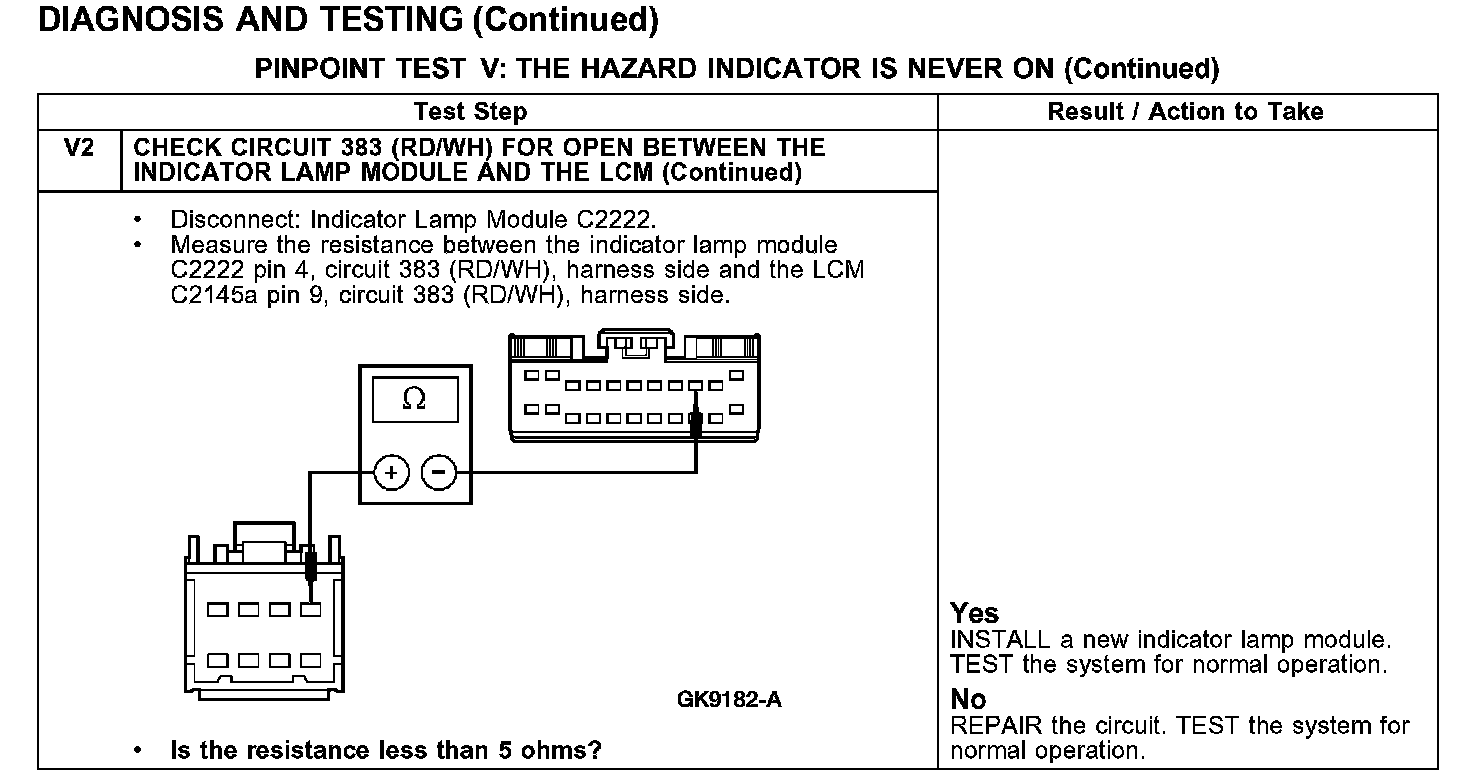

Test V2 Continued:
