Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test T

Test T

PINPOINT TEST T: THE TRUNK AJAR INDICATOR IS NEVER ON

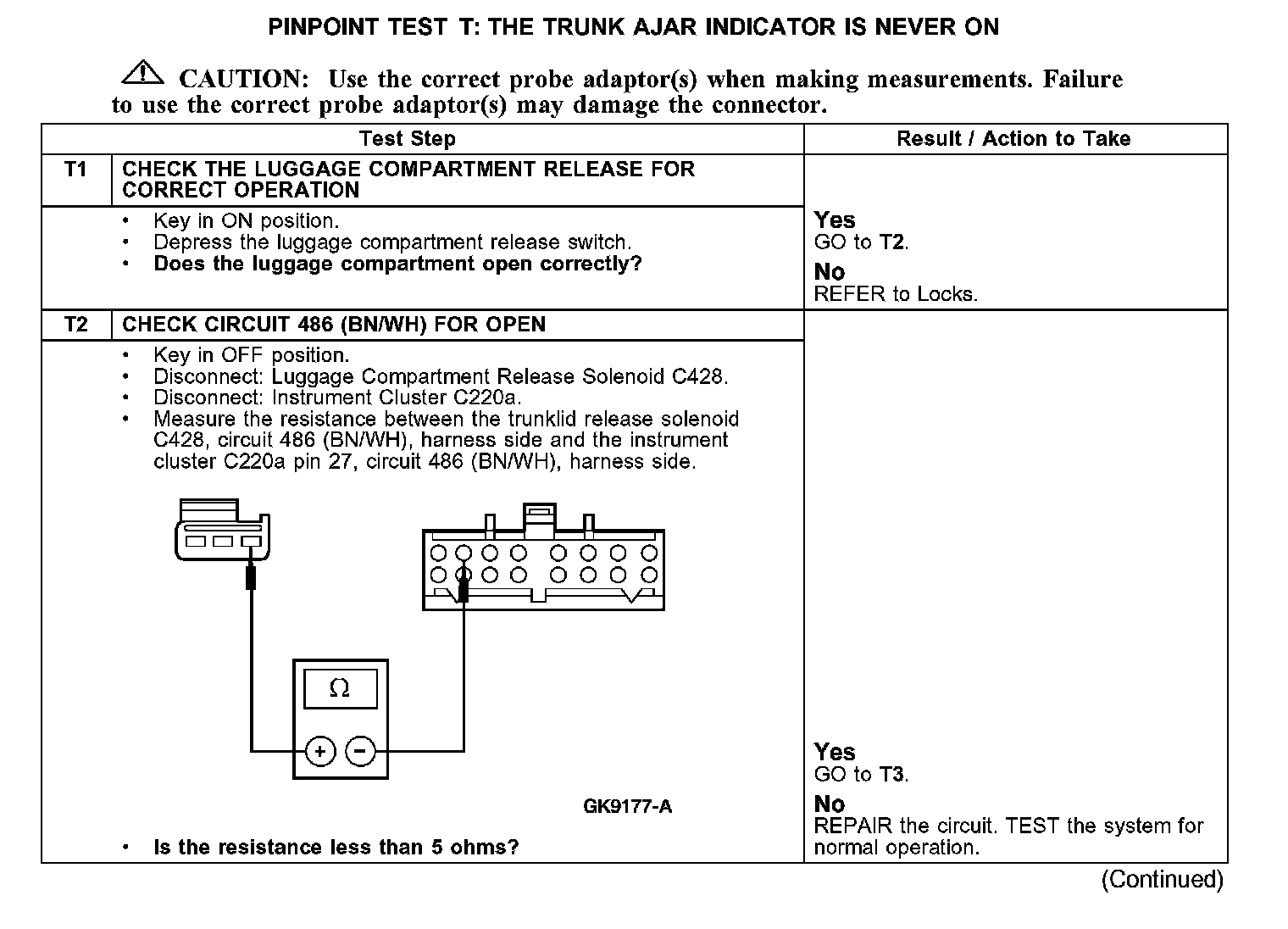

Test T1-T2:

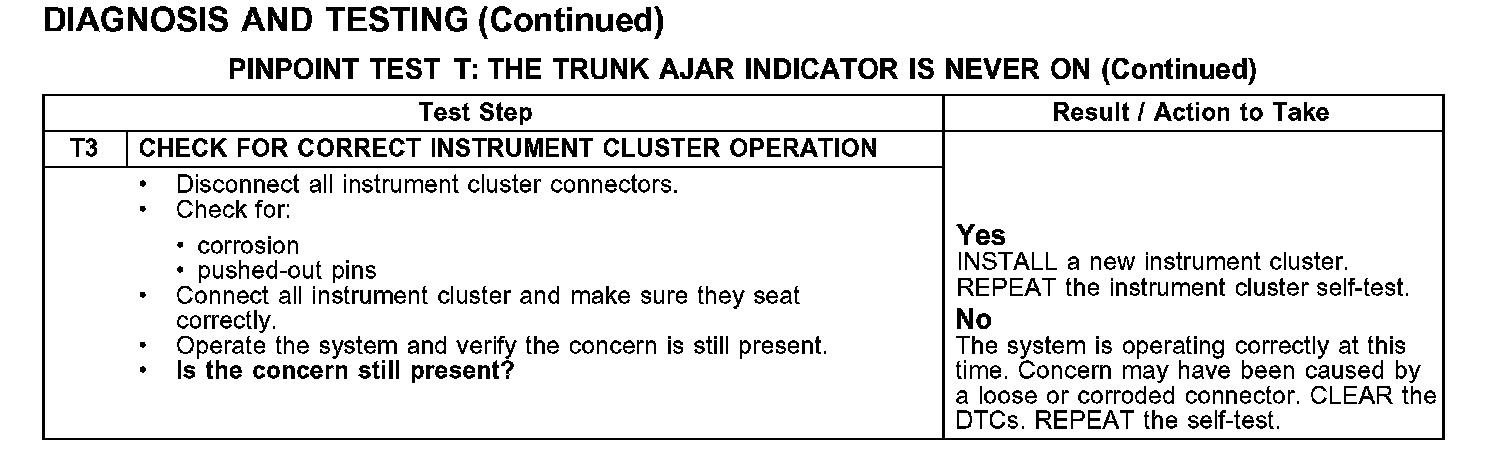

Test T3:
