Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test M

Test M

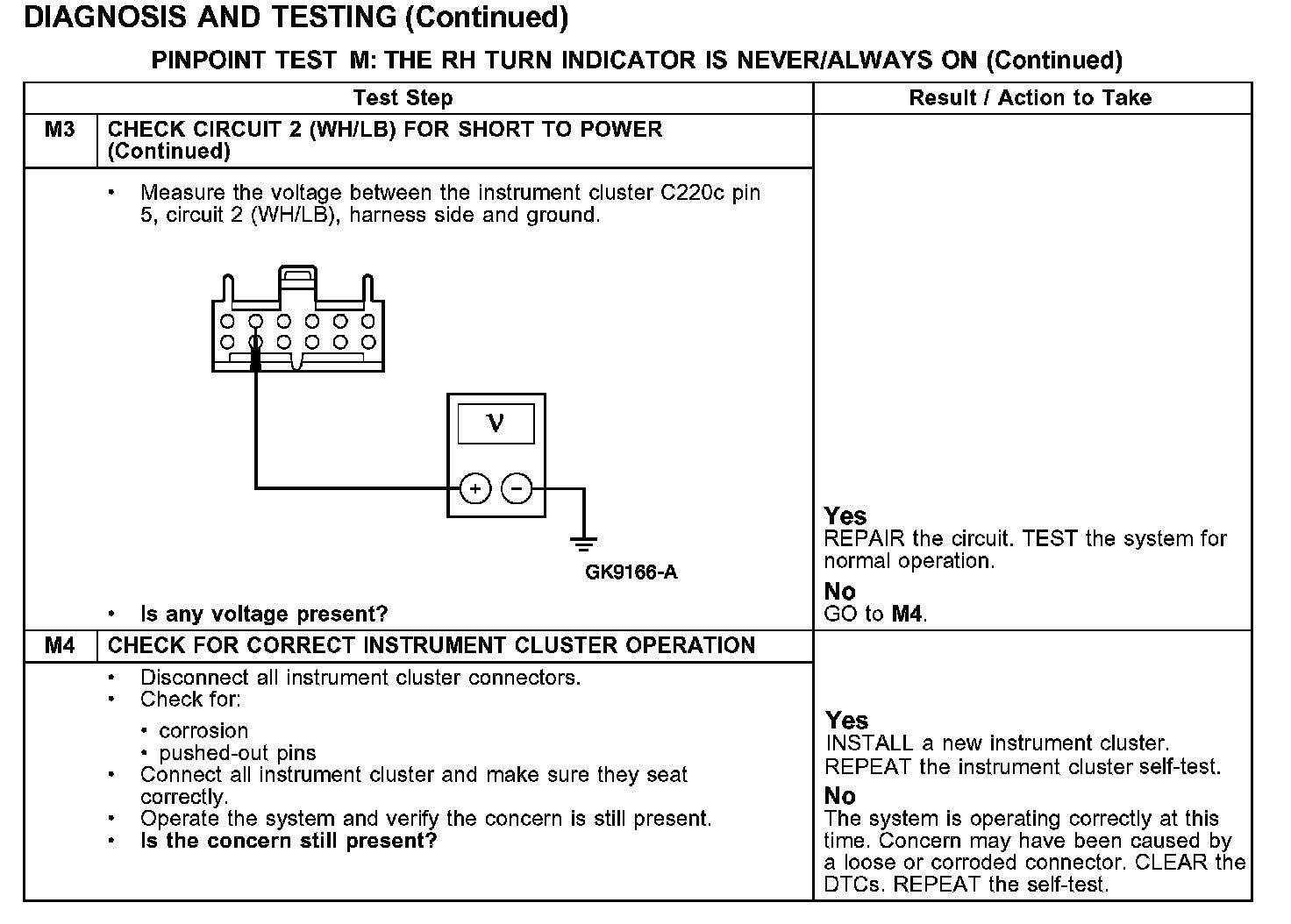

PINPOINT TEST M: THE RH TURN INDICATOR IS NEVER/ALWAYS ON


Test M1-M3:






Test M3-M4:
