Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test L

Test L

PINPOINT TEST L: THE LH TURN INDICATOR IS NEVER/ALWAYS ON

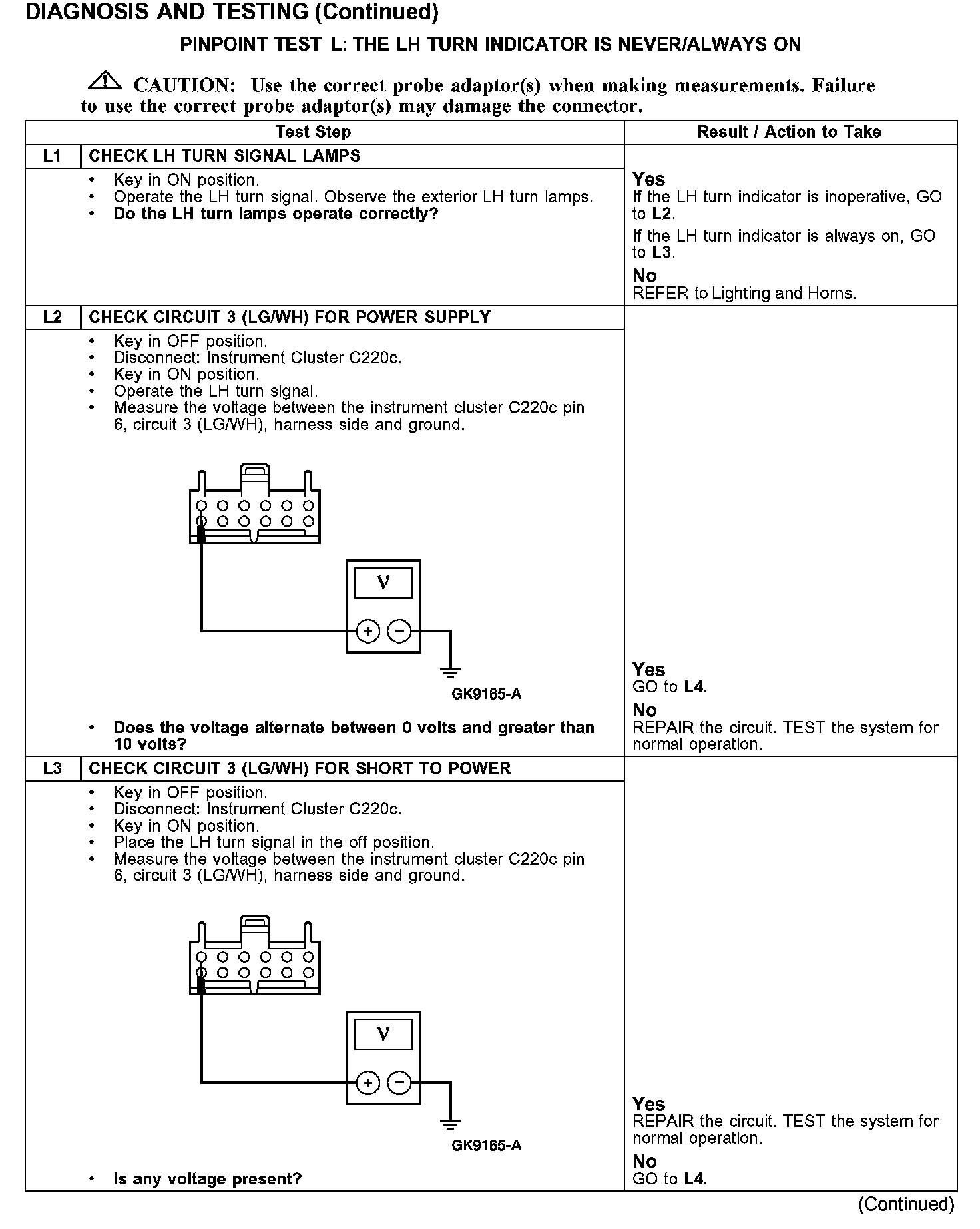

Test L1-L3:

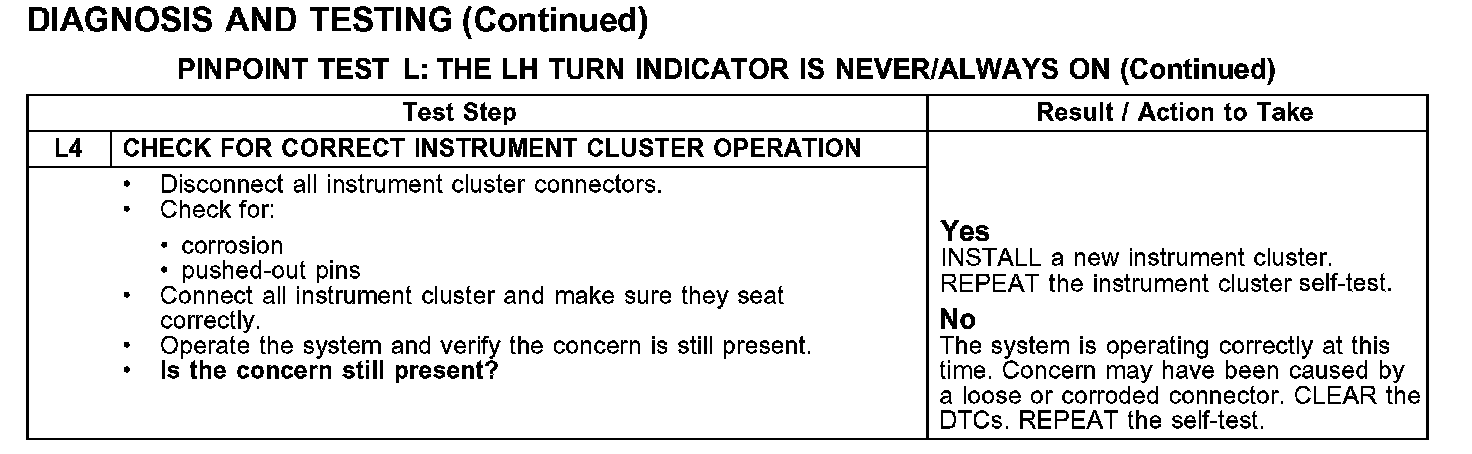

Test L4:
