Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test D

Test D

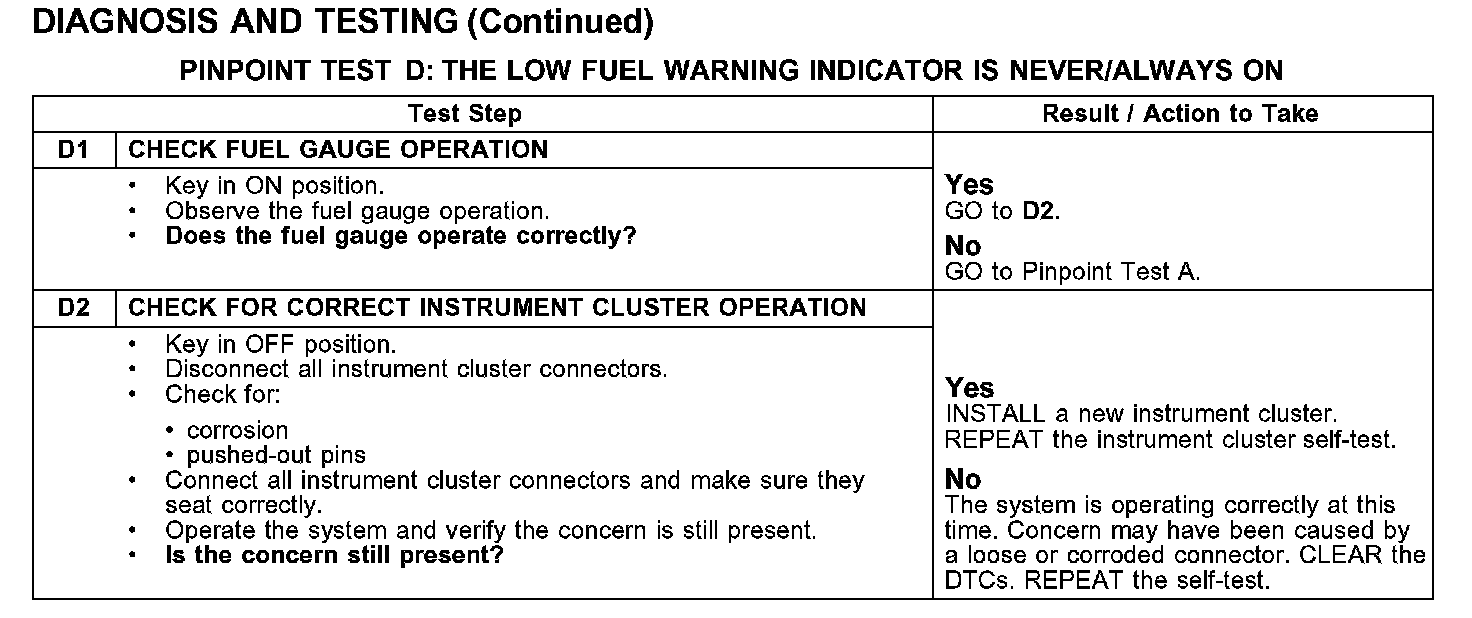

PINPOINT TEST D: THE LOW FUEL WARNING INDICATOR IS NEVER/ALWAYS ON


Test D1-D2:
