FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test S
Test S

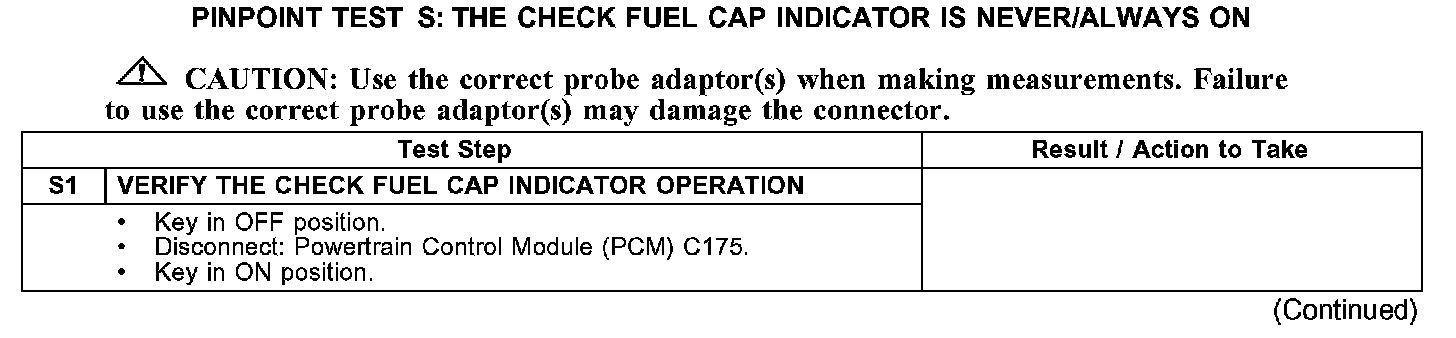

PINPOINT TEST S: THE CHECK FUEL CAP INDICATOR IS NEVER/ALWAYS ON

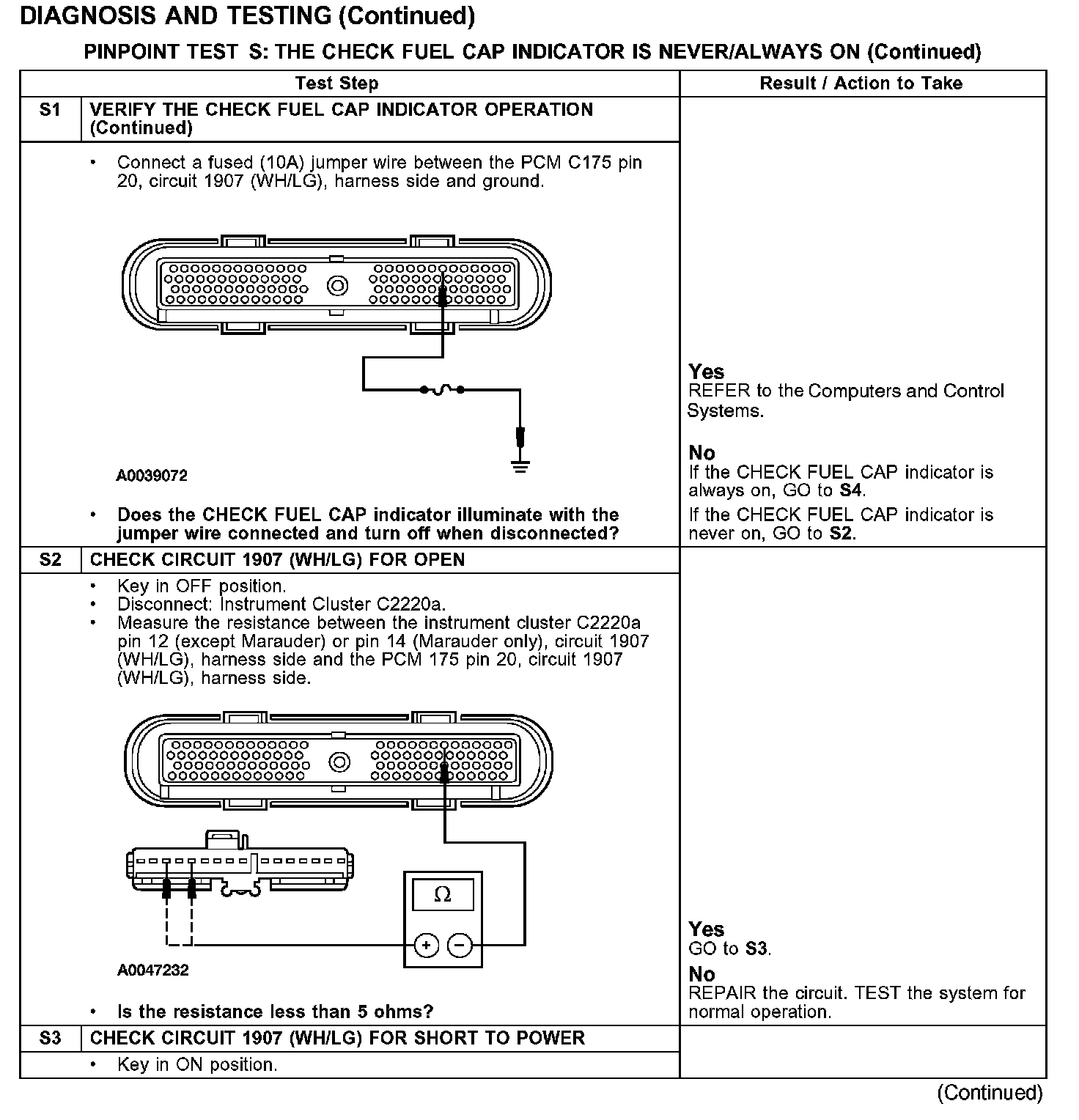

Test S1:
Test S1-S3:

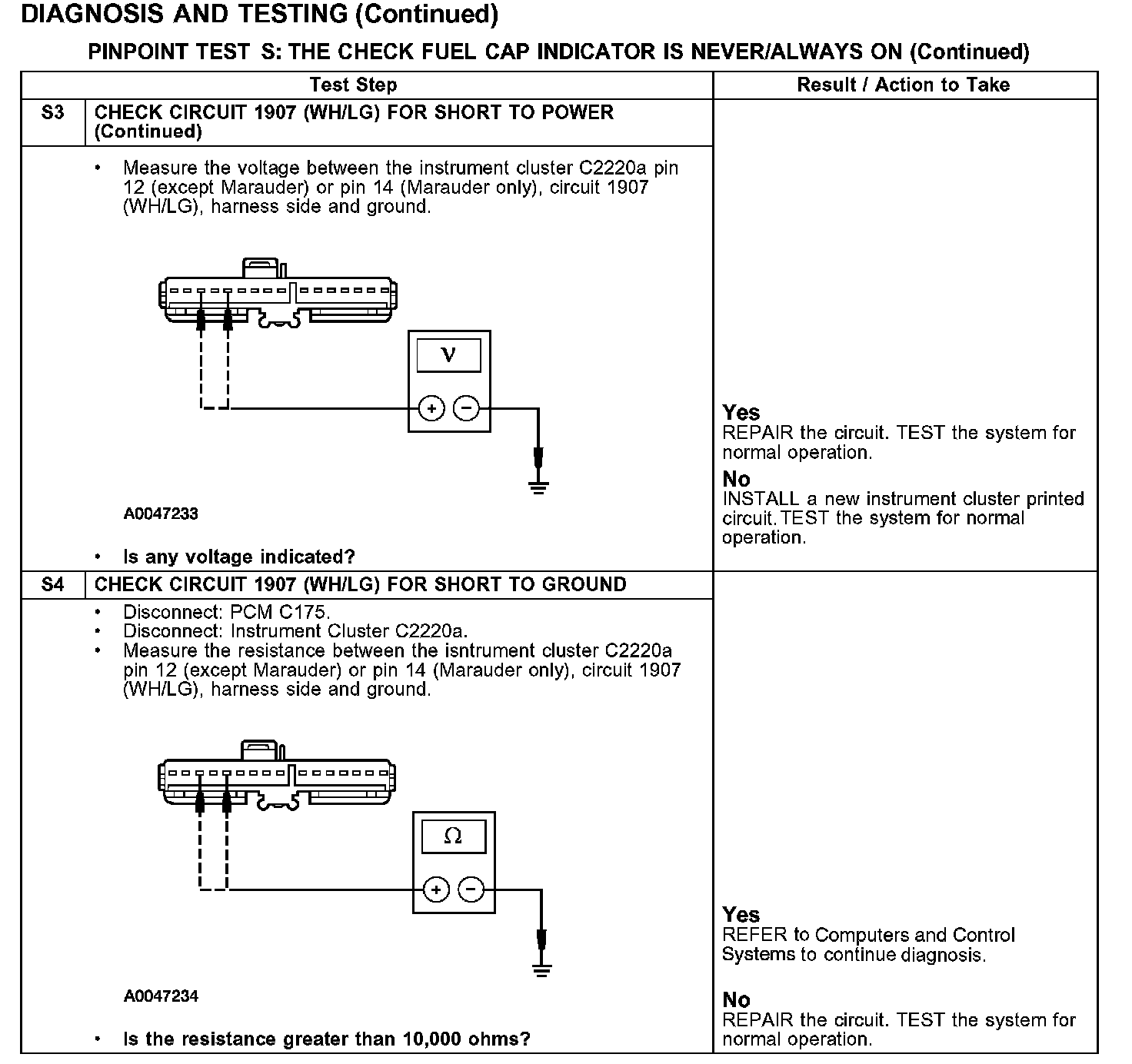

Test S3-S4:
