Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test P
Test P
PINPOINT TEST P: THE O/D OFF INDICATOR IS NEVER ON

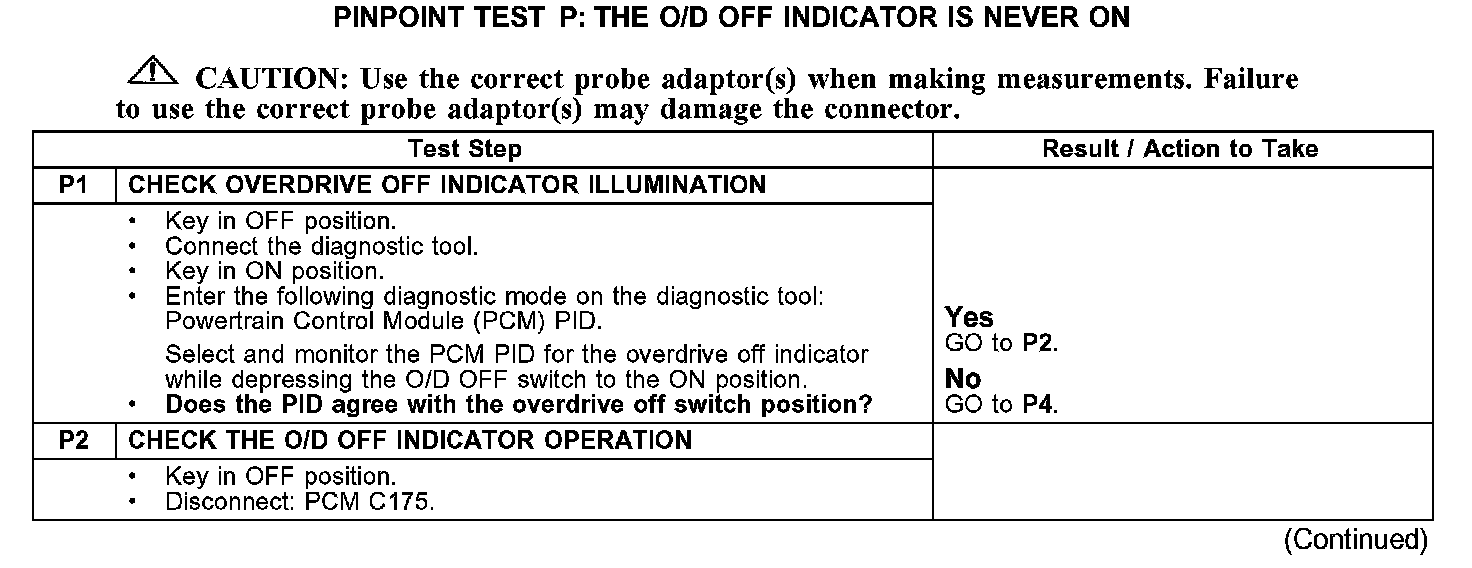

Test P1-P2:

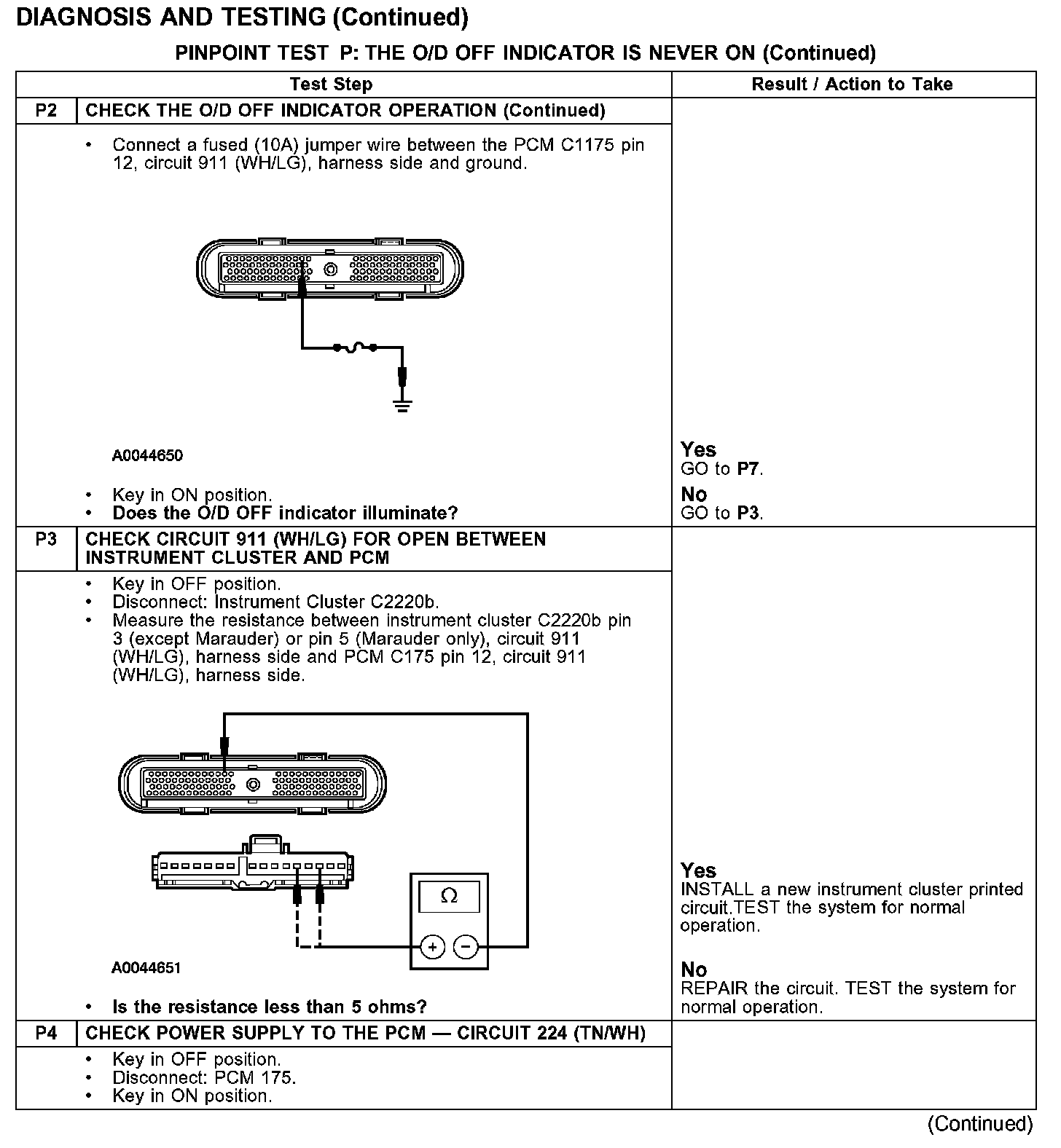

Test P2-P4:

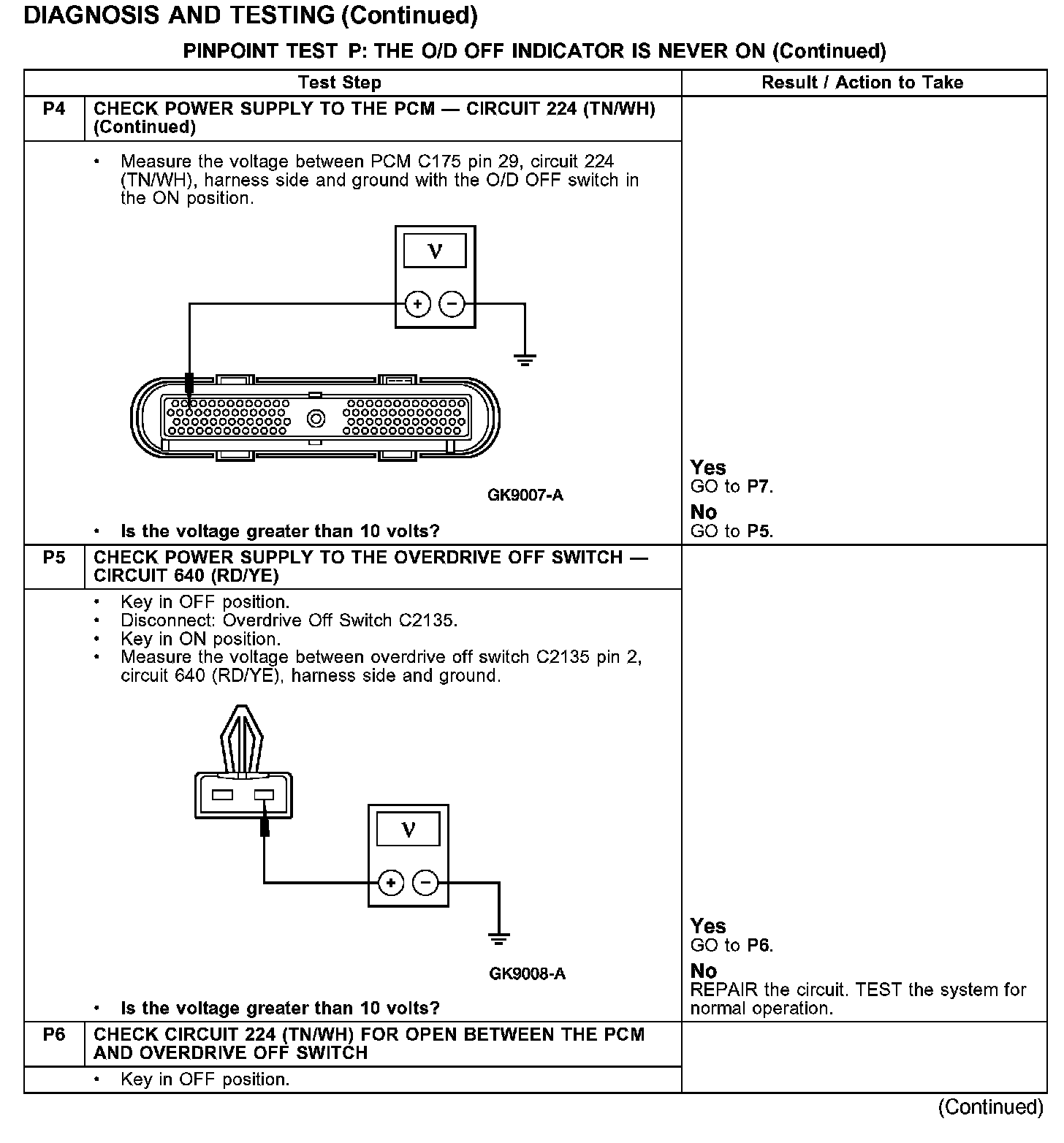

Test P4-P6:

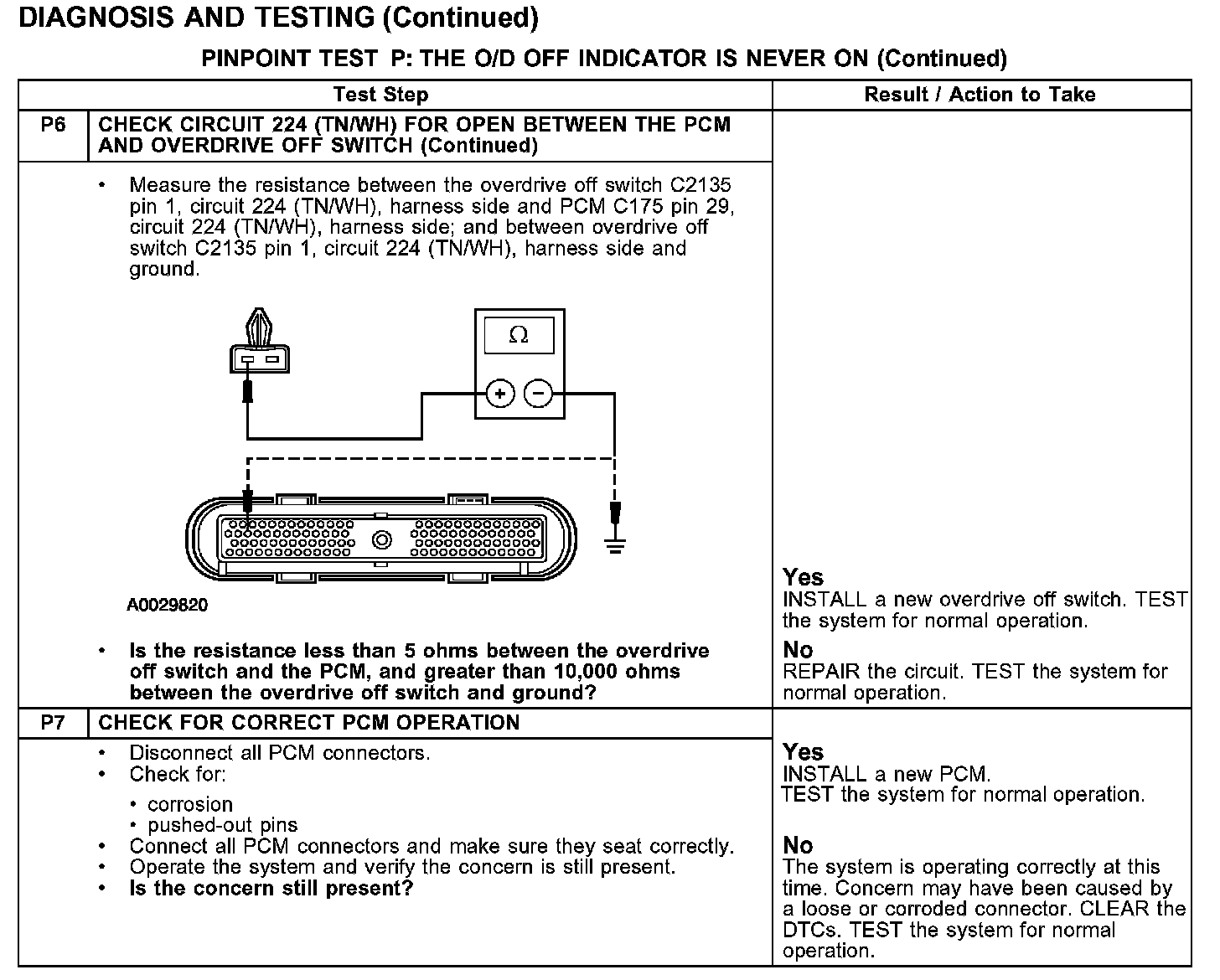

Test P6-P7:
