Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test K
Test K
PINPOINT TEST K: THE AIR SUSPENSION INDICATOR IS NEVER/ALWAYS ON

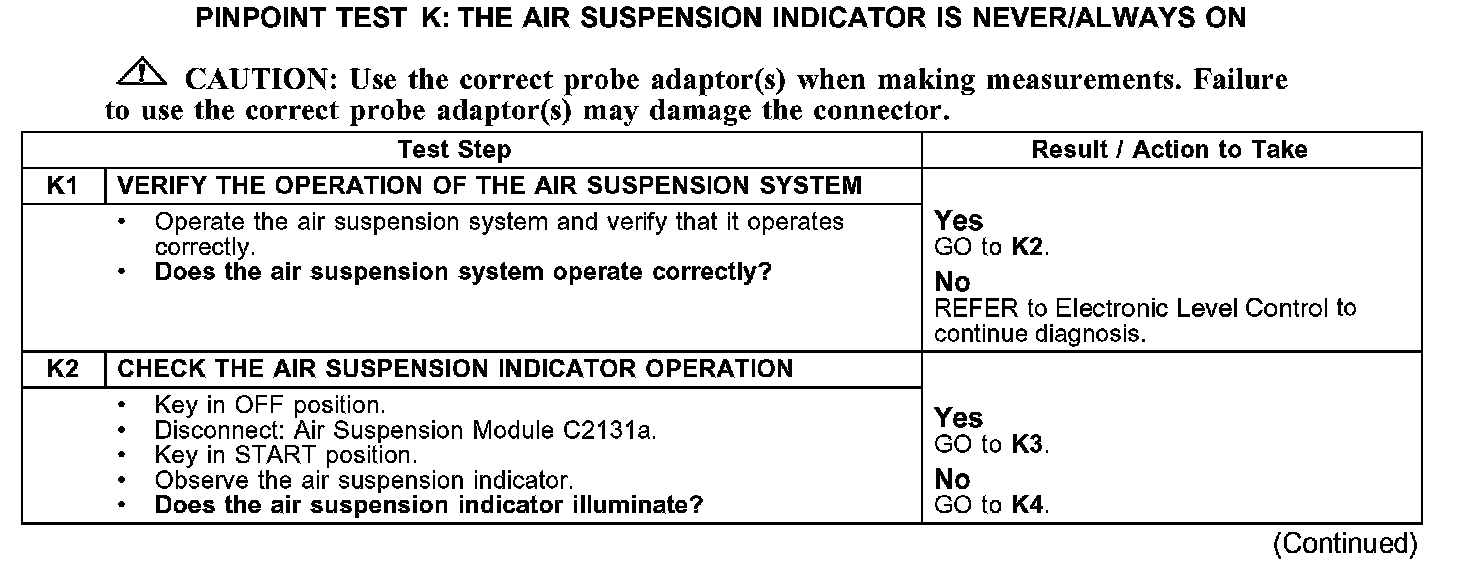

Test K1-K2:

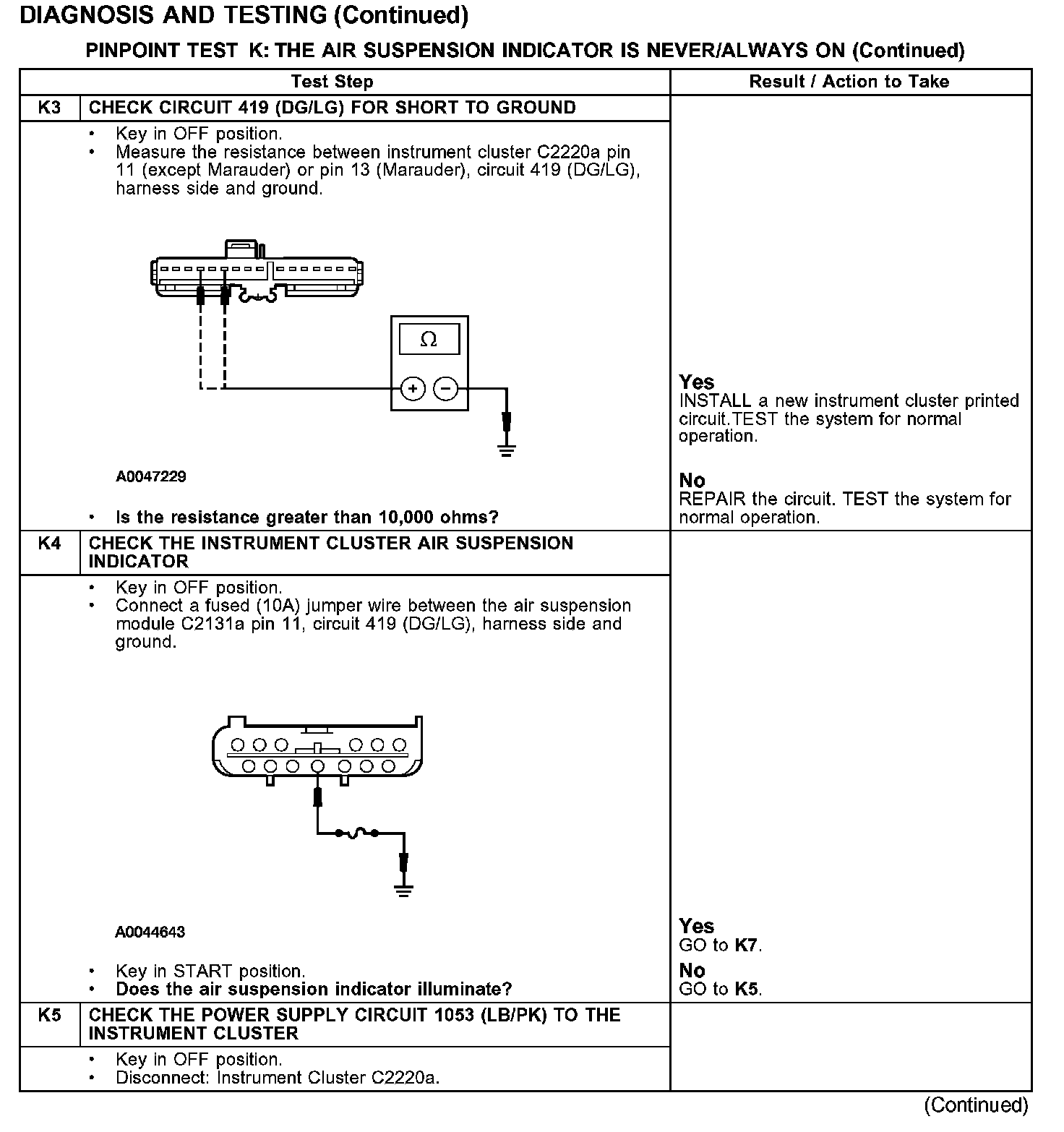

Test K3-K5:

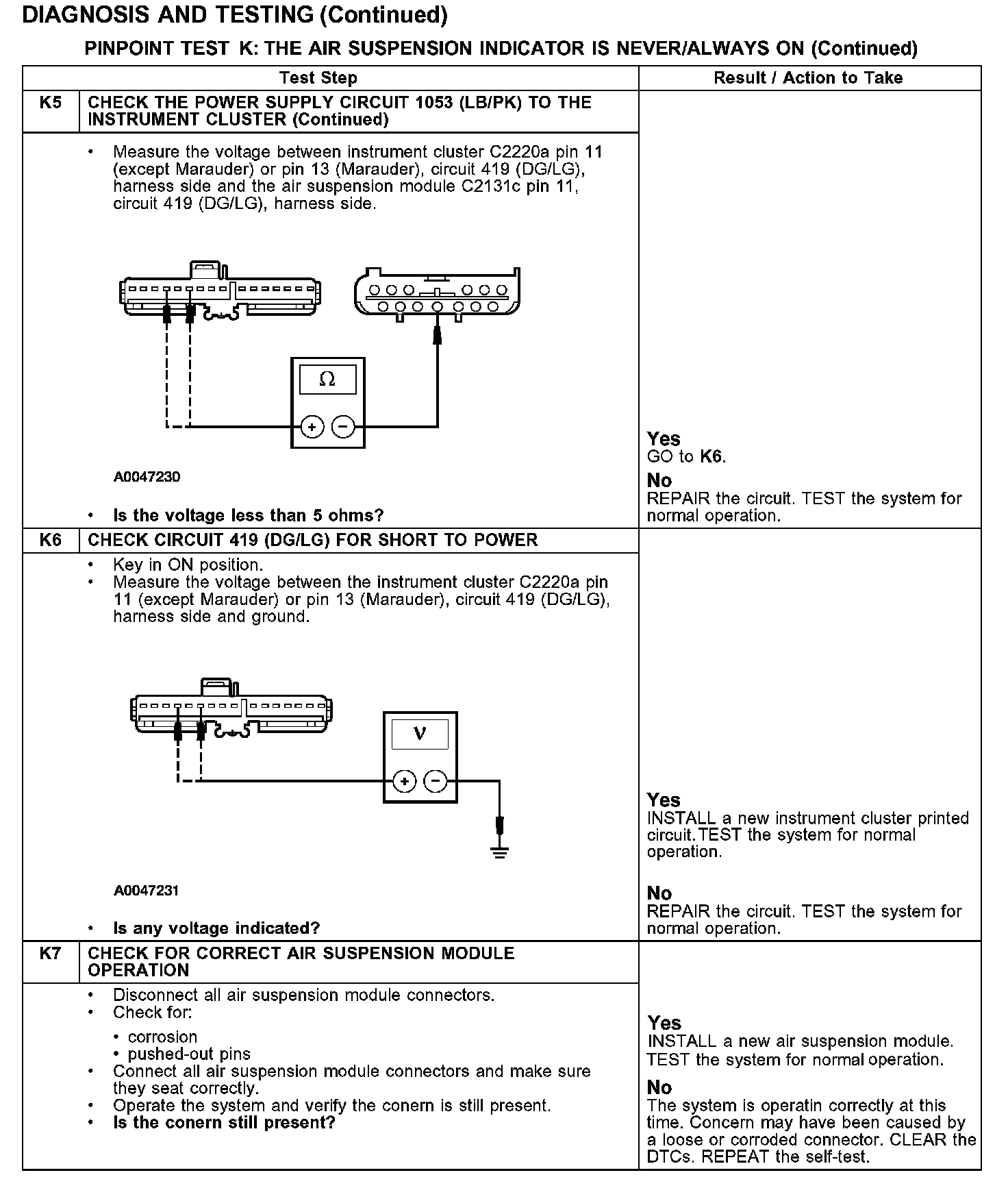

Test K5-K7:
