FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test H
Test H
PINPOINT TEST H: THE
BRAKE WARNING INDICATOR
IS NEVER ON

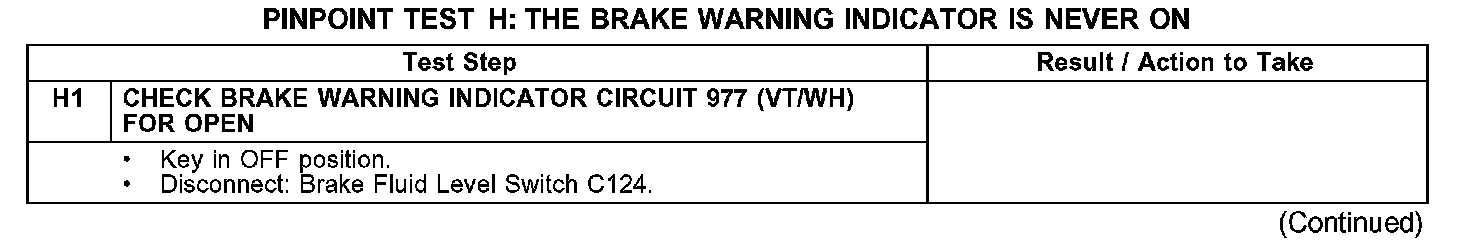

Test H1:

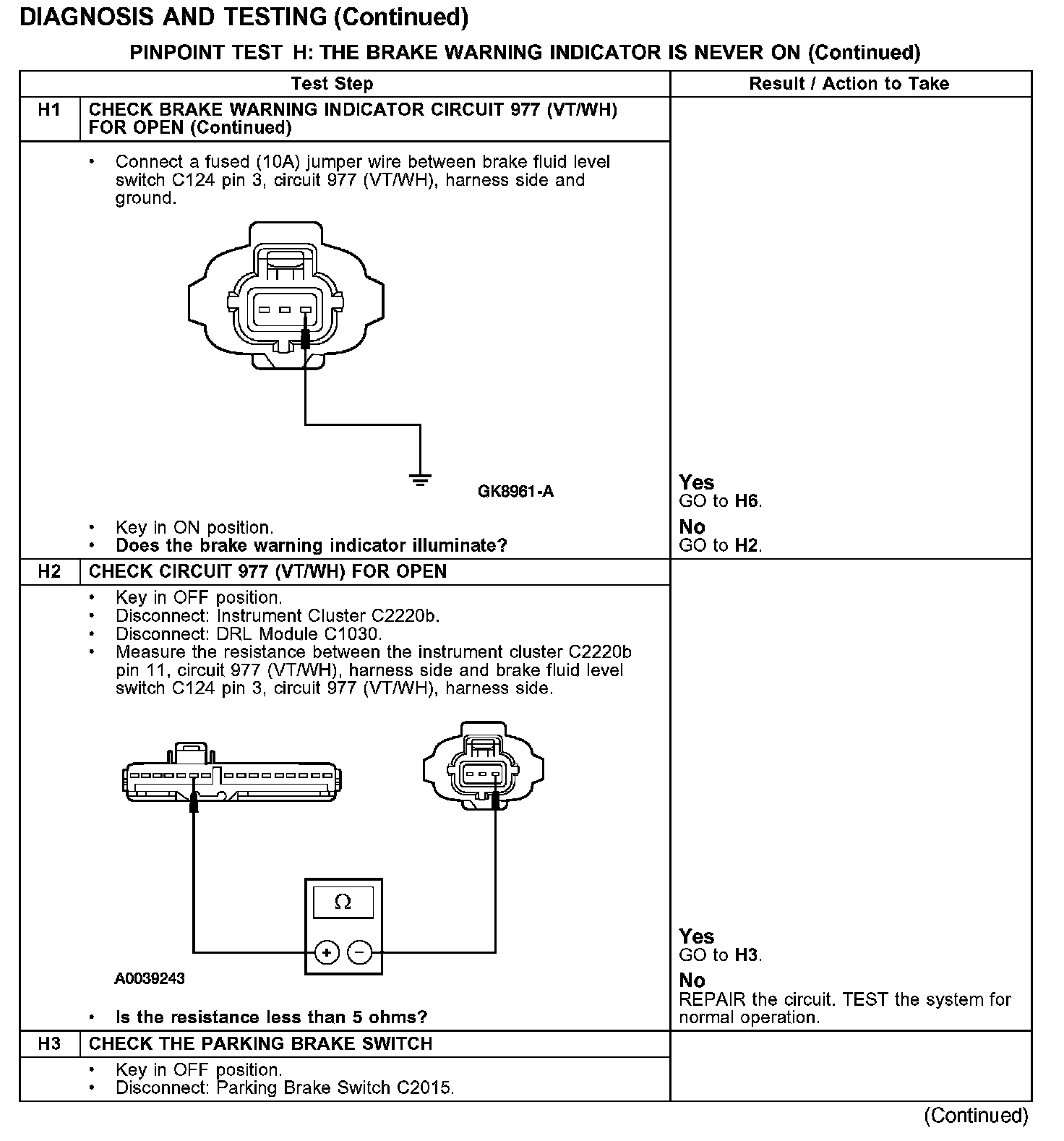

Test H1-H3:

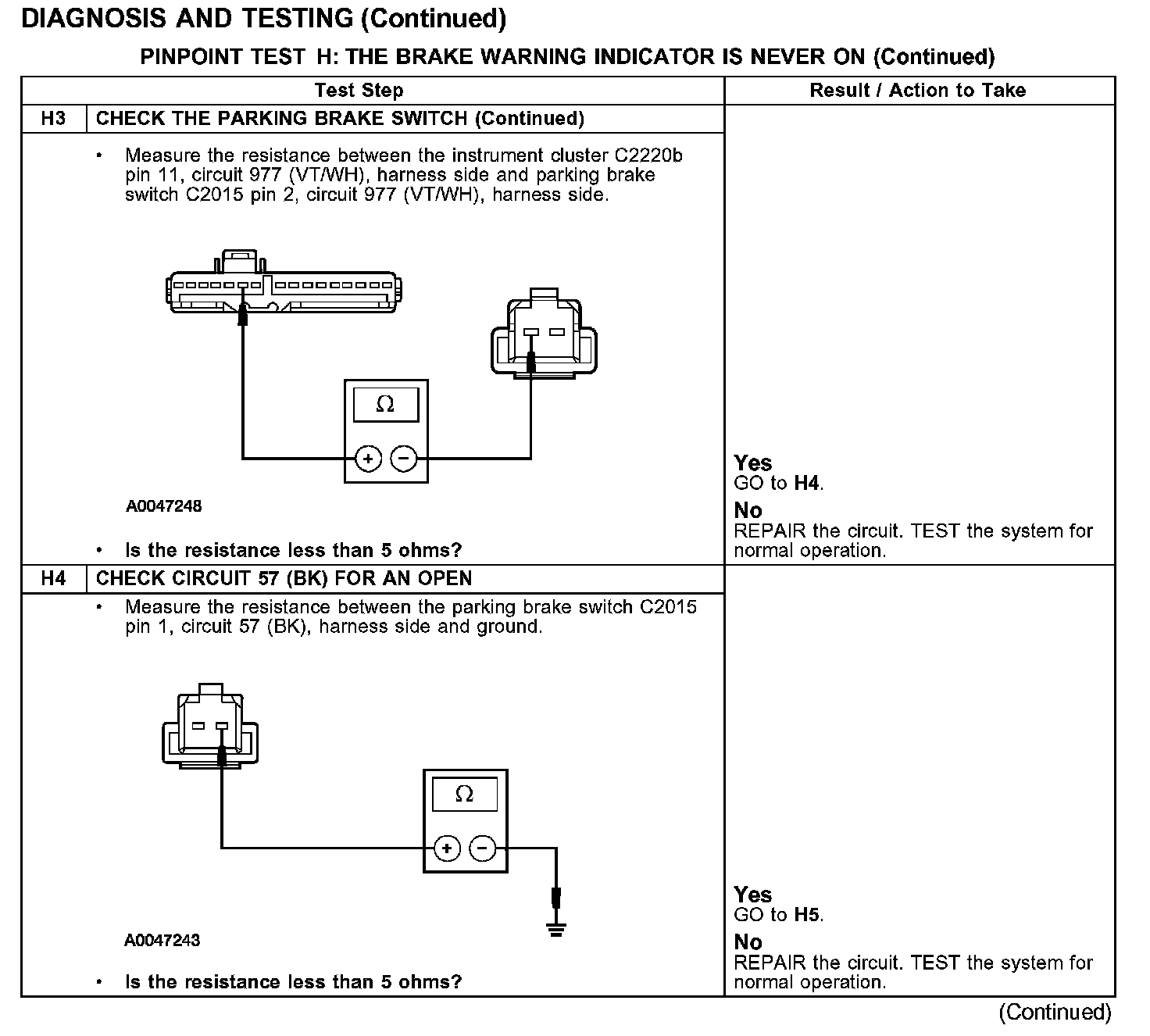

Test H3-H4:

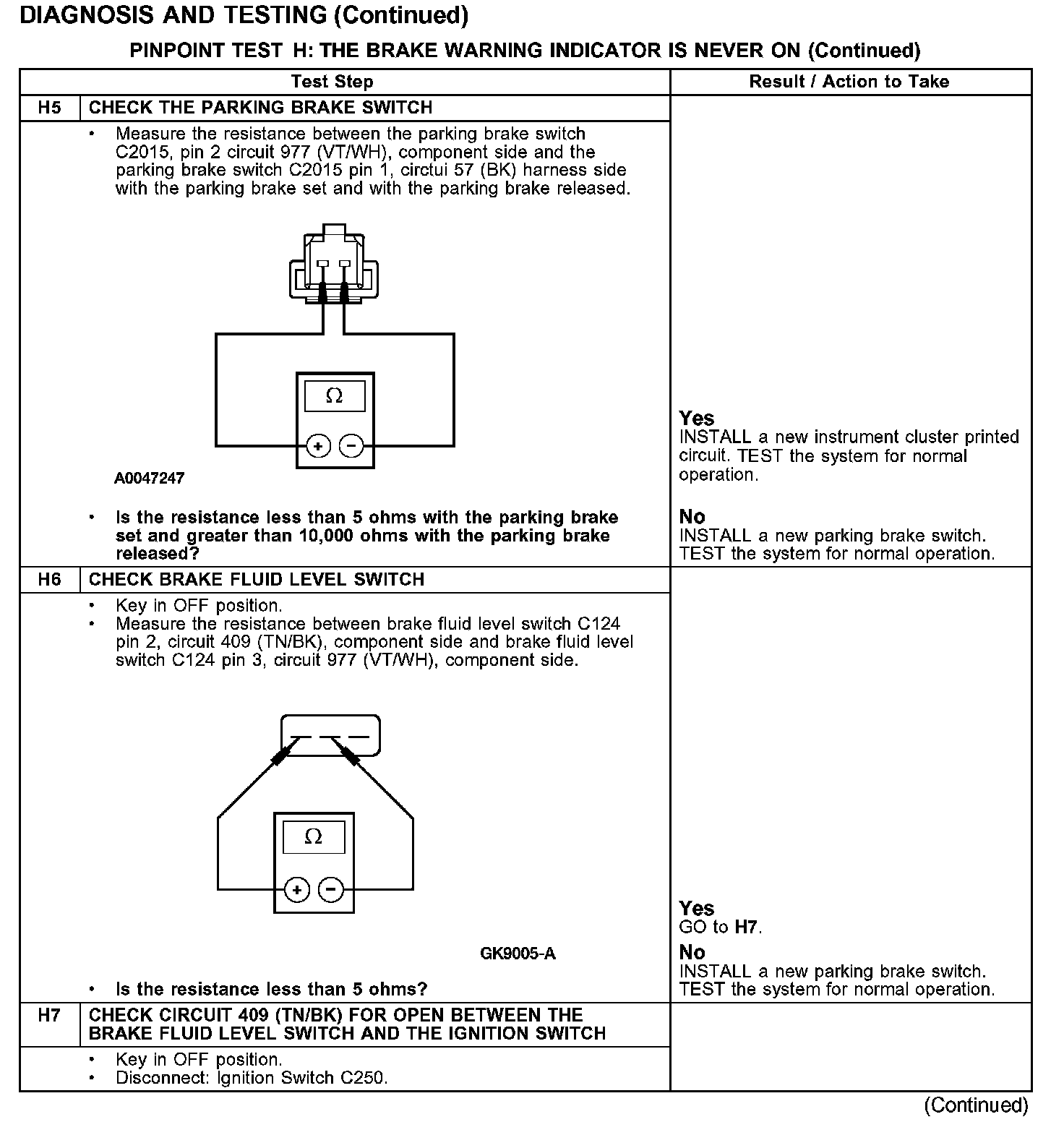

Test H5-H7:

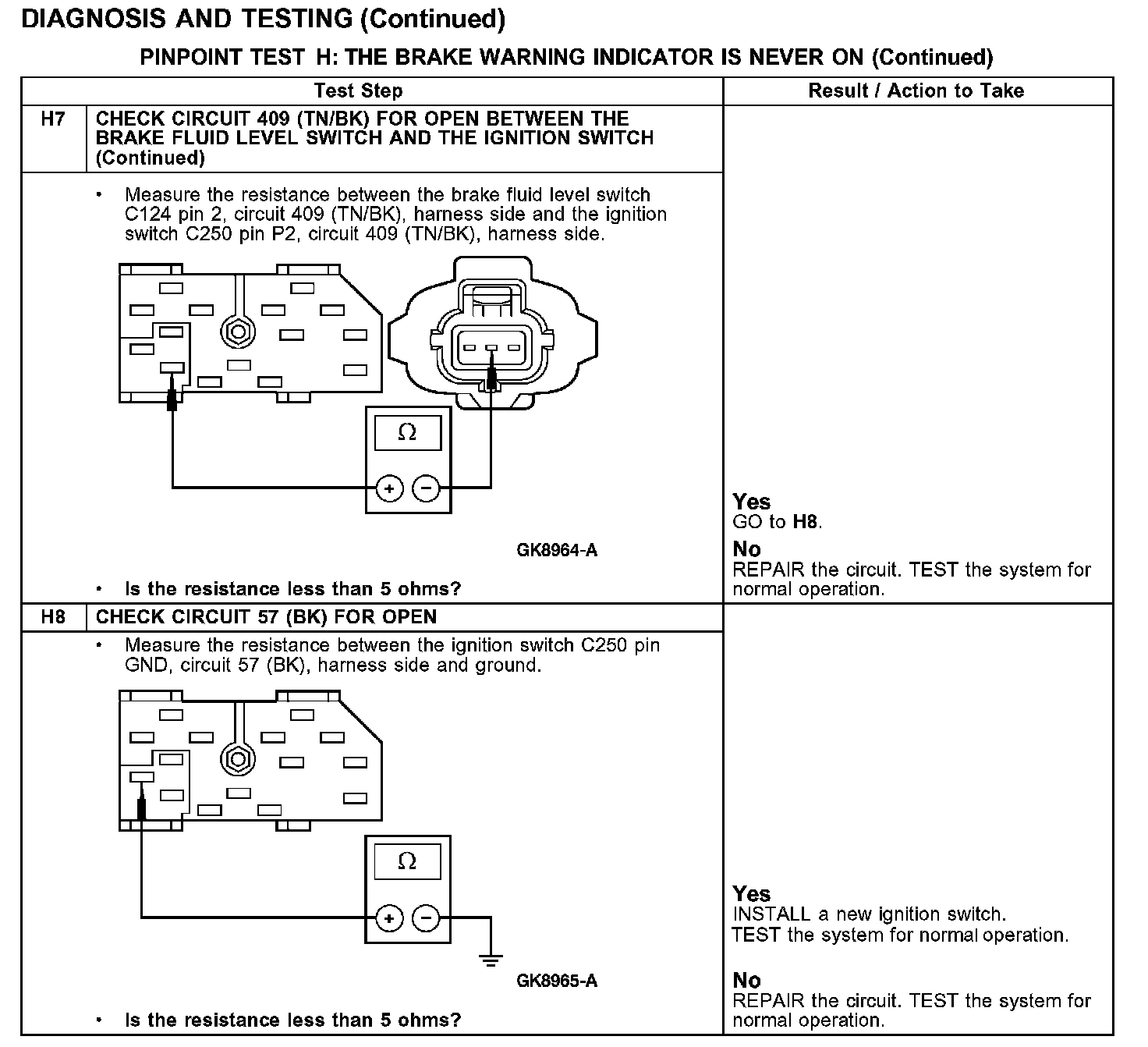

Test H7-H8:
