Instrument Cluster

INSTRUMENT CLUSTER LENS

REMOVAL
1. Remove the instrument cluster.

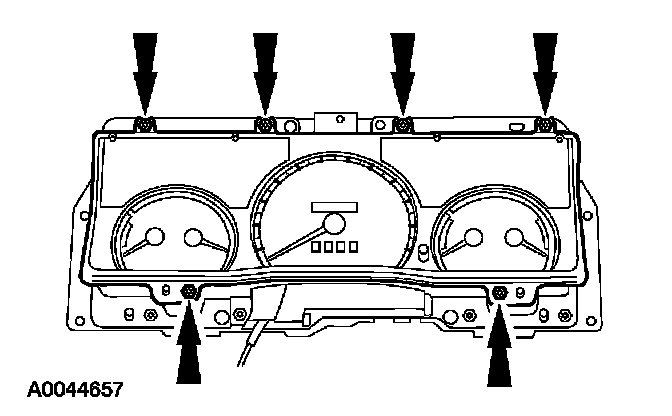

2. NOTE: The Crown Victoria and Grand Marquis cluster is shown. The Marauder is similar.

Remove the retaining screws and remove the cluster lens.

INSTALLATION
1. To install, reverse the removal procedure.
