Conventional

INSTRUMENT CLUSTER

REMOVAL

All vehicles
1. Disconnect the battery ground cable.
2. Remove the instrument cluster finish panel.

Except Marauder

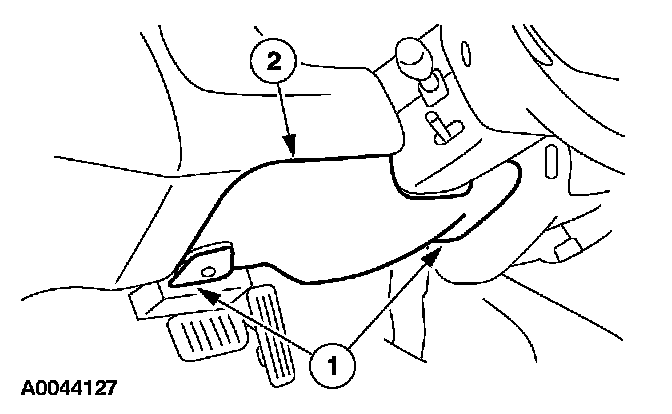

3. Remove the lower steering column cover.
1 Remove the lower steering column cover retaining bolts.
2 Position the parking brake release aside and remove the lower steering column cover.

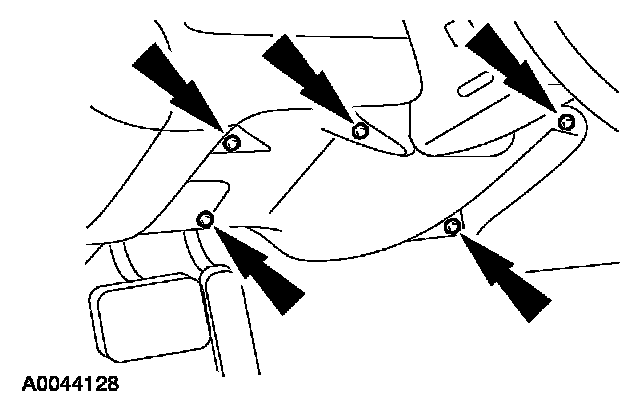

4. Remove the retaining bolts and remove the lower steering column reinforcement.

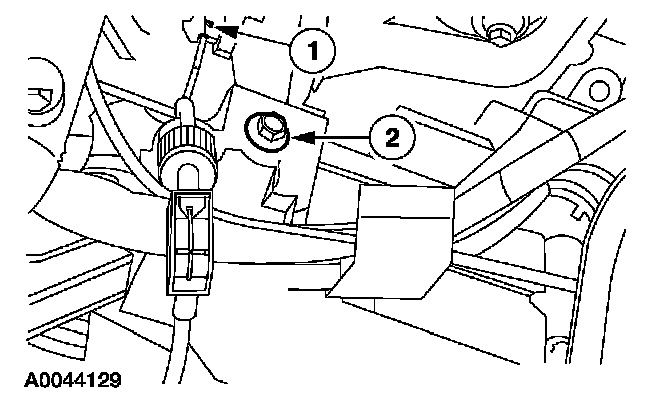

5. Position the transmission range indicator cable out of the way.
1 Disconnect the cable.
2 Remove the retaining screw and position the cable aside.

All vehicles

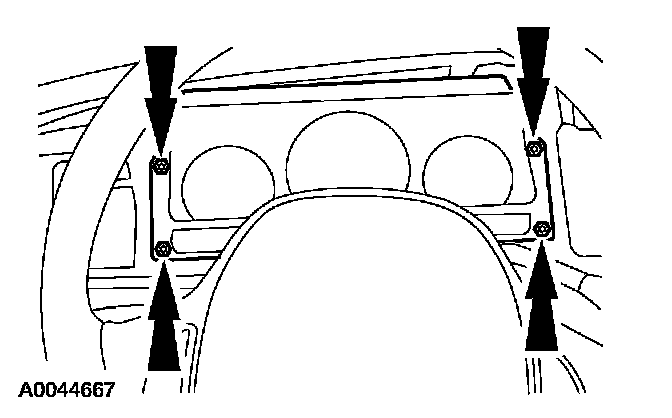

6. Remove the retaining screws and position the instrument cluster aside.

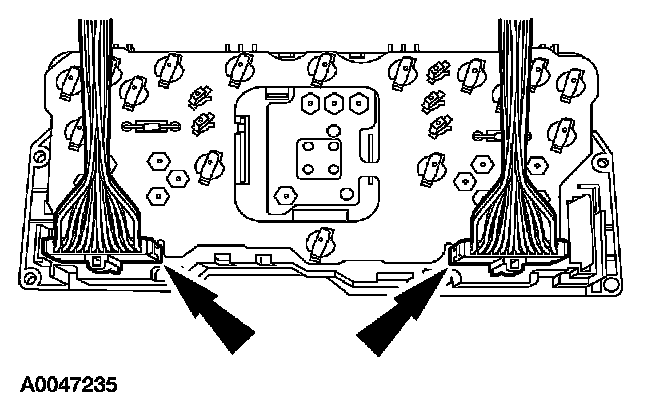

7. Disconnect the electrical connecters.

INSTALLATION
1. To install, reverse the removal procedure.
