Instrument Cluster

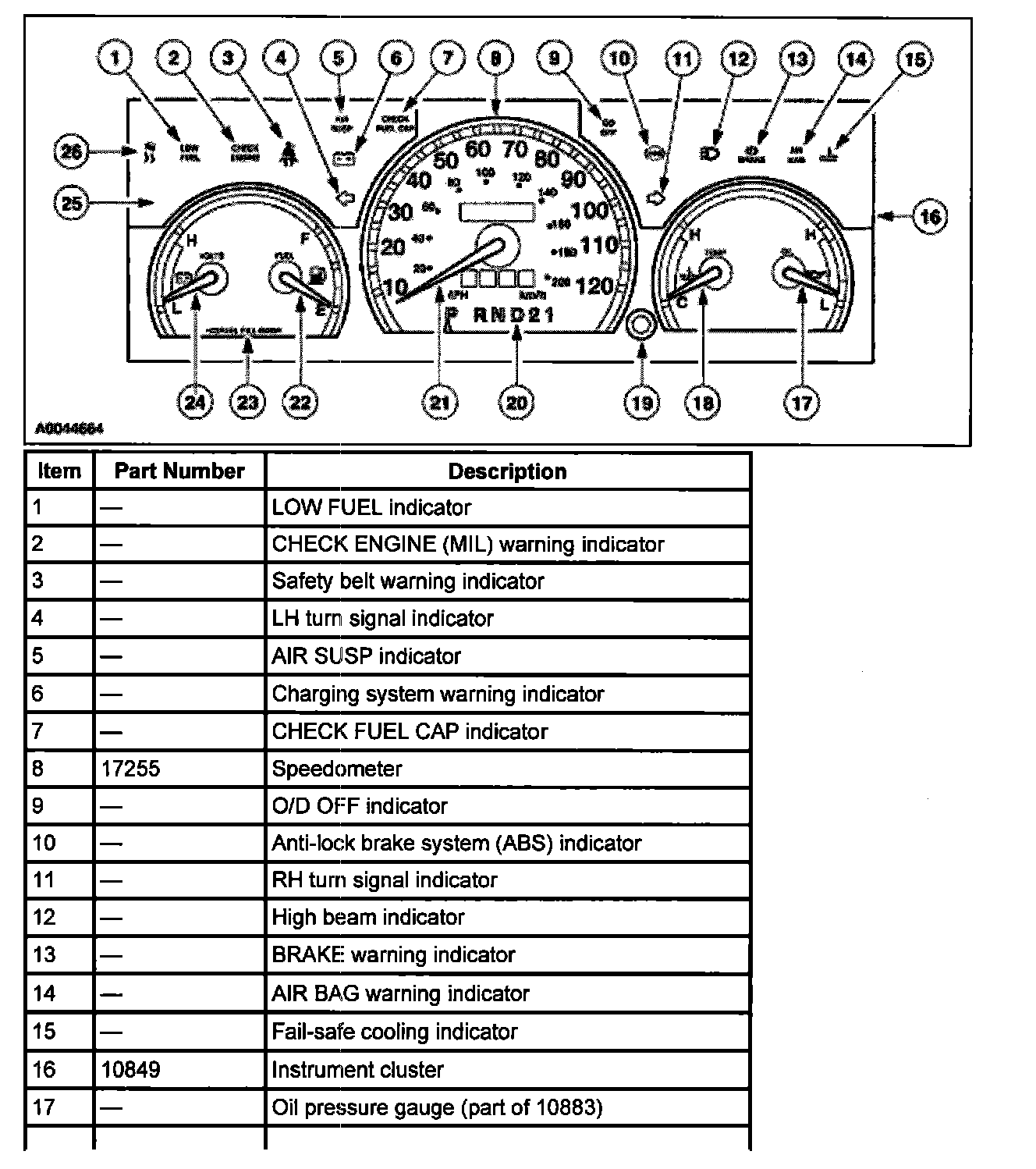

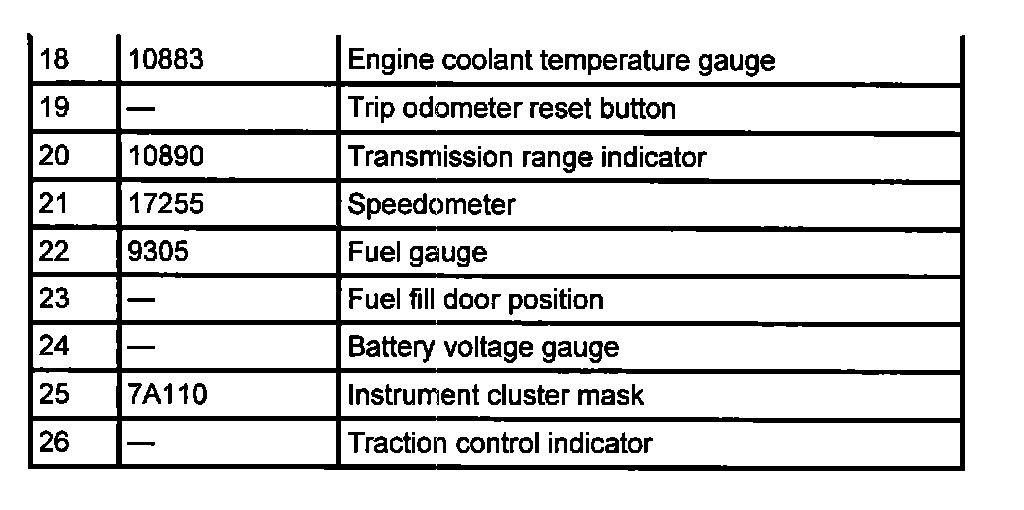

Standard Instrument Cluster:

Standard Instrument Cluster

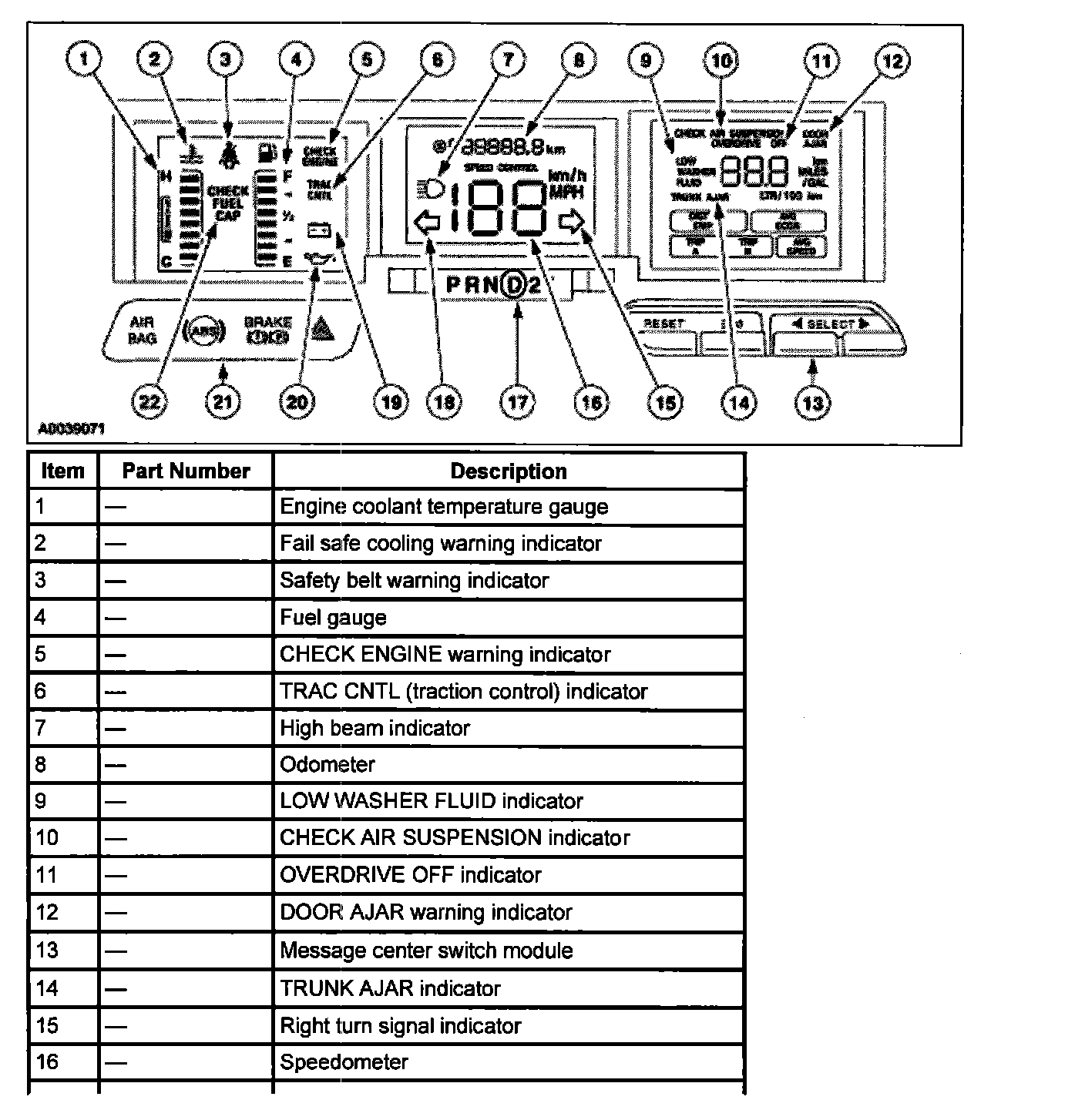

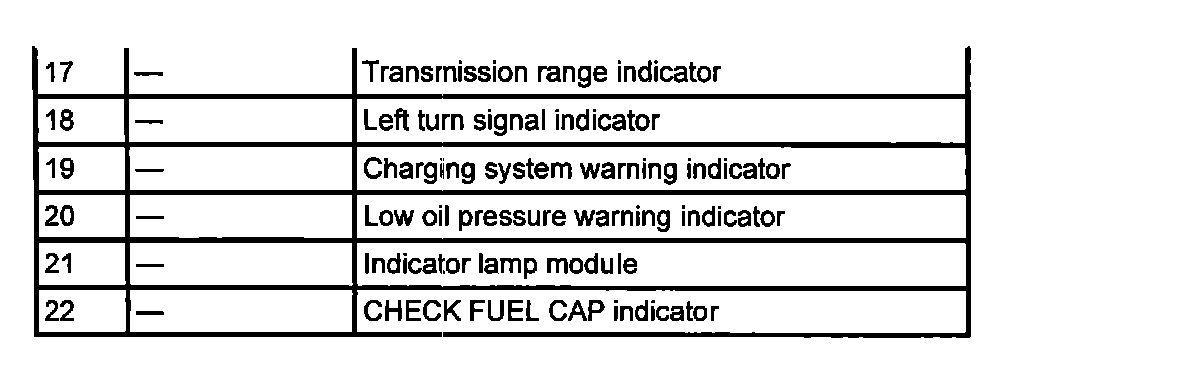

Electronic Instrument Cluster:

Electronic Instrument Cluster

The electronic instrument cluster and an indicator lamp module both provide the driver with information. The indicator lamp module is located in the instrument cluster center finish panel, above and to the left of the steering column. The electronic instrument cluster and indicator lamp module consist of:

Instrument Cluster - Natural Gas Vehicle

NOTE: The natural gas vehicle (NGV) instrument cluster is diagnosed and repaired the same way as the gasoline vehicle conventional instrument cluster.

The NGV instrument cluster consists of the following components:

- speedometer

- engine coolant temperature and oil pressure gauge assembly

- fuel and battery voltage gauge assembly

- transmission range indicator

- warning indicators

- instrument cluster printed circuit

- low fuel level warning switch

For additional information, refer to Standard Instrument Cluster.
