PINPOINT TEST C: THE MESSAGE CENTER IS NOT OPERATING CORRECTLY - WITH OVERHEAD CONSOLE

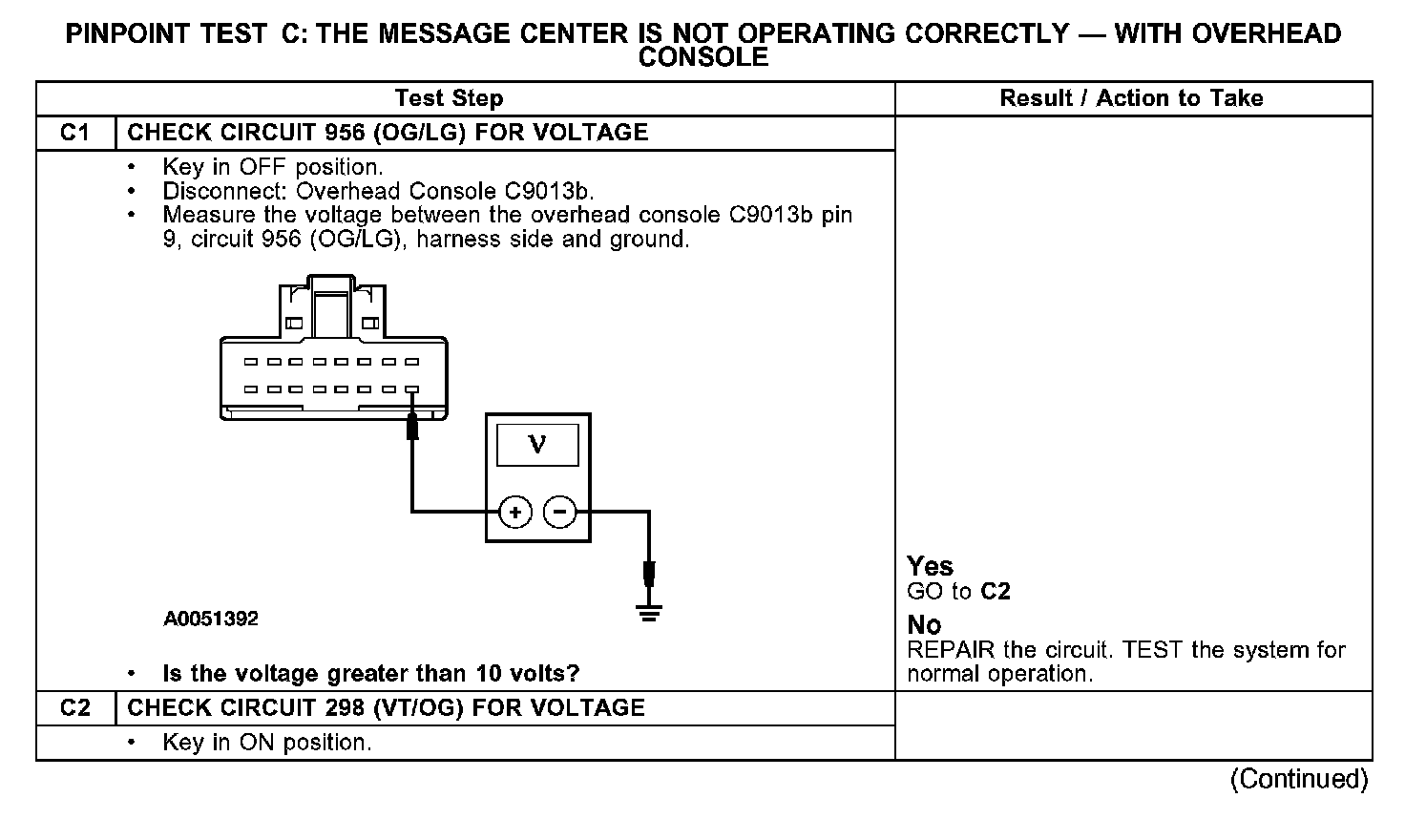

Test C1-C2:

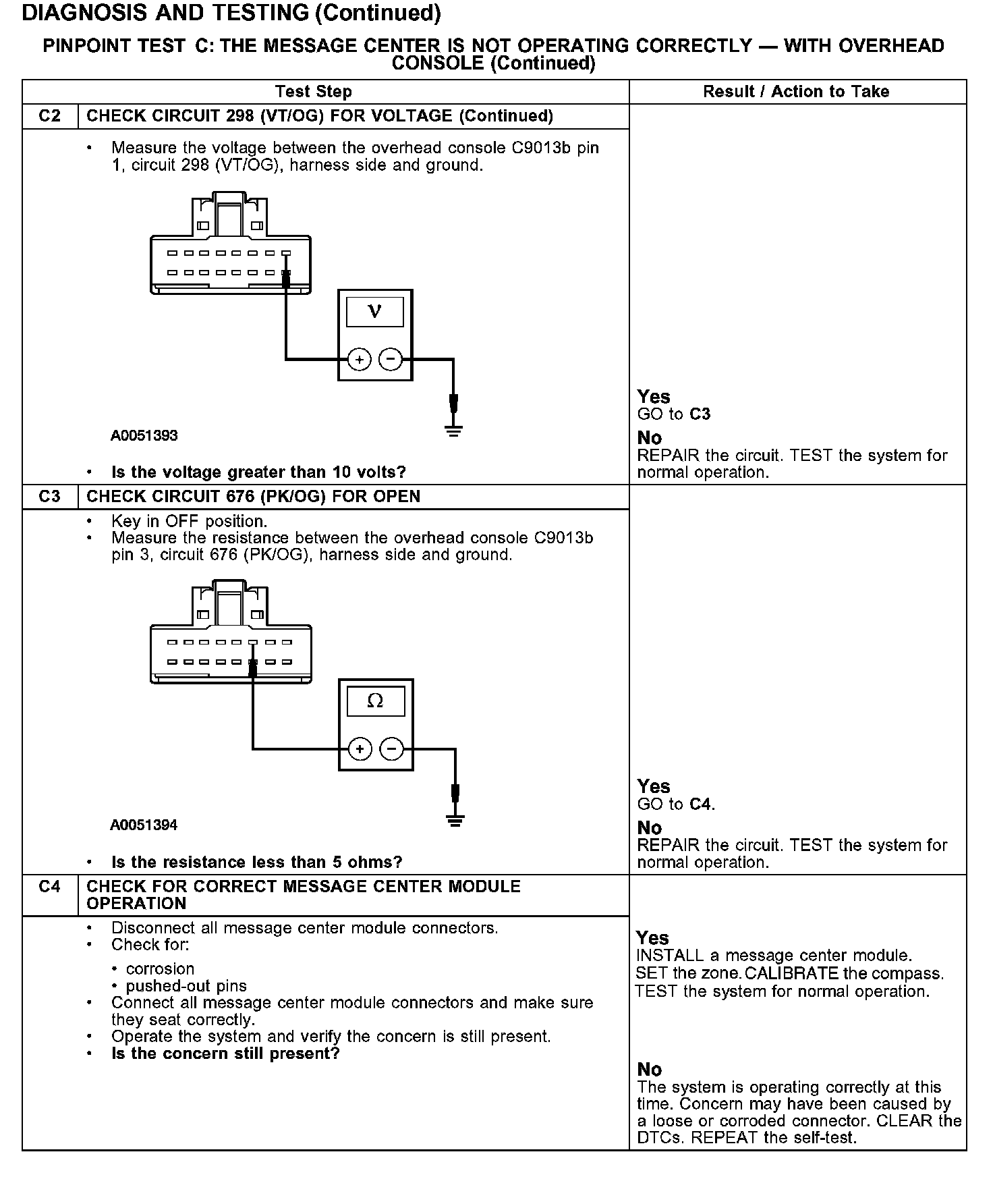

Test C2-C4:
