Message Center Switch

SWITCH - MESSAGE CENTER

REMOVAL
1. Remove the instrument cluster finish panel.







2. NOTE: The illumination bulbs are replaceable.

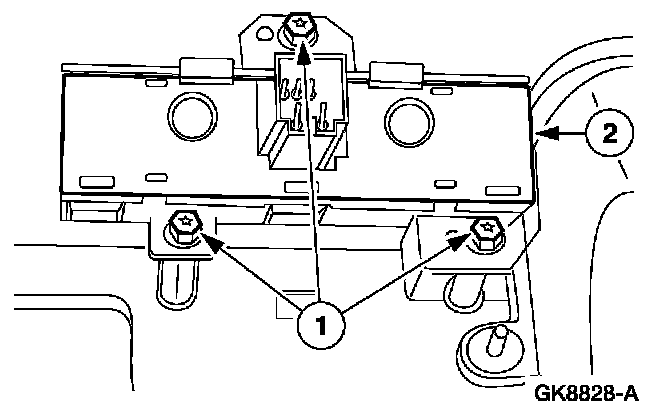

Remove the message center switch.
1 Remove the screws.
2 Remove the message center switch.
- Install new illumination bulbs as necessary.

INSTALLATION
1. To install, reverse the removal procedure
