Test O
Test O
PINPOINT TEST O: THE
BLOWER MOTOR
DOES NOT OPERATE CORRECTLY - MANUAL CLIMATE CONTROL

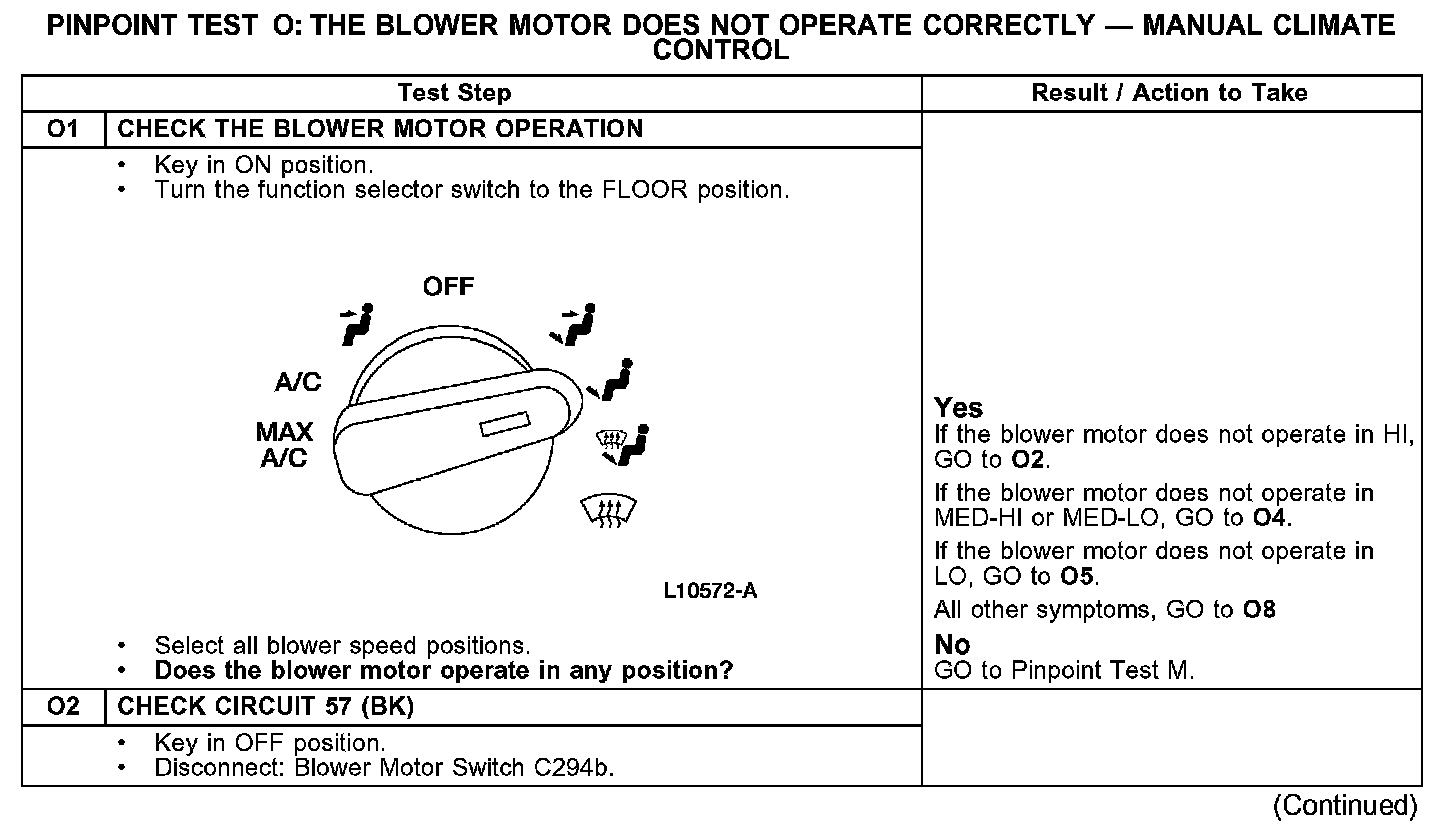

Test O1-O2:

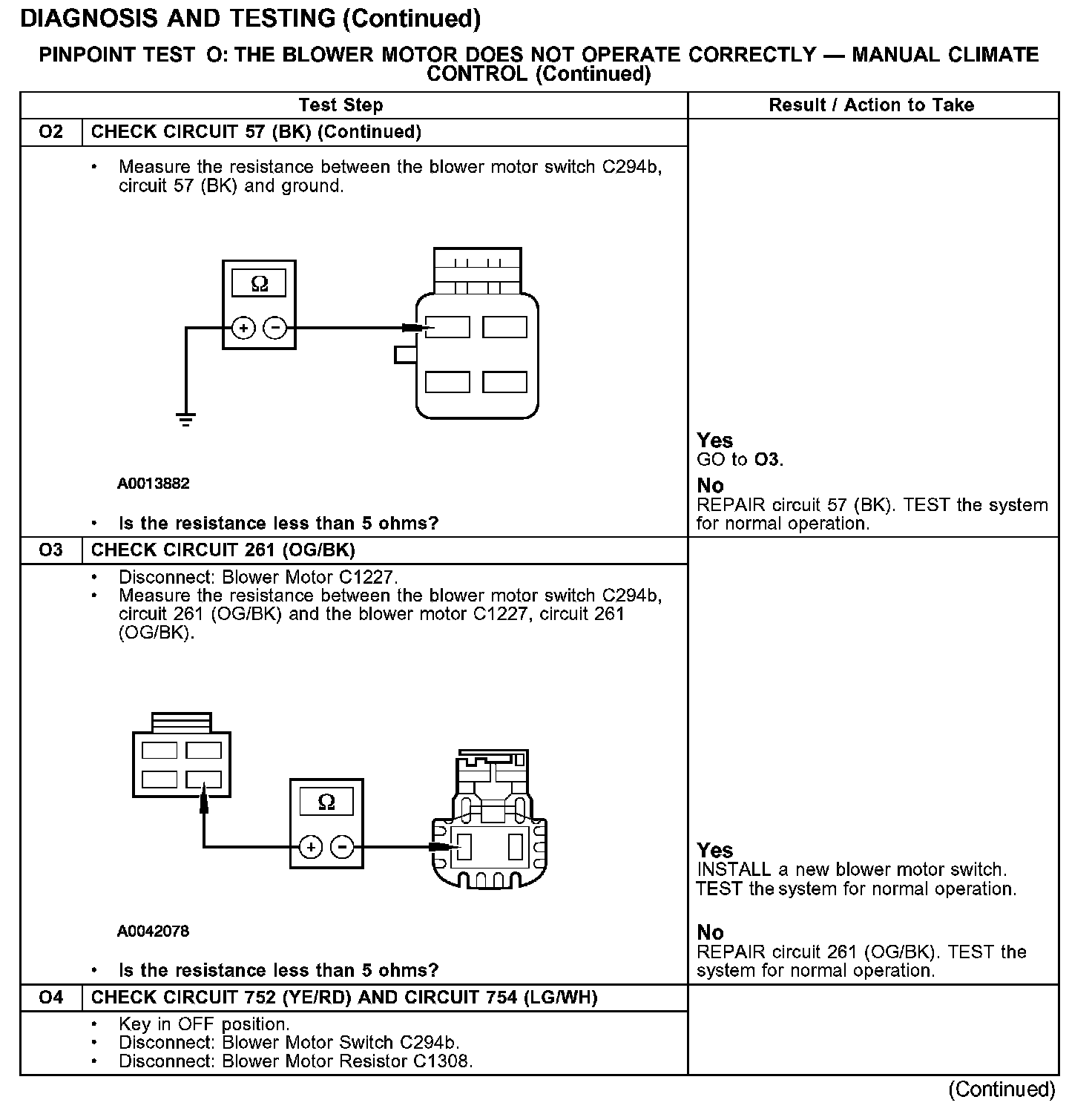

Test O2-O4:

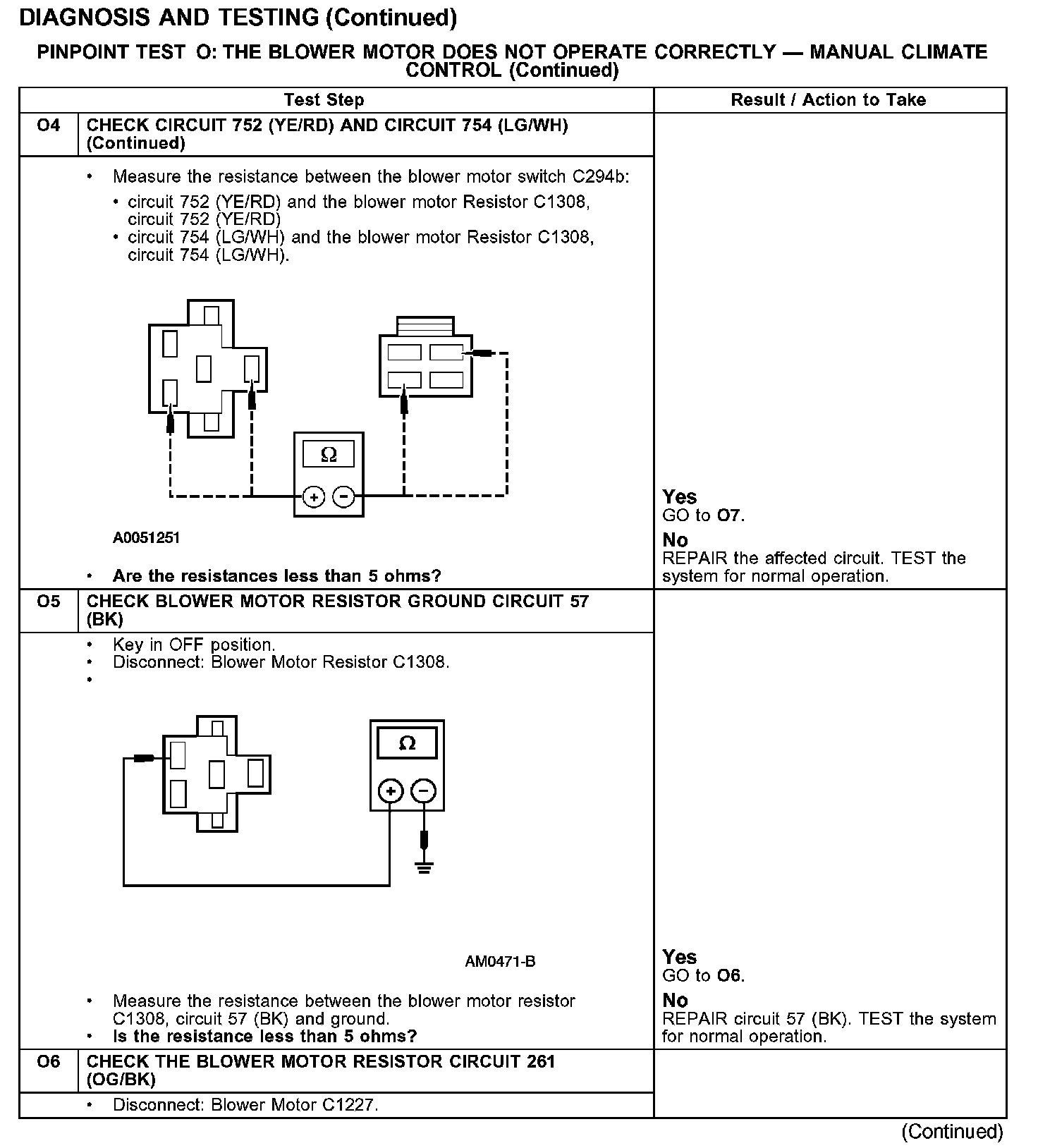

Test O4-O6:

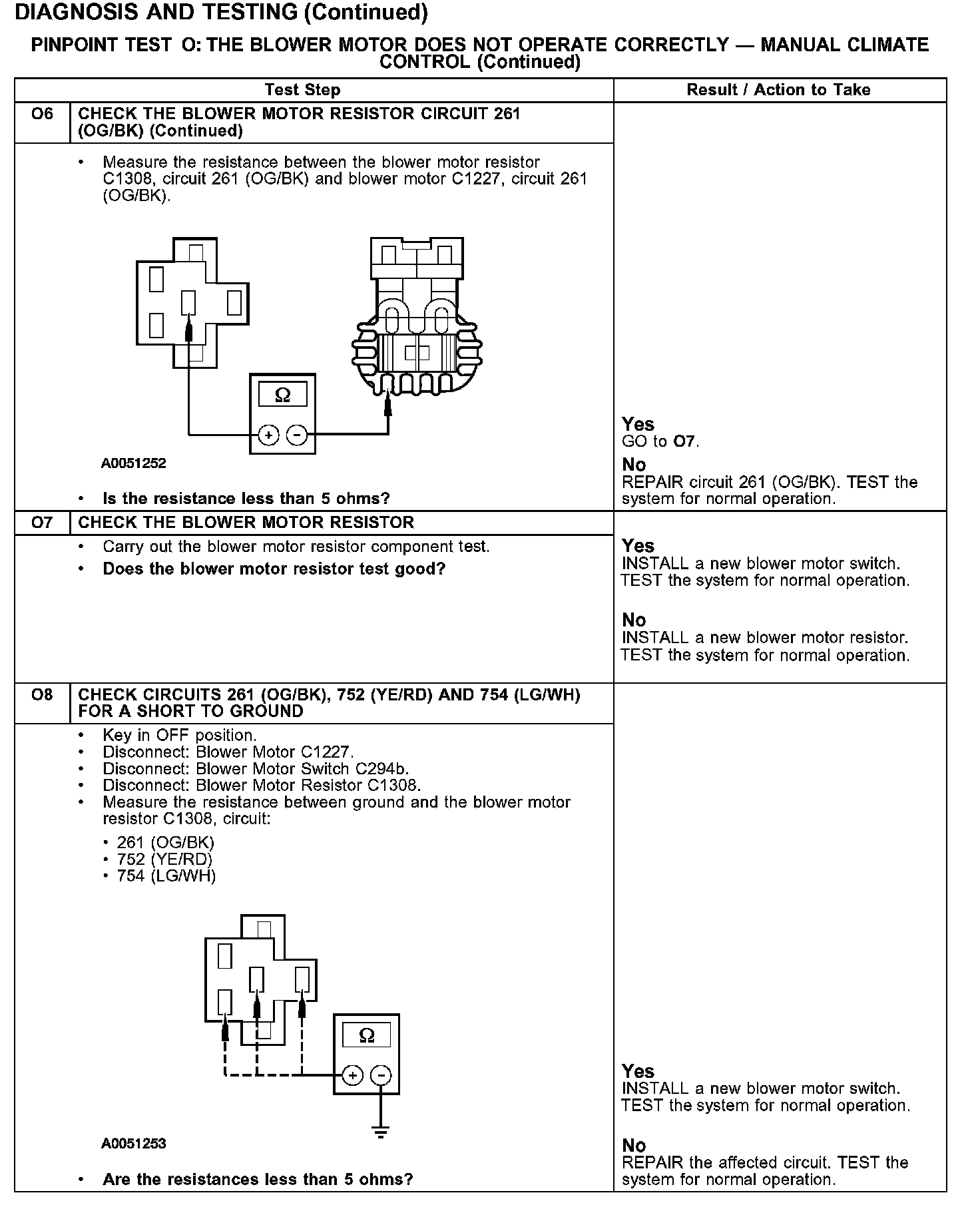

Test O6-O8:
