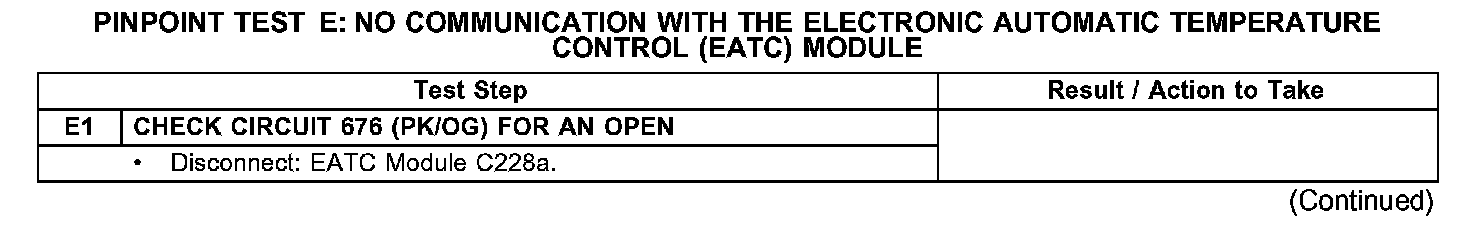

PINPOINT TEST E: NO COMMUNICATION WITH THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE

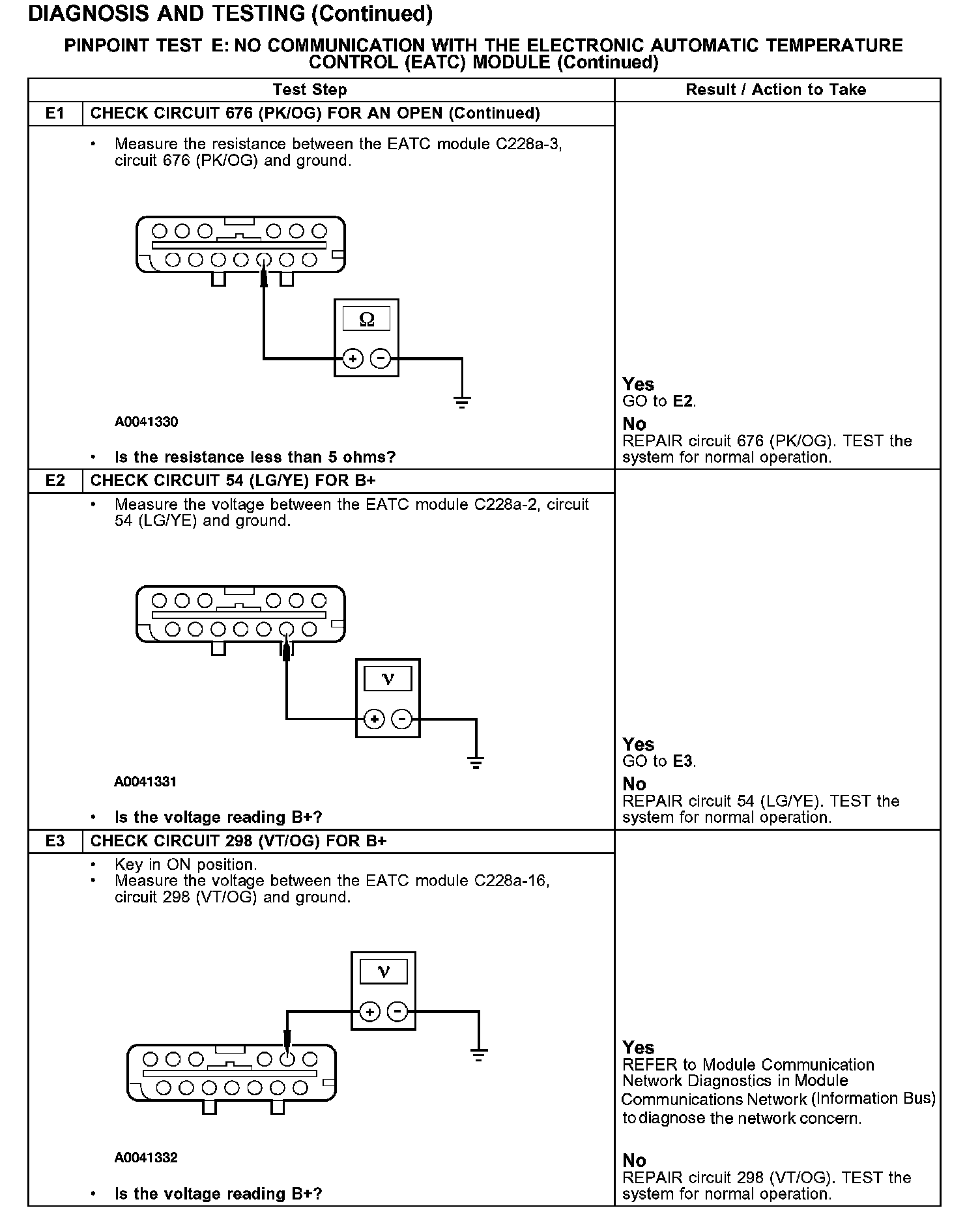

Test E1:
Test E1-E3:
