Manual

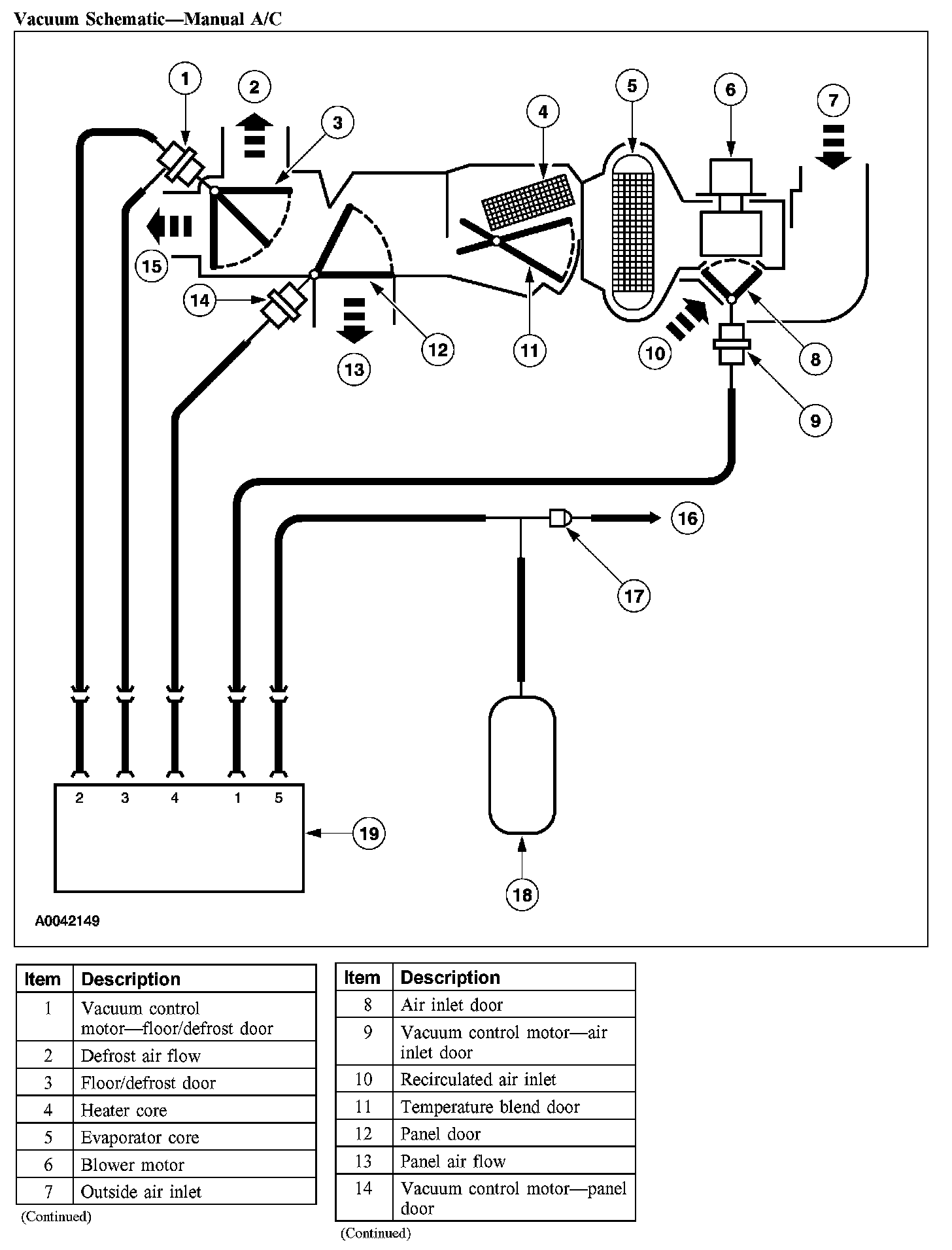

Vacuum Schematic - Manual A/C, Part 1:

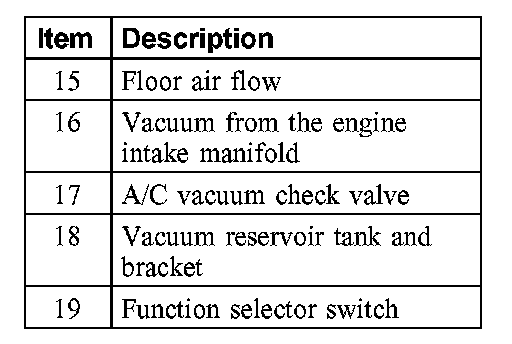

Vacuum Schematic - Manual A/C, Part 2:

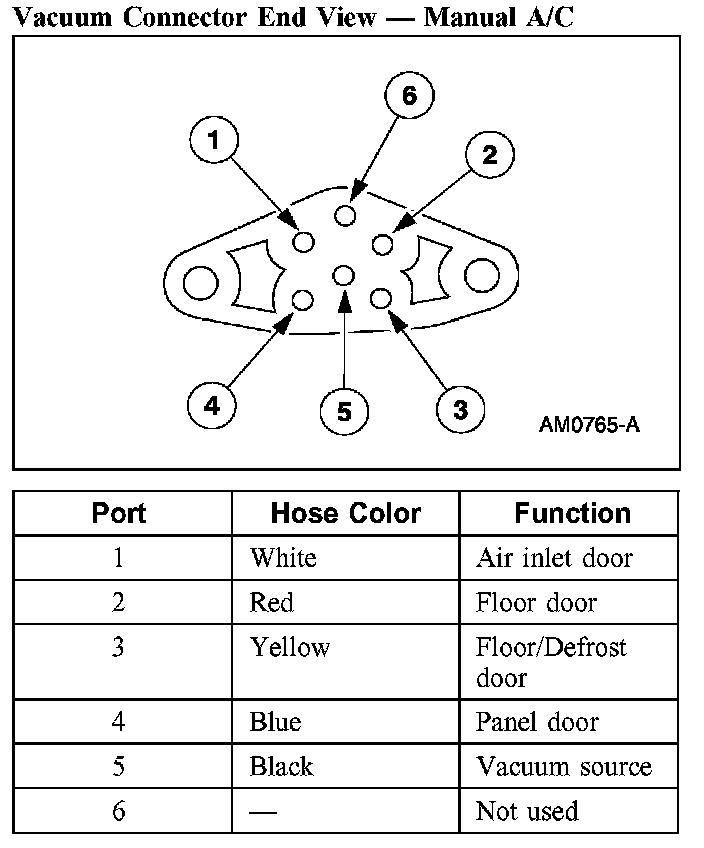

Vacuum Connector End View - Manual A/C:

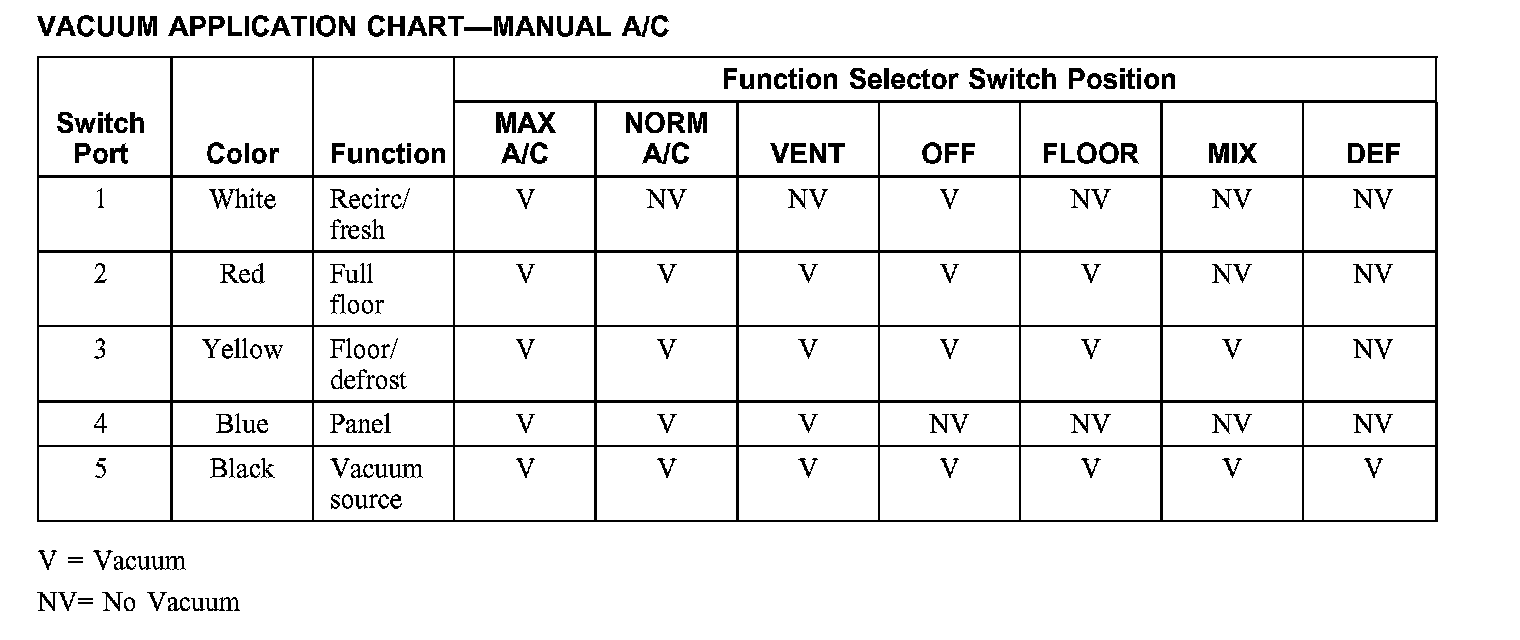

Vaccum Application Chart - Manual A/C:
